Symptom Chart: FEMC201a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

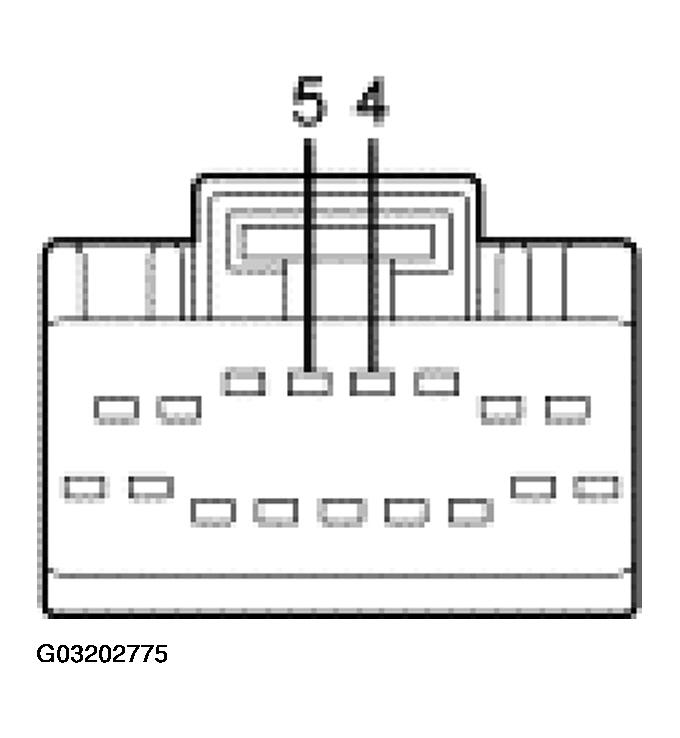

CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 31S-LG18(BK/YE) RH front turn signal lamp control ground circuit | Less than 5 ohms between the FEM and the RH front turn signal lamp. Greater than 10 volts with the ignition switch ON. |
| 5 | 31S-LG11 (BK/WH) LH front turn signal lamp control ground circuit | Less than 5 ohms between the FEM and the LH front turn signal lamp. Greater than 10 volts with the ignition switch ON. |
