REM C420e

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

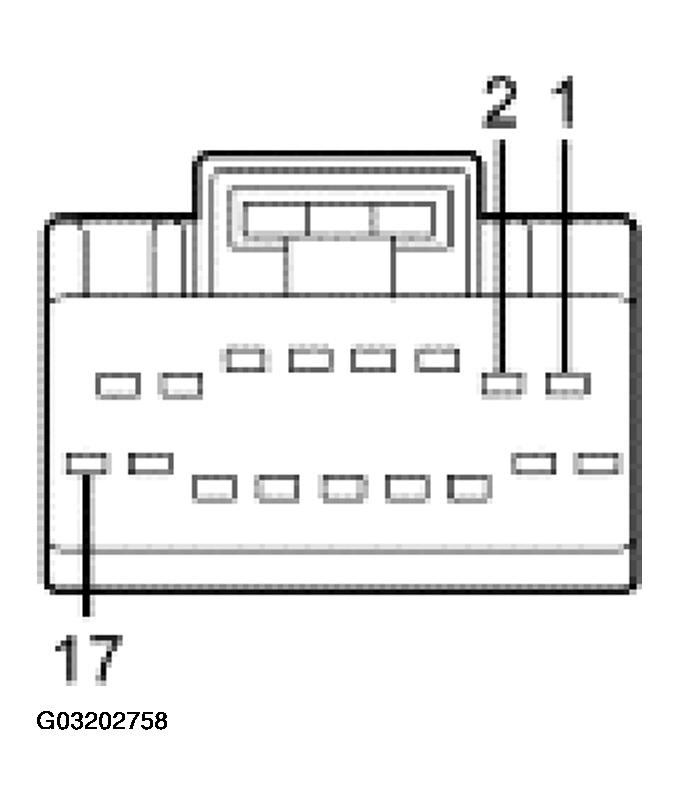

Fig 1: Identifying REM C420E Pins
G03202758Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 31S-LG21 (BK/GN) RH rear stoplamp control ground circuit 0 voltage, less than 5 ohms between the REM and the RH rear stoplamp. Greater than 10 volts when the ignition switch is ON.
2 31S-LG14(BK/OG)LH rear stoplamp control ground circuit 0 voltage, less than 5 ohms between the REM and the LH rear stoplamp. Greater than 10 volts when the ignition switch is ON.
17 31S-LG6 (BK/YE) high mounted stoplamp control ground circuit 0 voltage, less than 5 ohms between the REM and the high mounted stoplamp. Greater than 10 volts when the ignition switch is ON.
