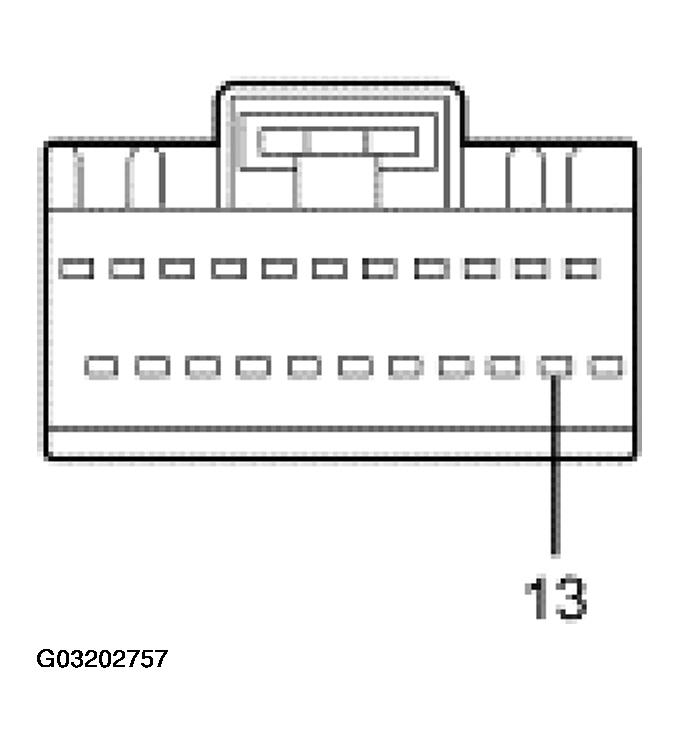

REM C420b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 13 | 29S-DK30 (OG) BPP switch output circuit | 0 voltage, Greater than 10 volts when the brake pedal is applied. Less than 5 ohms between the REM and the BPP switch (if equipped without IVD). Less than 5 ohms between the REM and the IVD module (if equipped with IVD). Greater than 10,000 ohms between the REM and ground. |
