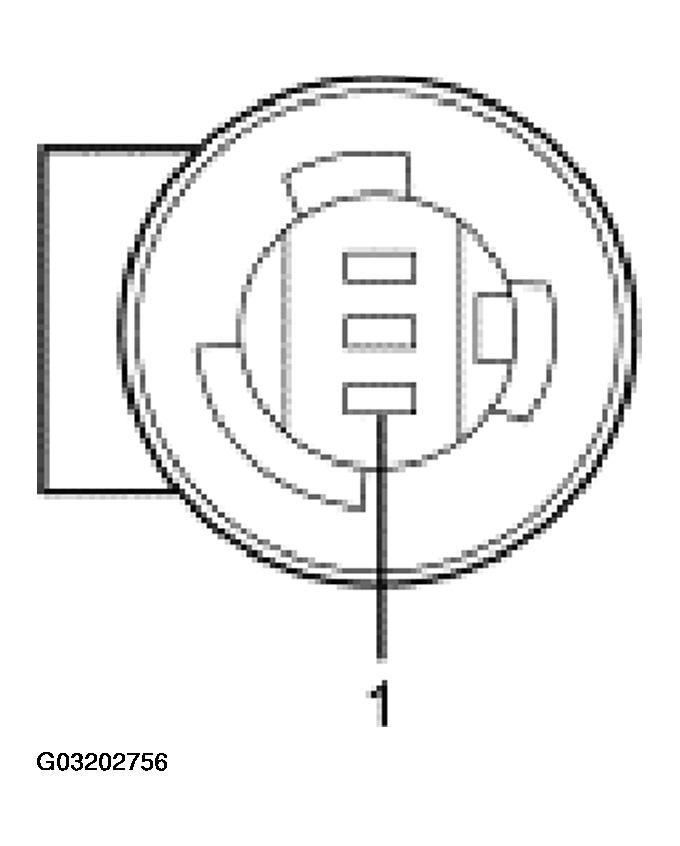

LH Combination Lamp C414, RH Combination Lamp C417
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
29S-LF23 (OG) rear lamp switched power supply circuit |
Greater than 10 volts with the ignition ON. |
