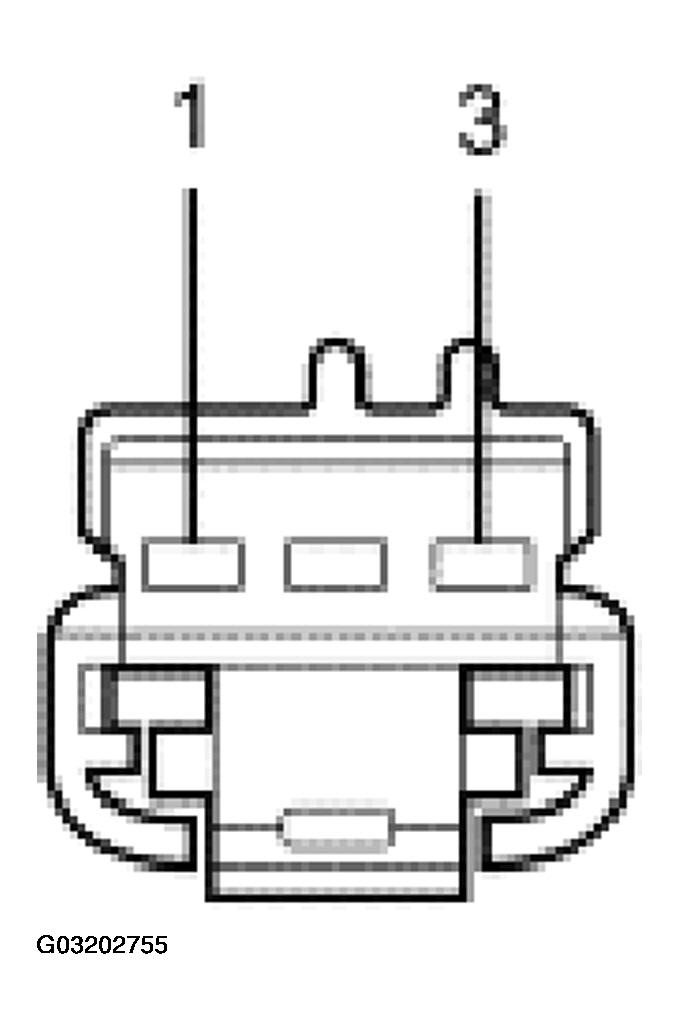

High Mounted Stoplamp C302
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 31S-LG6A (BK/YE) high mounted stoplamp control ground circuit | 0 voltage, less than 5 ohms between the high mounted stoplamp and the REM. |
| 3 | 29S-LG6A (OG/YE) switched power supply circuit | Greater than 10 volts with the ignition switch ON. |
