REM C420e

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

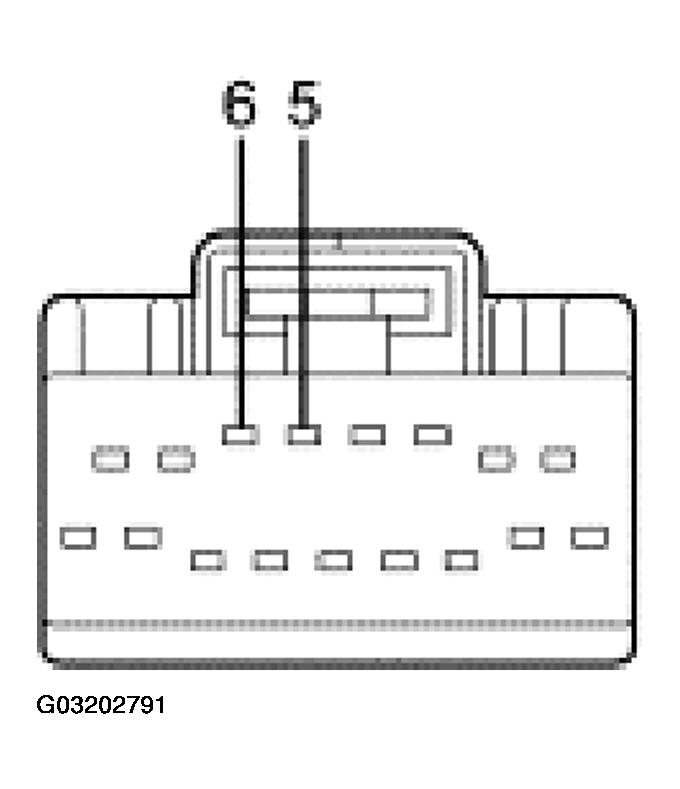

Fig 1: Identifying REM C420E
G03202791Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
5 31S-LF20 (BK/OG) RH rear parking lamp control ground circuit Less than 5 ohms between the FEM and the RH rear parking lamp. Greater than 10 volts with the ignition ON.
6 31S-LF11 (BK/WH) LH rear parking lamp control ground circuit Less than 5 ohms between the FEM and the LH rear parking lamp. Greater than 10 volts with the ignition ON.
