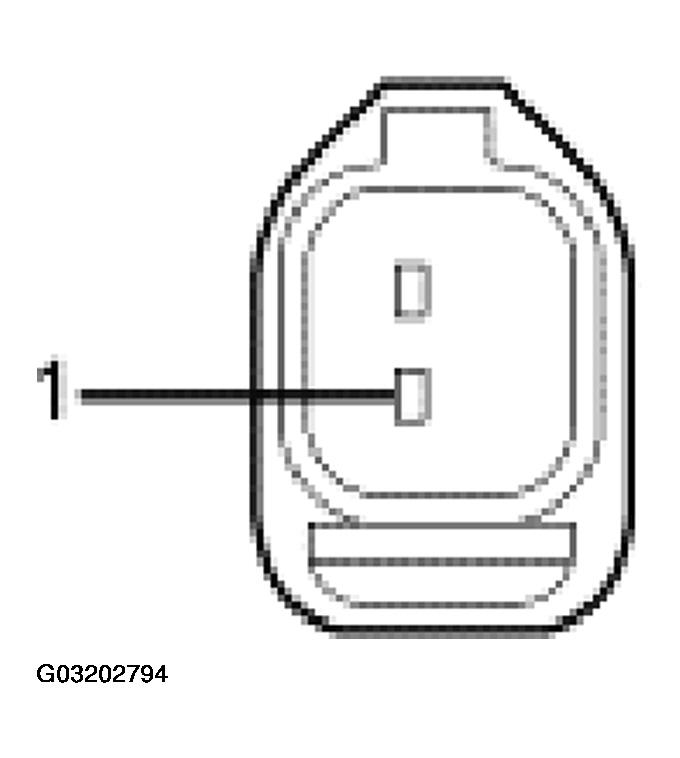

LH License Lamp C452, RH License Lamp C462
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (C452) | 29S-LF21 (OG/BK) switched B+ supply circuit | Greater than 10 volts with the ignition switch ON. |
| 1 (C462) | 29S-LF22 (OG/BK) switched B+ supply circuit | Greater than 10 volts with the ignition switch ON. |
