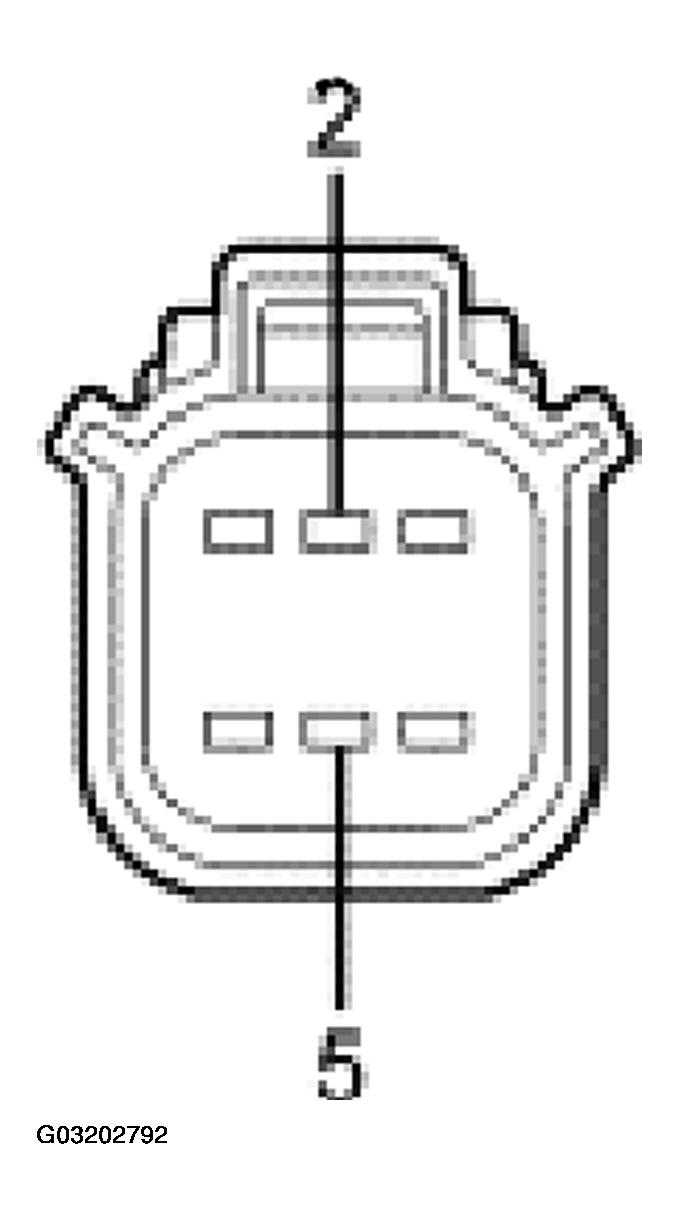

LH Headlamp, c1021, RH Headlamp C1040
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2(C1021) | 29S-LF8 (OG) switched B+ supply circuit | Greater than 10 volts with the ignition ON. |
| 5(C1021) | 31S-LF8 (BK/OG) side marker control ground circuit | 0 voltage, less than 5 ohms between the headlamp and the FEM. Greater than 10,000 ohms between the headlamp and ground. |
| 2(C1041) | 29S-LF17 (OG/WH) switched B+ supply circuit | Greater than 10 volts with the ignition ON. |
| 5(C1041) | 31S-LF17 (BK/WH) side marker control ground circuit | 0 voltage, less than 5 ohms between the headlamp and the FEM. Greater than 10,000 ohms between the headlamp and ground. |
