FEM C201c

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

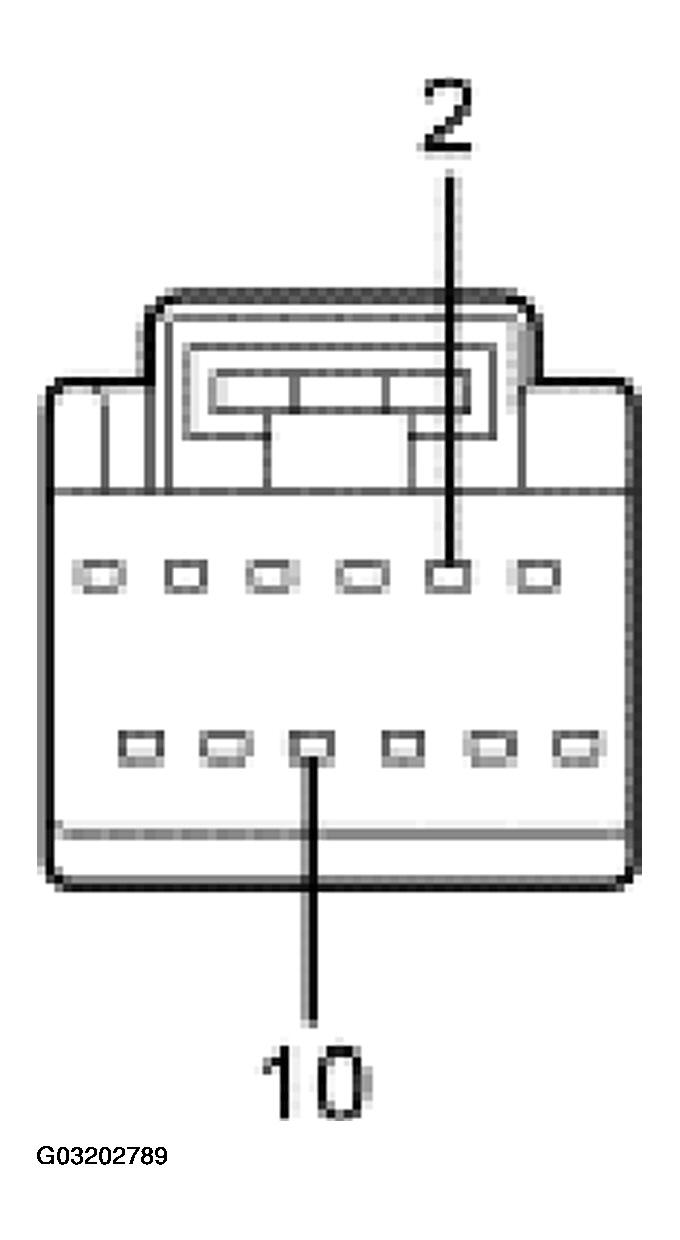

Fig 1: Identifying FEM C201C
G03202789Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 31S-LF7 (BK/BU) LH front parking lamp control ground circuit Less than 5 ohms between the FEM and the LH parking marker lamp. Greater than 10 volts with the ignition ON.
10 31S-LF16(BK/RD) RH front parking lamp control ground circuit Less than 5 ohms between the FEM and the RH front parking lamp. Greater than 10 volts with the ignition ON.
