SSP1 Relay, SSP2 Relay, SSP3 Relay, SSP4 Relay
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

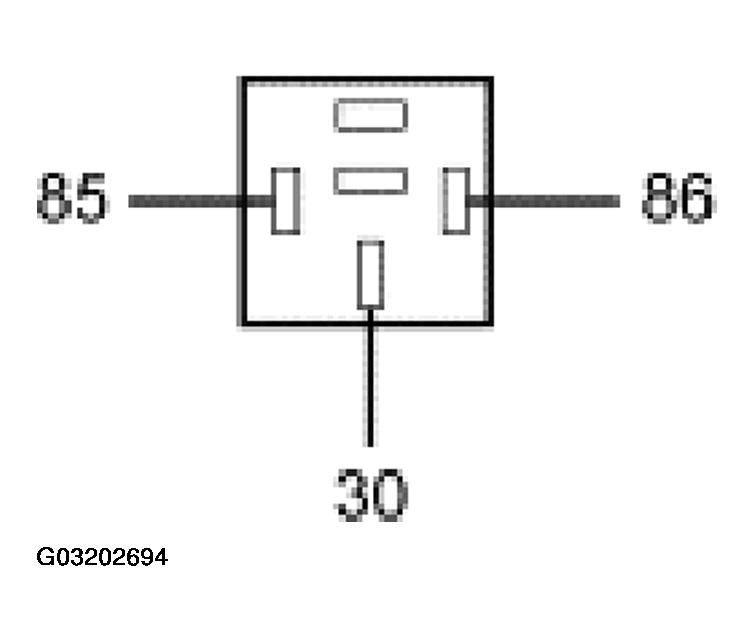

CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 30 (C441) | 30-DG52 (RD/BU) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 85 (C441) | 31S-DG51 (BK/YE) relay coil control ground | 0 voltage, less than 5 ohms between the relay and the FEM or REM. Less than 5 ohms between the relay and other SSP relays. |
| 86 (C441) | 30-DG51 (RD/YE) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 30 (C442) | 30-DG54 (RD/GN) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 85 (C442) | 31S-DG53 (BK/OG) relay coil control ground | 0 voltage, less than 5 ohms between the relay and the FEM or REM. Less than 5 ohms between the relay and other SSP relays. |
| 86 (C442) | 30-DG53 (RD/OG) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 30 (C444) | 30-DG56 (RD/WH) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 85 (C444) | 31S-DG55 (BK/RD) relay coil control ground | 0 voltage, less than 5 ohms between the relay and the FEM or REM. Less than 5 ohms between the relay and other SSP relays. |
| 86 (C444) | 30-DG55 (RD/BK) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 30 (C445) | 30-DG58 (RD/BU) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
| 85 (C445) | 31S-DG57 (BK/YE) relay coil control ground | 0 voltage, less than 5 ohms between the relay and the FEM or REM. Less than 5 ohms between the relay and other SSP relays. |
| 86 (C445) | 30-DG57 (RD/YE) B+ power supply circuit | Greater than 10 volts with the ignition in any position. |
