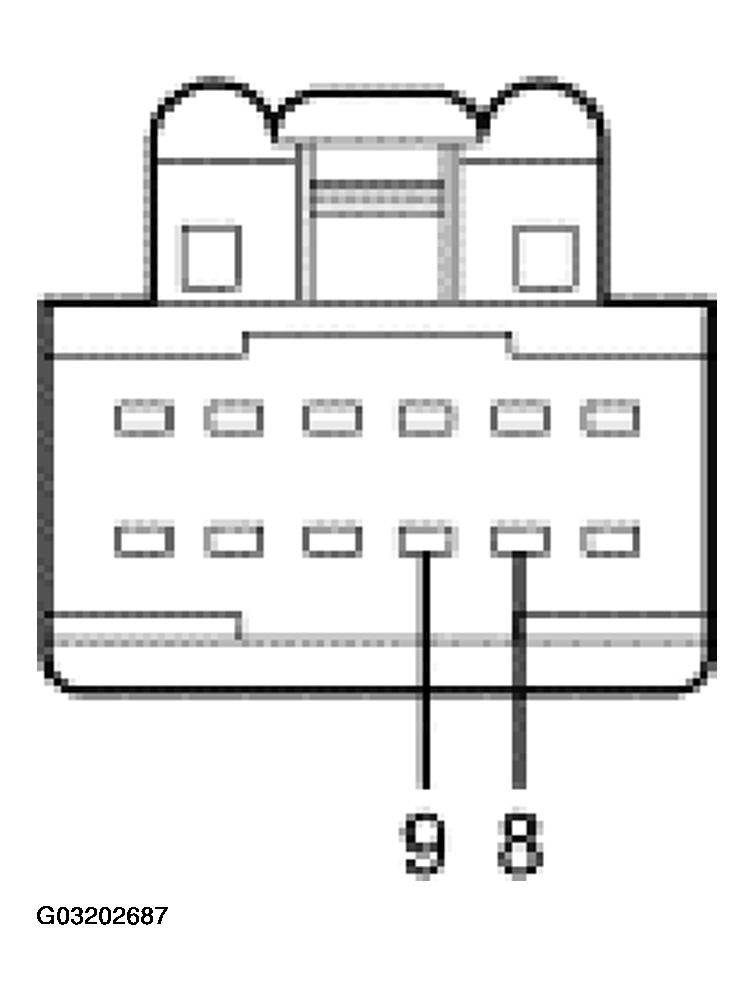

Multifunction Switch C202
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 8 | 9-LG43 (BN/WH) multifunction switch return signal | 0 voltage, less than 5 ohms between the multifunction switch and the instrument cluster. Greater than 10,000 ohms between the multifunction switch and ground. |
| 9 | 8-LE14 (WH/BU) instrument cluster high beam request signal | Approximately 5 volts when the SSP relays are energized, less than 5 ohms between multifunction switch and the instrument cluster. Greater than 10,000 ohms between the multifunction switch and ground. |
