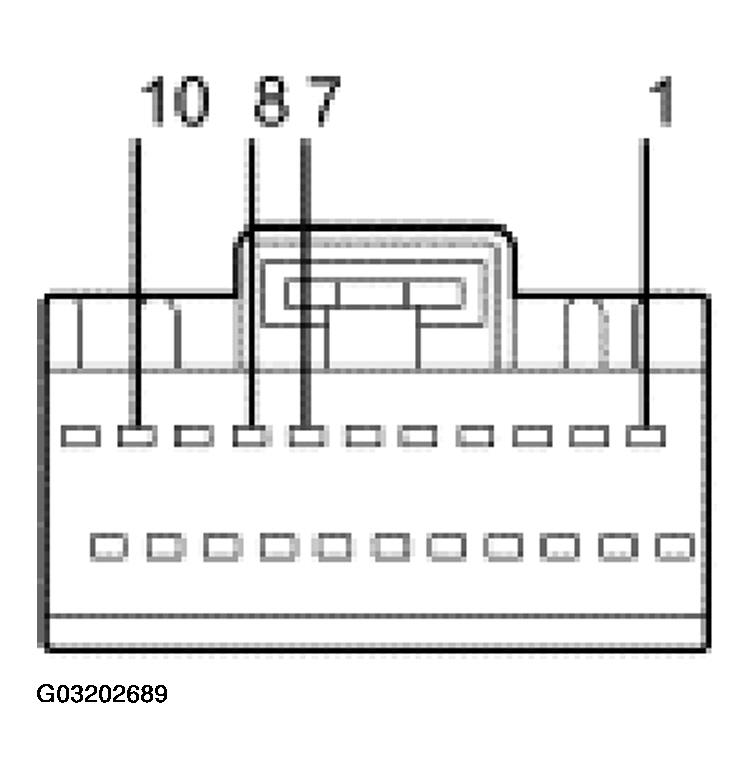

Instrument Cluster C220c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 9-LE29 (BN/GN) headlamp switch return signal | 0 voltage, less than 5 ohms between the instrument cluster and the headlamp switch. Greater than 10,000 ohms between the instrument cluster and ground. |
| 7 | 10-LE21 (GY/OG) instrument cluster headlamps OFF signal | 0 voltage, less than 5 ohms between the instrument cluster and the headlamp switch. Greater than 10,000 ohms between the instrument cluster and ground. |
| 8 | 8-LF14 (WH/BU) instrument cluster parking lamps ON signal | 0 voltage, less than 5 ohms between the instrument cluster and the headlamp switch. Greater than 10,000 ohms between the instrument cluster and ground. |
| 10 | 8-LE21 (WH/GN) instrument cluster headlamps ON signal | 0 voltage, less than 5 ohms between the instrument cluster and the headlamp switch. Greater than 10,000 ohms between the instrument cluster and ground. |
