Instrument Cluster C220b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

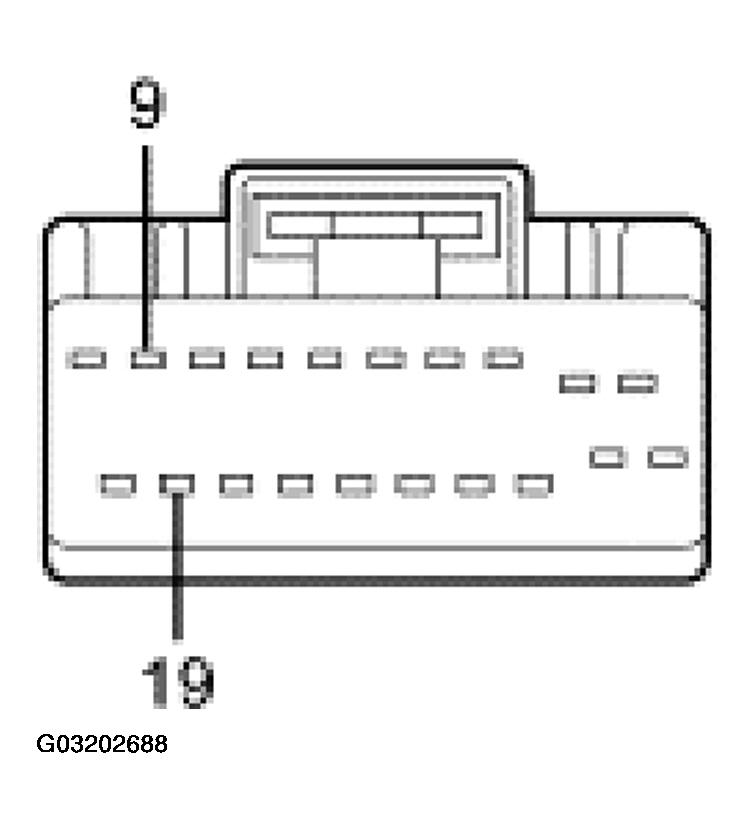

CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 9 | 9-LG43 (BN/WH) multifunction switch return signal | 0 voltage, less than 5 ohms between the instrument cluster and the multifunction switch. Greater than 10,000 ohms between the instrument cluster and ground. |
| 19 | 8-LE14 (WH/BU) instrument cluster high beam request signal | 0 voltage, less than 5 ohms between the instrument cluster and the multifunction switch. Greater than 10,000 ohms between the instrument cluster and ground. |
