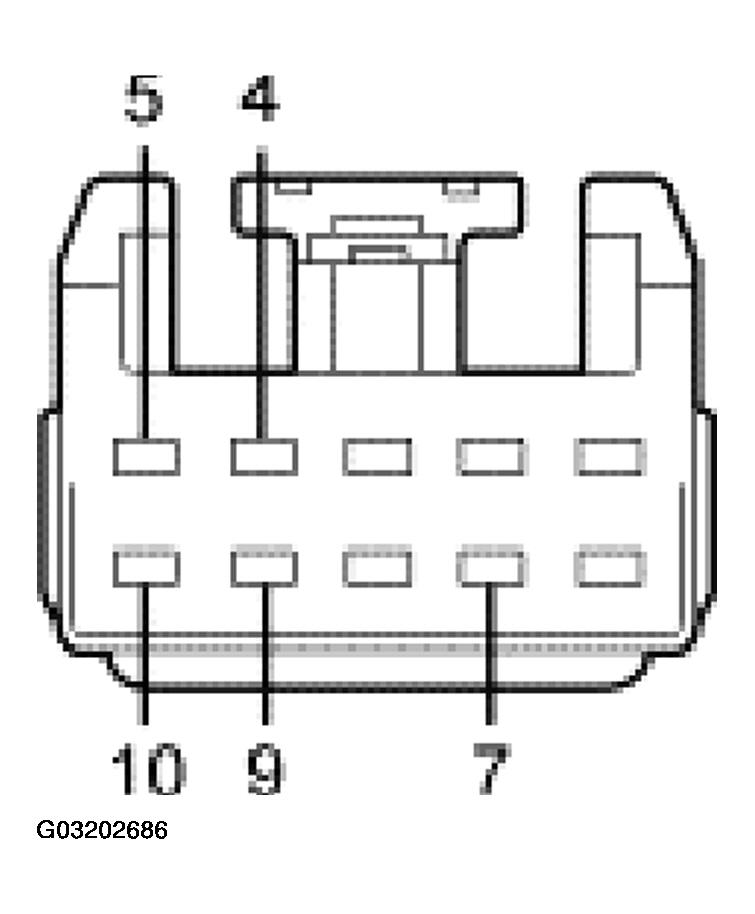

Headlamp Switch C205
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 10-LE47 (GY/OG) instrument cluster autolamps ON signal | Approximately 5 volts when the SSP relays are energized, less than 5 ohms between headlamp switch and the instrument cluster. Greater than 10,000 ohms between the headlamp switch and ground. |
| 5 | 8-LF14 (WH/BU) instrument cluster parking lamps ON signal | Approximately 5 volts when the SSP relays are energized, less than 5 ohms between headlamp switch and the instrument cluster. Greater than 10,000 ohms between the headlamp switch and ground. |
| 7 | 9-LE29 (BN/GN) headlamp switch return signal | 0 voltage less than 5 ohms between the headlamp switch and instrument cluster. Greater than 10,000 ohms between the headlamp switch and ground. |
| 9 | 10-LE21 (GY/OG) instrument cluster headlamps OFF signal | Approximately 5 volts when the SSP relays are energized, less than 5 ohms between headlamp switch and the instrument cluster. Greater than 10,000 ohms between the headlamp switch and ground. |
| 10 | 8-LE21 (WH/GN) instrument cluster headlamps ON signal | Approximately 5 volts when the SSP relays are energized, less than 5 ohms between headlamp switch and the instrument cluster. Greater than 10,000 ohms between the headlamp switch and ground. |
