FEM C201f

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

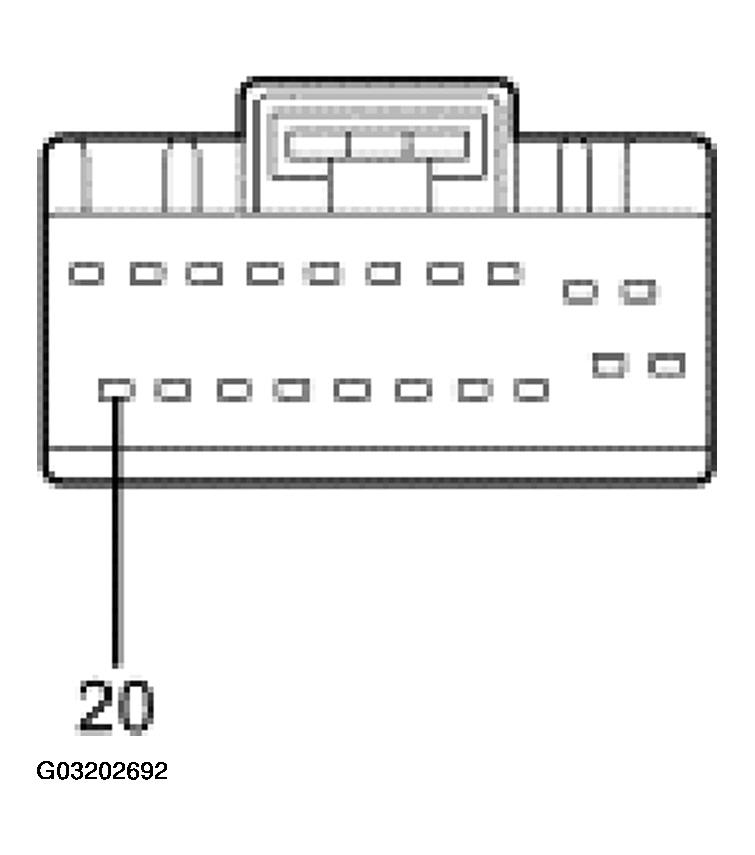

Fig 1: Identifying FEM C201F Pins
G03202692Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
20 91S-LE23 (BN/WH) RH HID low beam control ground circuit Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and RH HID relay. Greater than 10,000 ohms between the FEM and ground.
