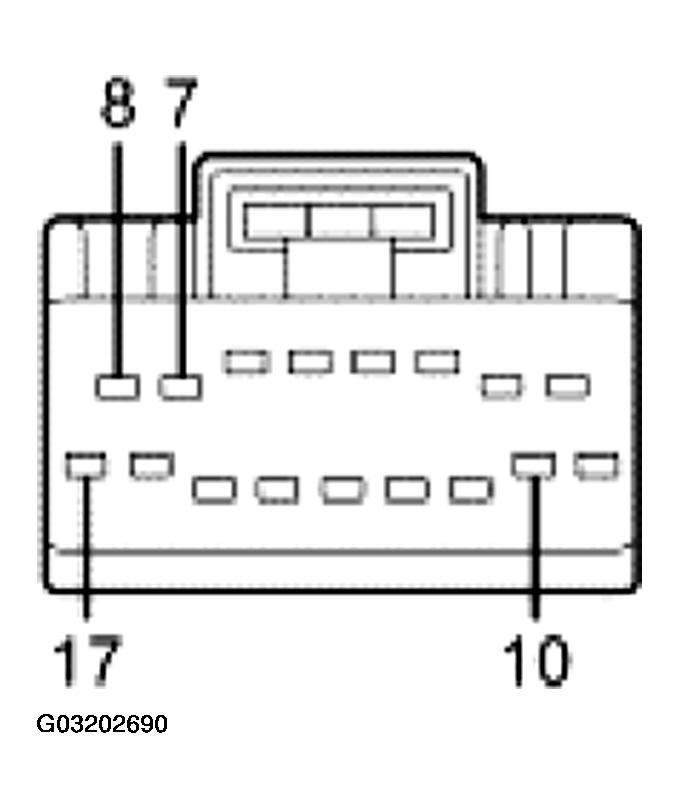

FEM C201a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 7 | 31S-LE23 (BK/WH) RH halogen low beam control ground circuit | Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and headlamp. Greater than 10,000 ohms between the FEM and ground. |
| 8 | 31S-LE16 (BK/RD) LH halogen low beam control ground circuit | Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and headlamp. Greater than 10,000 ohms between the FEM and ground. |
| 10 | 31S-LE22 (BK/RD) RH halogen high beam control ground circuit | Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and headlamp. Greater than 10,000 ohms between the FEM and ground. |
| 17 | 31S-LE15 (BK/GN) LH halogen high beam control ground circuit | Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and headlamp. Greater than 10,000 ohms between the FEM and ground. |
