Photocell C286

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

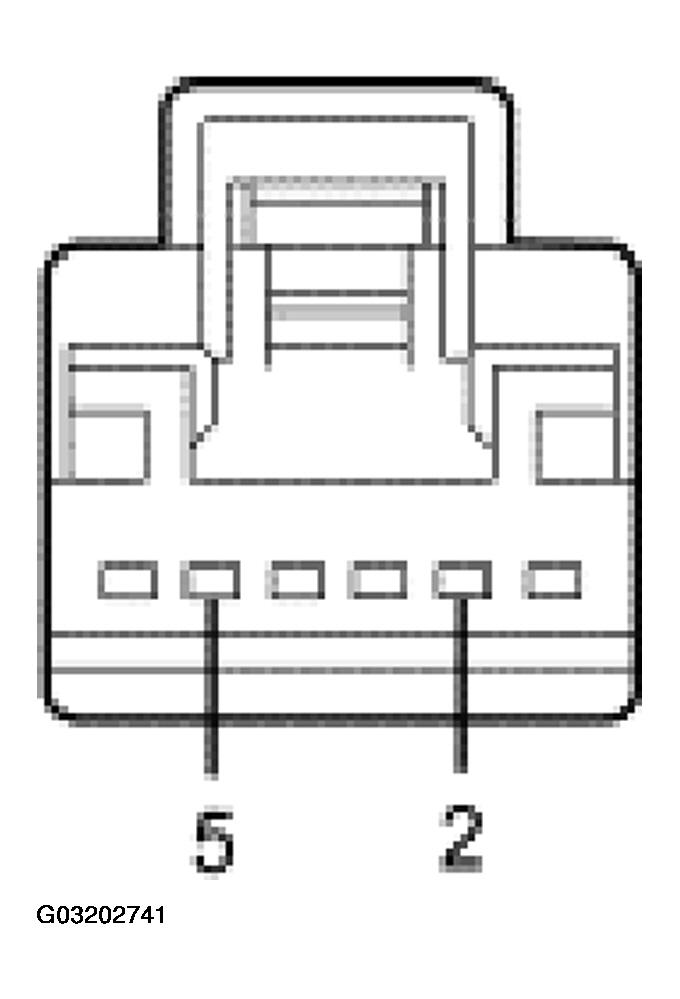

Fig 1: Identifying Photocell C286 Pins
G03202741Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 8-LE42 (WH/BU) photocell input circuit Less than 5 ohms between the photocell and the instrument cluster. Greater than 10,000 ohms between the photocell and ground.
5 31-LE42 (BK/OG) photocell ground circuit 0 voltage, less than 5 ohms between the photocell and ground.
