Center Imaging Speaker LH C230, RH C231
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

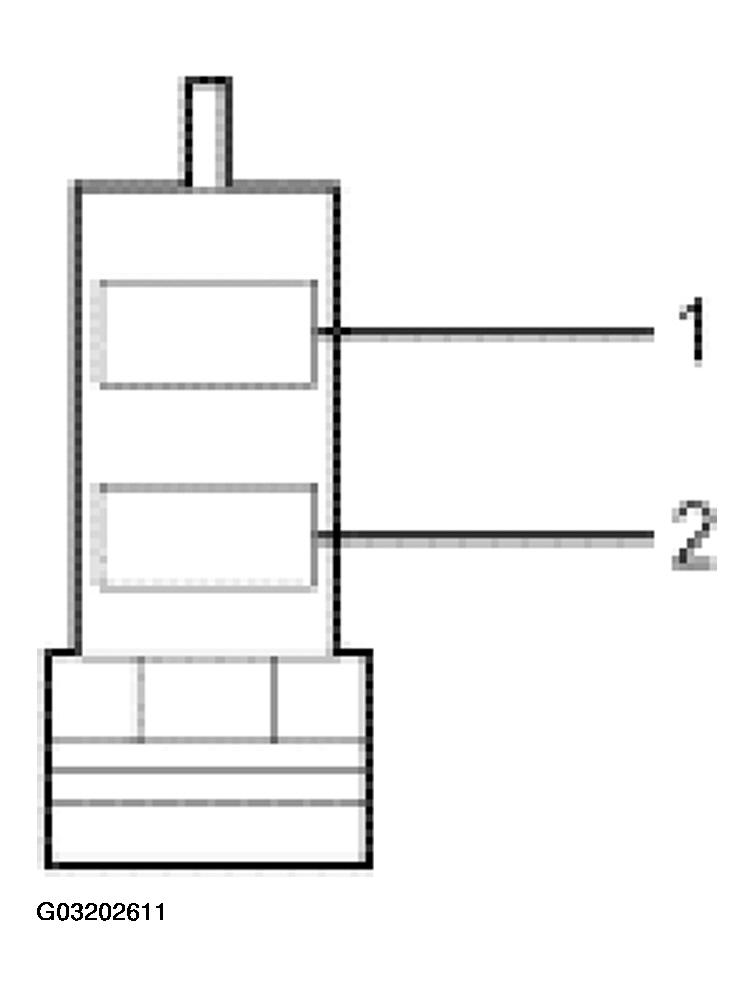

CENTER IMAGING SPEAKER LH C230, RH C231 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (C230) | 8-MD30 (WH/BU) center imaging amplifier output | Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground. |
| 2 (C230) | 10-MD30(GY/VT) center imaging amplifier return | Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground. |
| 1 (C231) | 8-MD31 (WH/GN) center imaging amplifier output | Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground. |
| 2(C231) | 10-MD31 (GY/OG) center imaging amplifier return | Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground. |
