Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the components in the order indicated in the following illustration and table. See Fig 1.

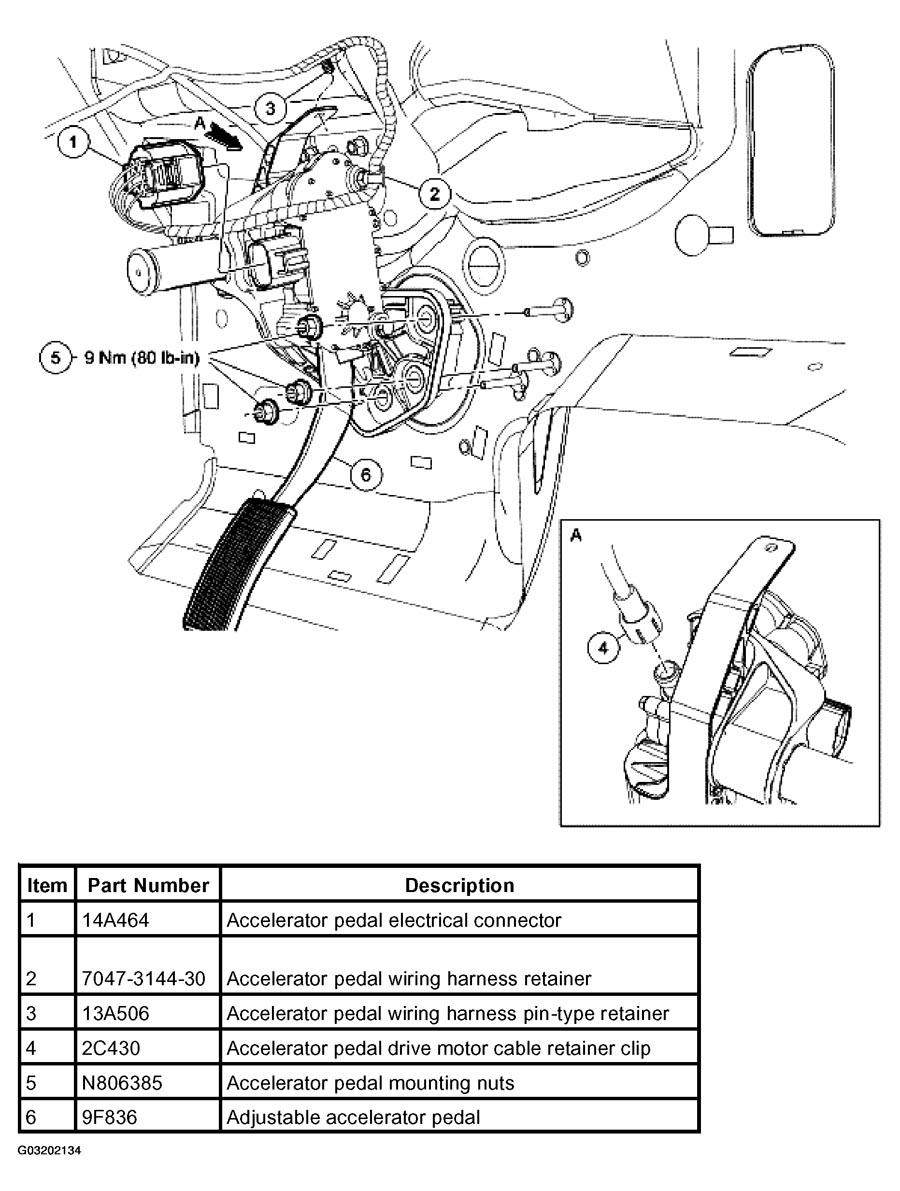

    Fig 1: Removing Components Adjustable Accelerator Pedal
    G03202134Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
