Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
Place the range selector lever in the D5 position.
Remove the center console. For additional information, refer to INTERIOR TRIM .
Remove the parts in the order indicated in the following illustration and table. See Fig 1.

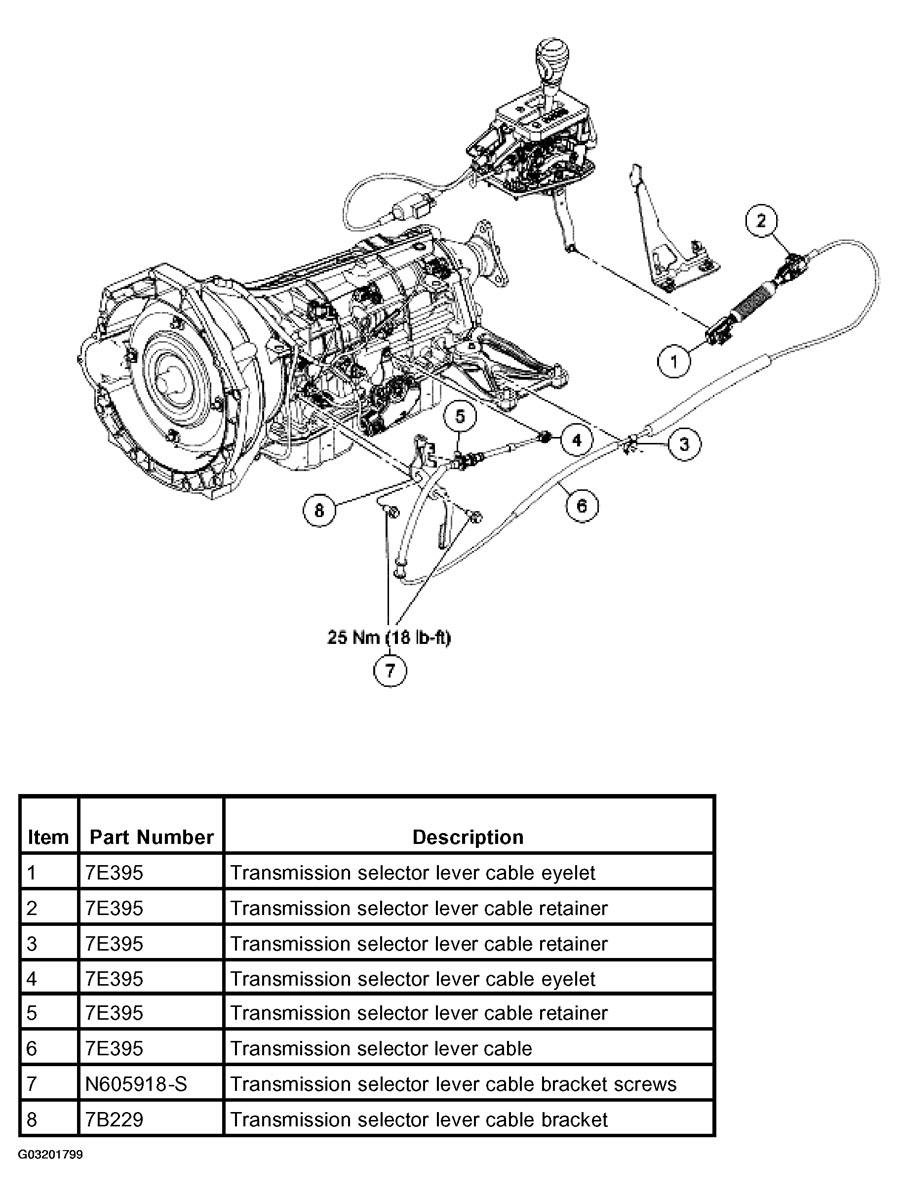

Fig 1: Identifying Removal Sequence Of Transmission Selector Cable Parts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

NOTE: It is not necessary to remove the exhaust.

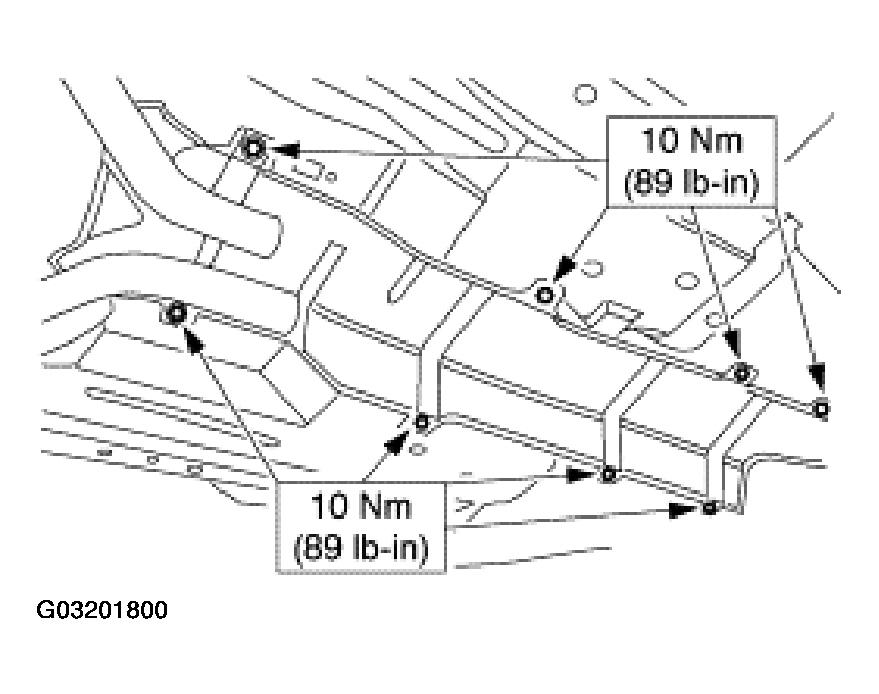

Fig 2: Removing Exhaust Heat Shield

Courtesy of FORD MOTOR CO.

Remove the bolts that retain the exhaust heat shield in place and lower the shield onto the exhaust.
After installing the shift cable, it will be necessary to adjust the shift cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT in this section.
