Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
Remove the A/C condenser. For additional information, refer to ENGINE COOLING .

Remove the parts in the order indicated in the following illustration and table. See Fig 1.

To remove individual parts, only carry out the listed steps:

PARTS REMOVAL STEPS

Part	Steps
Transmission fluid cooler	3, 5, 6, 7, 8 and 9
Transmission fluid cooler hoses	3, 5 and 6
Transmission fluid cooler lines	1, 2, 3 and 4

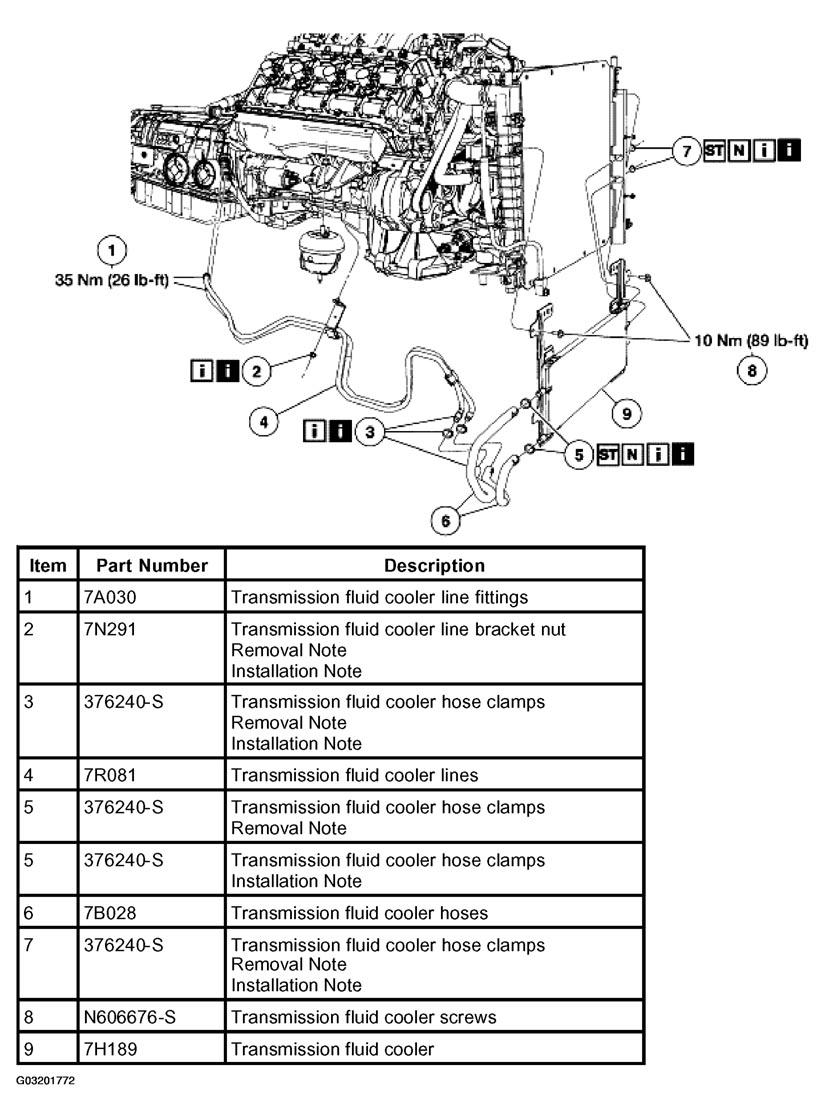

Fig 1: Removing Transmission Fluid Cooler Hoses And Lines

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Carry out the transmission fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK in this section.

Item 2: Transmission Fluid Cooler Line Bracket Nut Removal Note

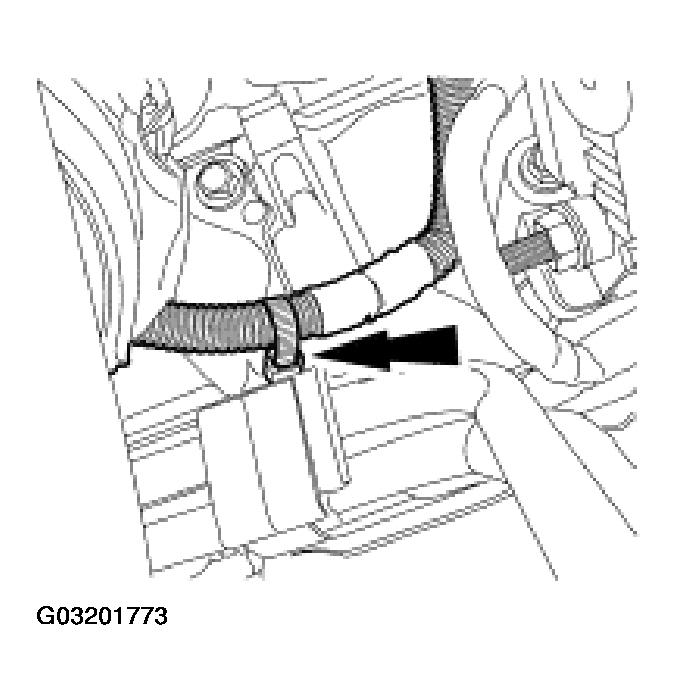

Remove the wire harness retainer from the steel fluid cooling tube support bracket.

Fig 2: Removing Wire Harness Retainer From Steel Fluid Cooling Tube Support Bracket
Courtesy of FORD MOTOR CO.

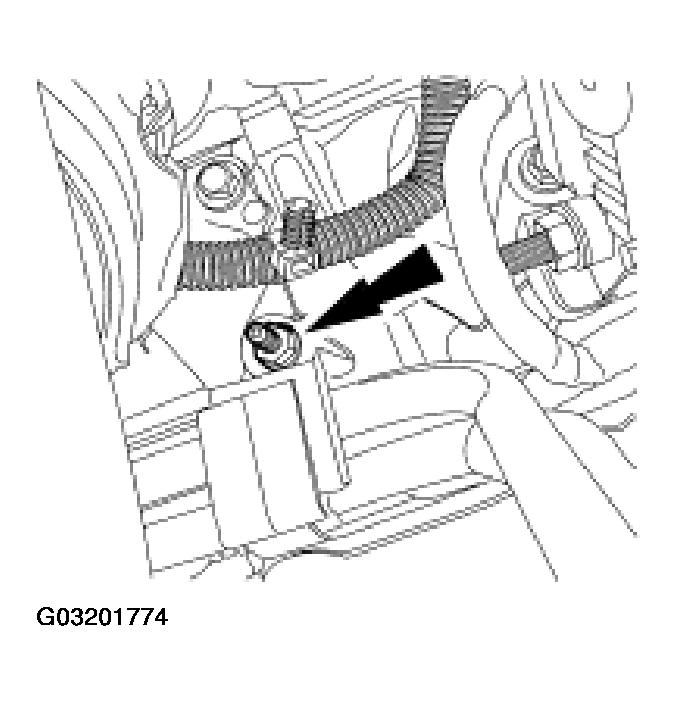

Remove the steel fluid cooling tube support bracket.

Fig 3: Removing Steel Fluid Cooling Tube Support Bracket
Courtesy of FORD MOTOR CO.

Item 3: Transmission Fluid Cooler Hose Clamps Removal Note

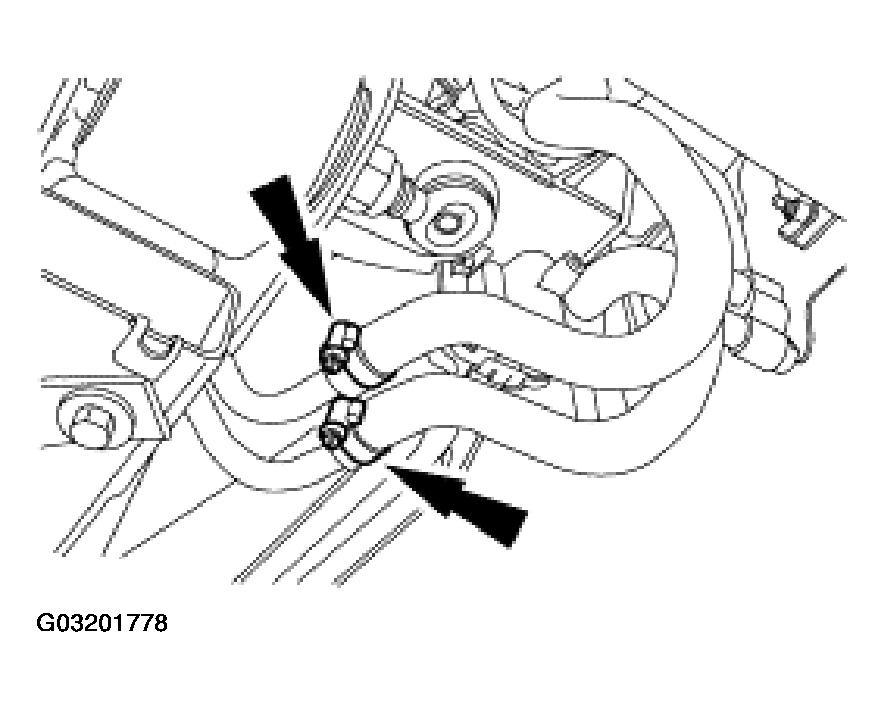

Remove the transmission fluid cooler hose clamps.

Fig 4: Removing Transmission Fluid Cooler Hose Clamps
Courtesy of FORD MOTOR CO.

Items 5 and 7: Transmission Fluid Cooler Hose Clamps Removal Note

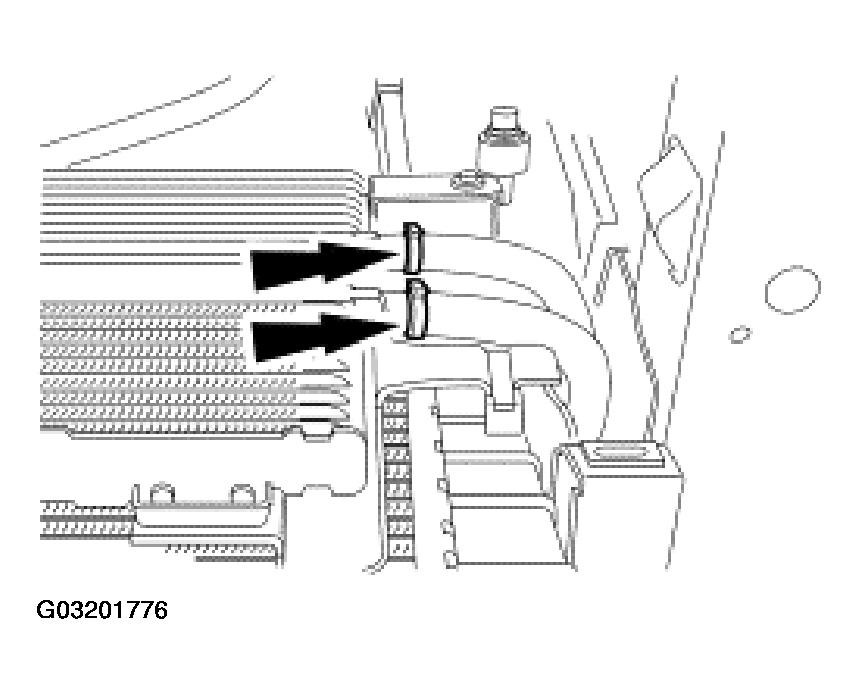

Remove and discard the transmission fluid cooler hose clamps.

Fig 5: Removing Transmission Fluid Cooler Hose Clamps
Courtesy of FORD MOTOR CO.

Items 5 and 7: Transmission Fluid Cooler Hose Clamps Installation Note

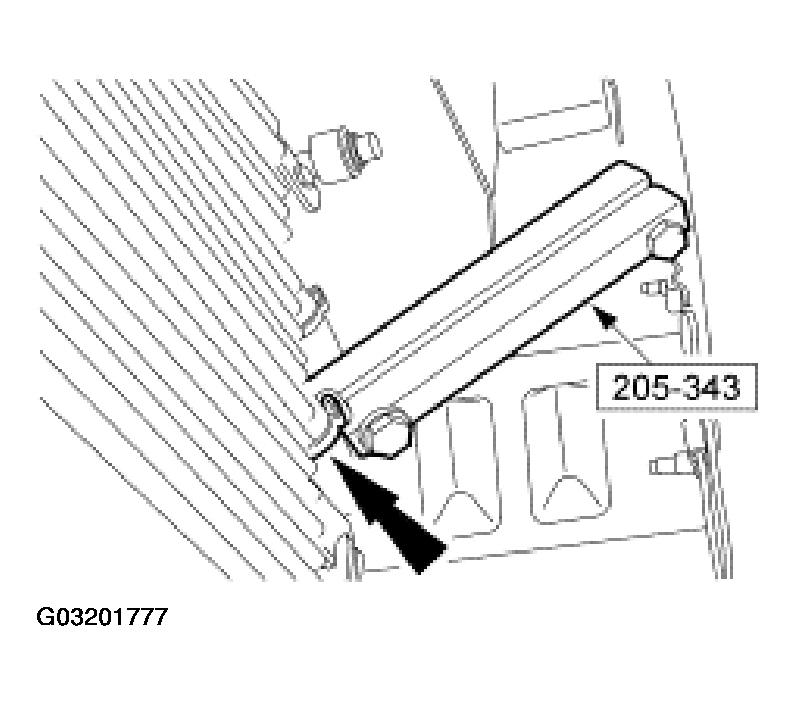

Using the special tool, install new transmission fluid cooler hose clamps.

Fig 6: Installing New Transmission Fluid Cooler Hose Clamps (1 Of 2)
Courtesy of FORD MOTOR CO.

Item 3: Transmission Fluid Cooler Hose Clamps Installation Note

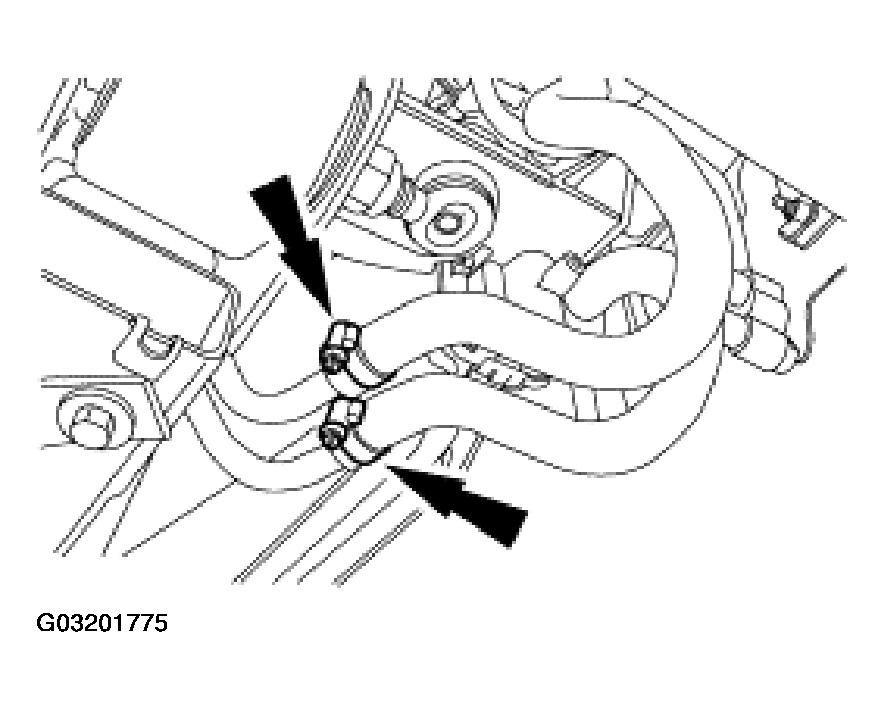

Install the transmission fluid cooler hose clamps.

Fig 7: Installing New Transmission Fluid Cooler Hose Clamps (2 Of 2)
Courtesy of FORD MOTOR CO.

Item 2: Transmission Fluid Cooler Line Bracket Nut Installation Note

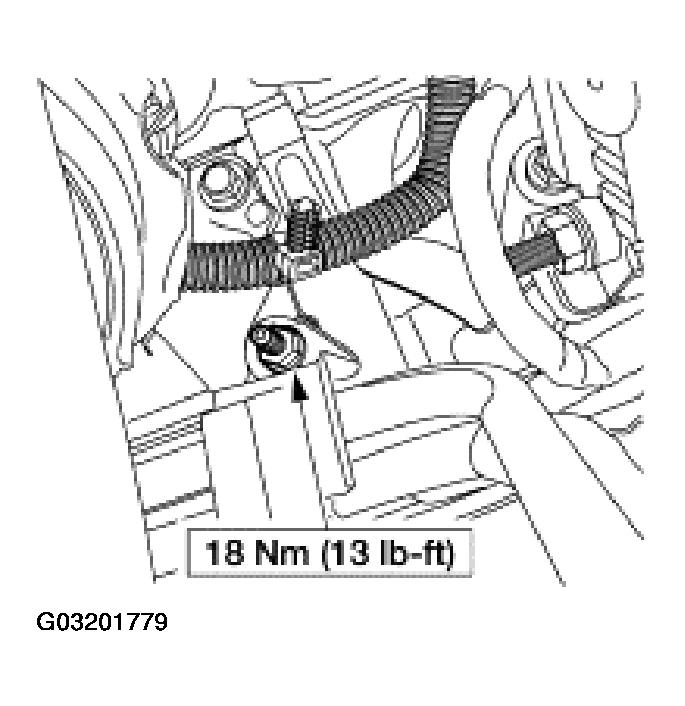

Install the steel fluid cooling tube support bracket.

Fig 8: Installing Steel Fluid Cooling Tube Support Bracket
Courtesy of FORD MOTOR CO.

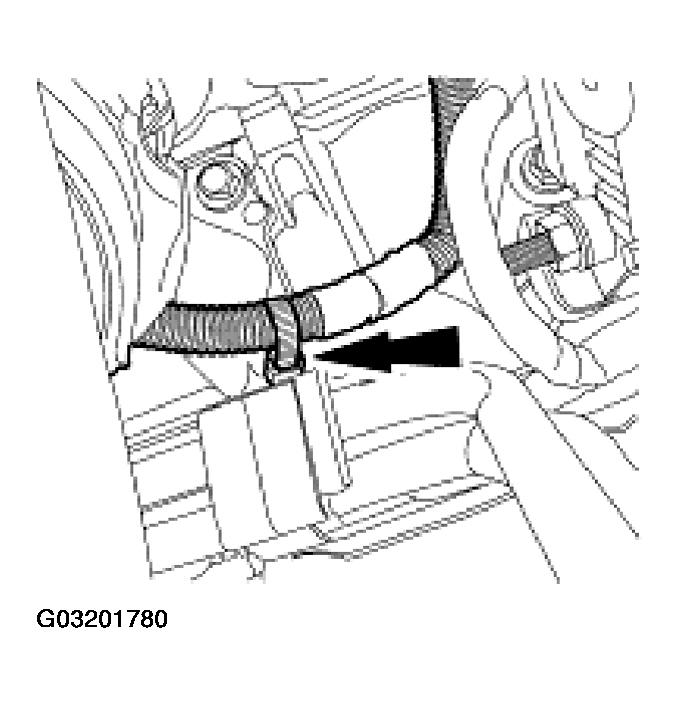

Install the wire harness retainer to the steel fluid cooling tube support bracket.

Fig 9: Installing Wire Harness Retainer To Steel Fluid Cooling Tube Support Bracket
Courtesy of FORD MOTOR CO.
