Removal and Installation

1. With the vehicle in PARK, position it on a hoist. For additional information, refer to LIFTING .
2. Remove the parts in the order indicated in the following illustration and table. See Fig 1.

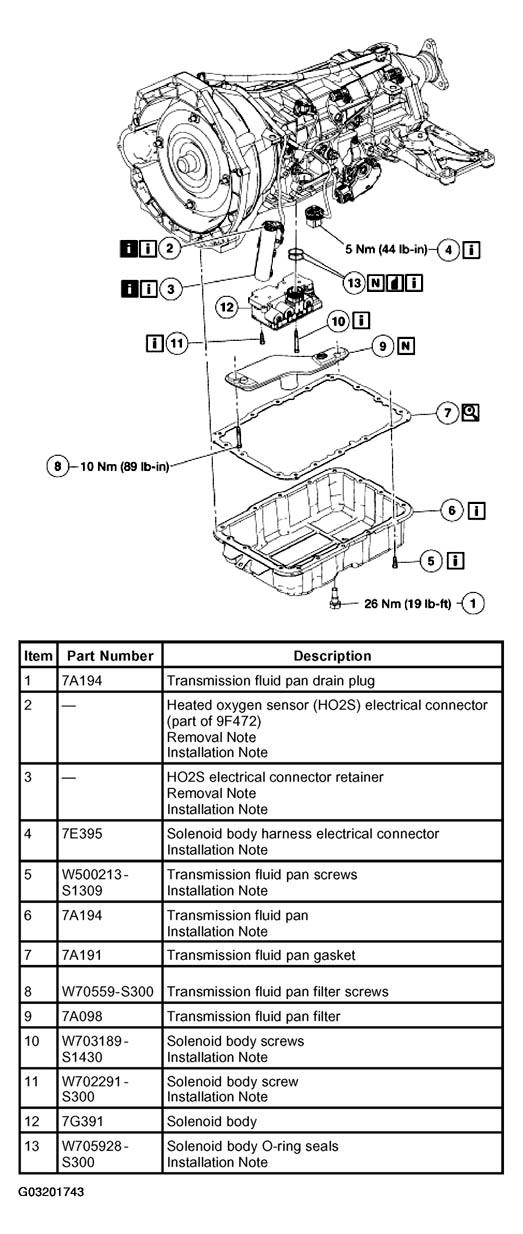

   Fig 1: Removing Transmission Fluid Pan

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
4. Fill the transmission to the correct level. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG  in this section.
5. Verify that the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT  in this section.

Item 2: Heated Oxygen Sensor (HO2S) Electrical Connector Removal Note

1. Disconnect the HO2S connector and remove the sensor wire retaining clip from the right side of the transmission pan rail.

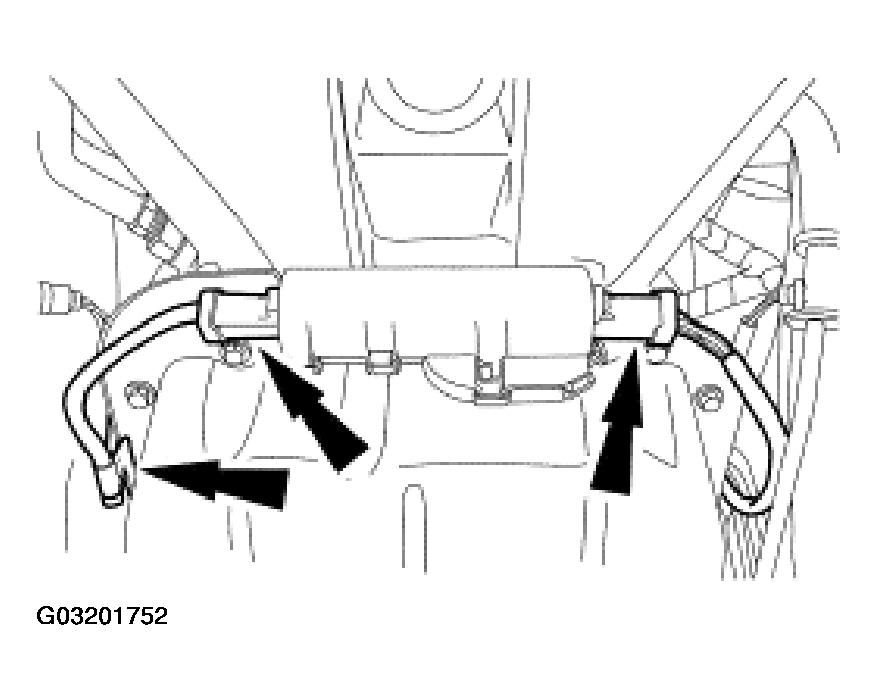

   Fig 2: Removing Sensor Wire Retaining Clip From Right Side Of Transmission Pan Rail

   Courtesy of FORD MOTOR CO.

Item 3: HO2S Electrical Connector Retainer Removal Note

1. Remove the HO2S connector from the front of the transmission pan rail.

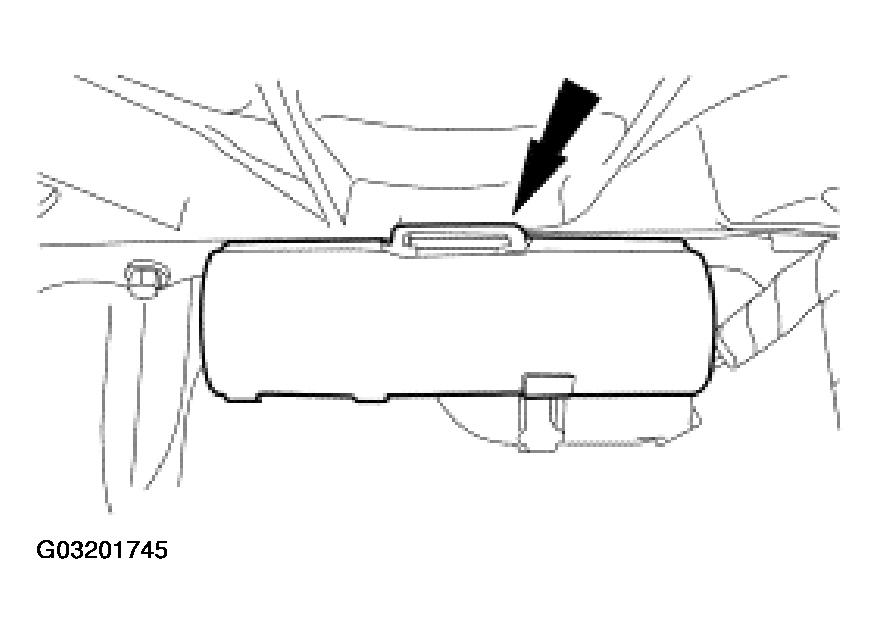

   Fig 3: Removing HO2S Connector From Front Of Transmission Pan Rail

   Courtesy of FORD MOTOR CO.

Item 13: Solenoid Body O-Ring Seals Installation Note

1. Install new O-ring seals on the solenoid body connector. Lubricate the O-ring seals with clean automatic transmission fluid.

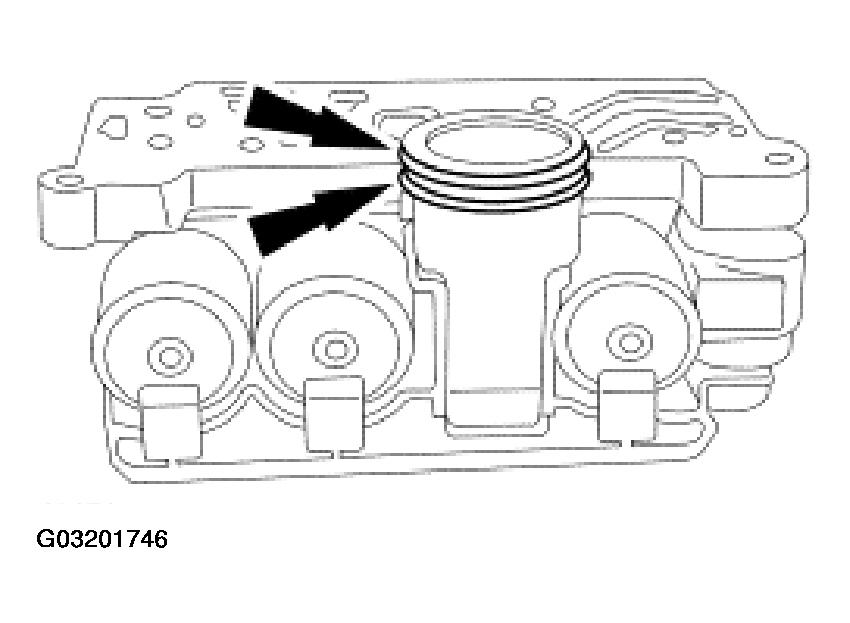

   Fig 4: Installing New O-Ring Seals On Solenoid Body Connector

   Courtesy of FORD MOTOR CO.

Items 10 and 11: Solenoid Body Screws Installation Note

CAUTION: Inspect the transmission case bore to make sure it is free of foreign material and not damaged. If it is damaged, transmission leak may occur.

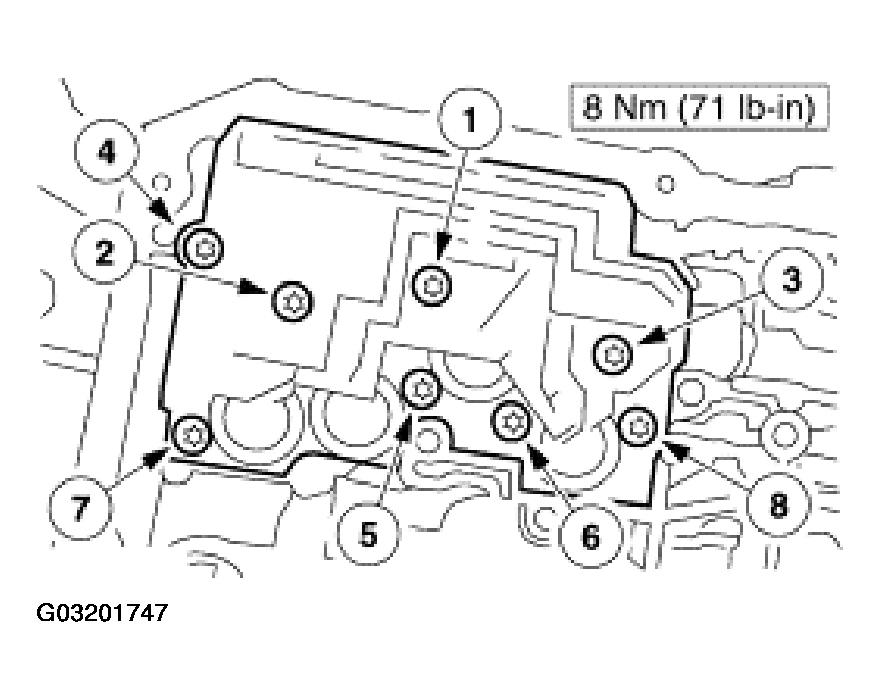

Fig 5: Identifying Tightening Sequence Of Solenoid Body
Courtesy of FORD MOTOR CO.
1. Install the solenoid body. Tighten the screws in sequence shown.

Item 6: Transmission Fluid Pan Installation Note

1. Install the transmission fluid pan and gasket and loosely install the screws.

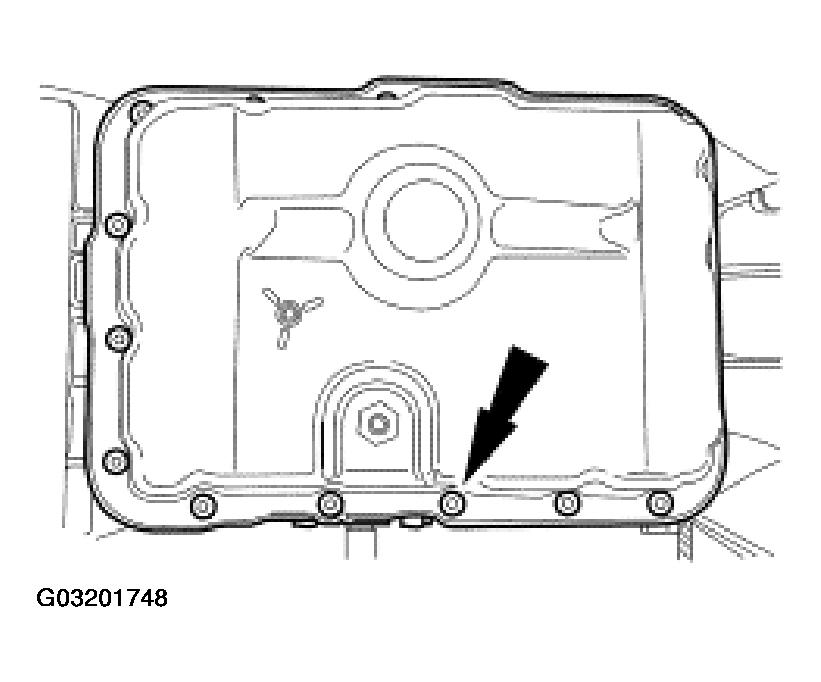

   Fig 6: Installing Transmission Fluid Pan And Gasket

   Courtesy of FORD MOTOR CO.

Item 5: Transmission Fluid Pan Screws Installation Note

1. Tighten the screws in a crisscross sequence.

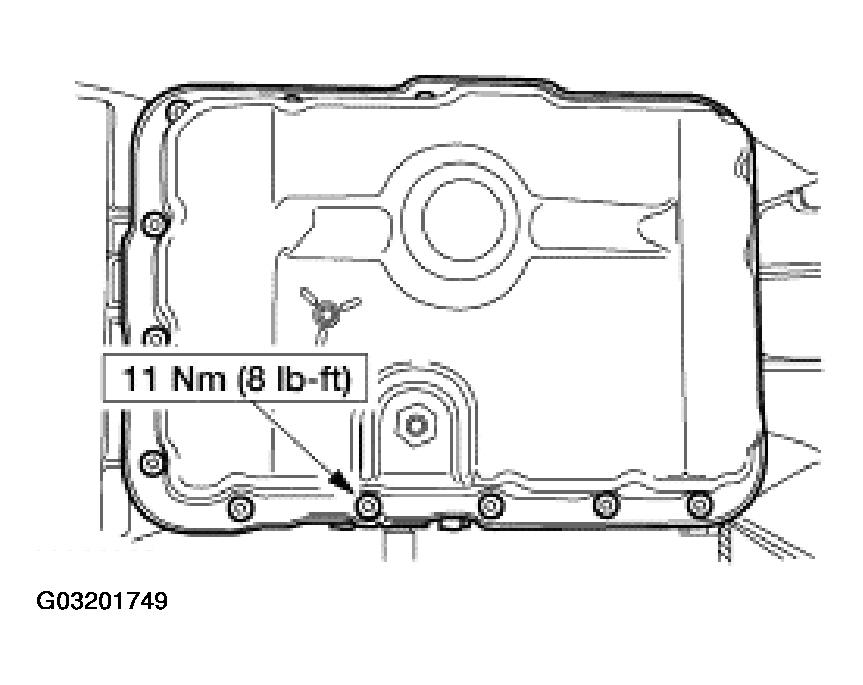

   Fig 7: Tightening Transmission Fluid Pan Screws In Crisscross Sequence

   Courtesy of FORD MOTOR CO.

Item 4: Solenoid Body Harness Electrical Connector Installation Note

CAUTION: Damage will occur to the solenoid body assembly if the screw is tightened above the specification.
NOTE: Always install new O-ring seals on vehicle harness connector.
NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.
NOTE: Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.

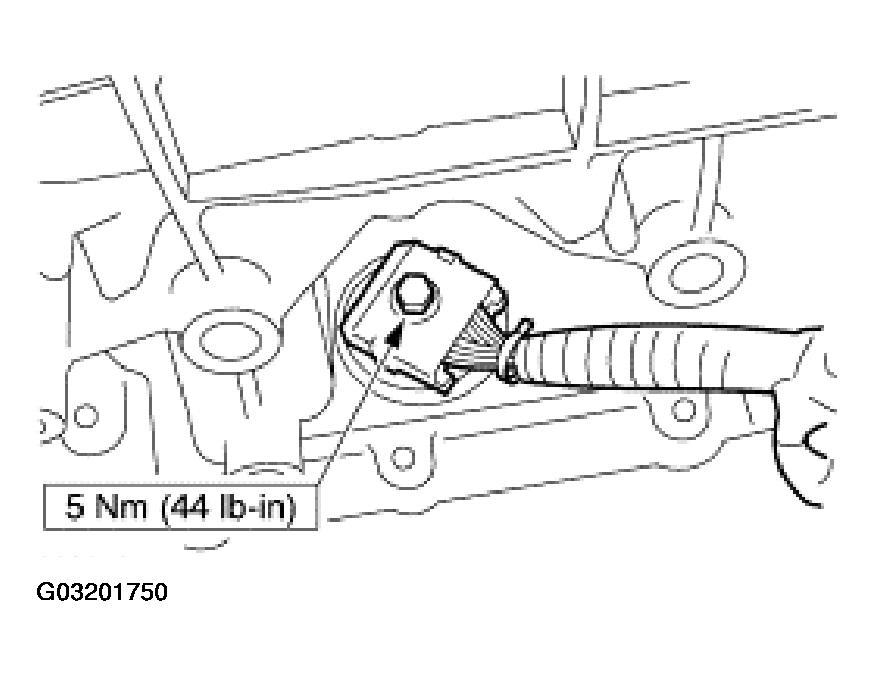

Fig 8: Installing New O-Ring Seals On Transmission Connector And Connecting Connector
Courtesy of FORD MOTOR CO.
1. Install and lubricate new O-ring seals on the transmission connector and connect the connector.

Item 3: HO2S Electrical Connector Retainer Installation Note

1. Install the HO2S connector from the front of the transmission pan rail.
   Fig 9: Installing HO2S Connector From Front Of Transmission Pan Rail

   Courtesy of FORD MOTOR CO.

Item 2: HO2S Electrical Connector Installation Note

1. Connect the HO2S connector and install the sensor wire retaining clip to the right side of the transmission pan rail.
   Fig 10: Installing Sensor Wire Retaining Clip To Right Side Of Transmission Pan Rail

   Courtesy of FORD MOTOR CO.
