Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
2. Place the range selector lever in the D5 position.
3. Remove the center console. For additional information, refer to INTERIOR TRIM .
4. Remove the parts in the order indicated in the following illustration and table. See Fig 1.

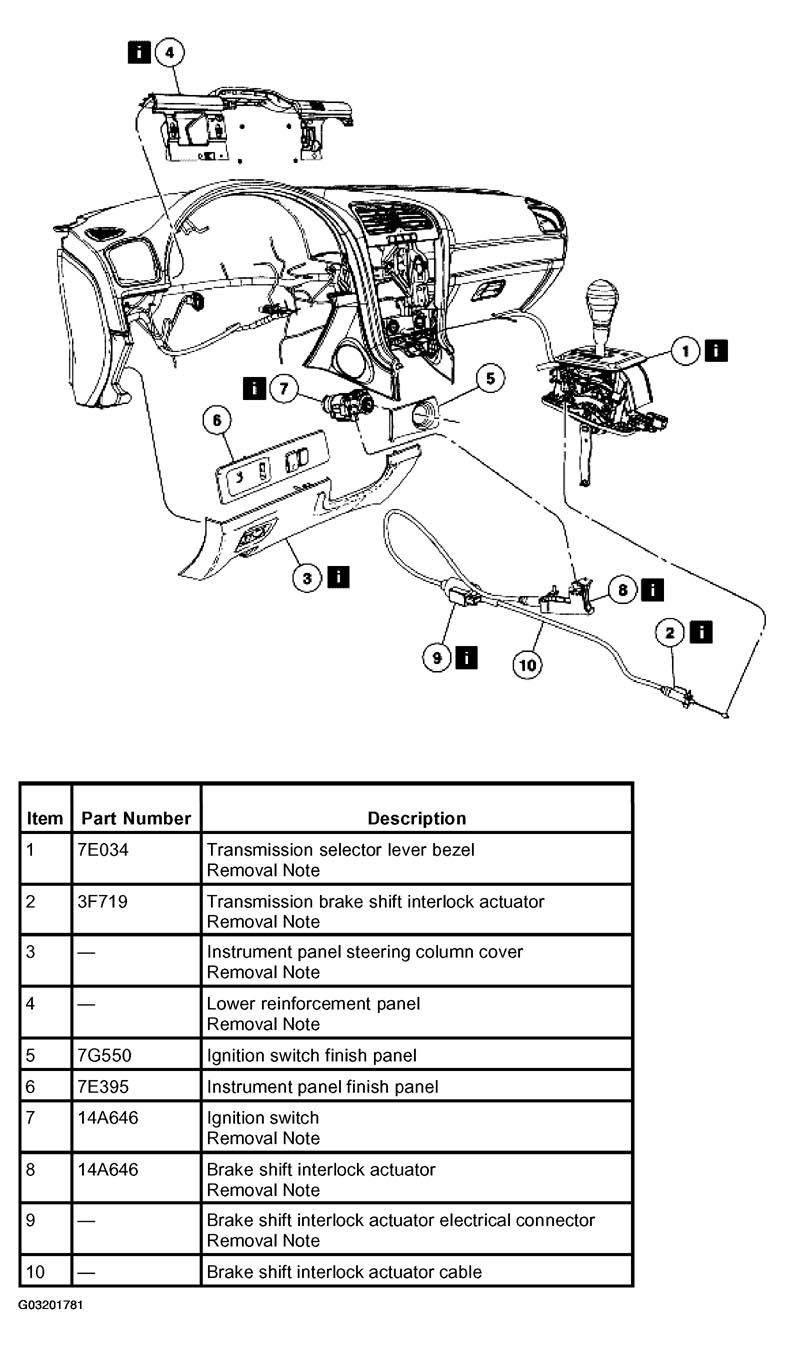

   Fig 1: Identifying Removal Sequence Of Brake Shift Interlock Actuator Components

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.

Item 1: Transmission Selector Lever Bezel Removal Note

1. Remove the PRNDL indicator bulb.
   Fig 2: Removing PRNDL Indicator Bulb

   Courtesy of FORD MOTOR CO.
2. Rotate the shifter bezel out of the way.

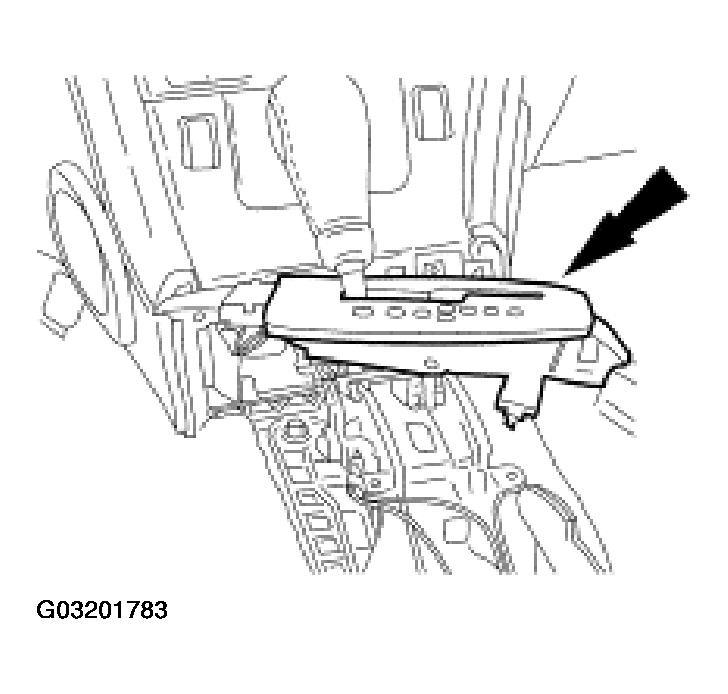

   Fig 3: Removing Shifter Bezel

   Courtesy of FORD MOTOR CO.

Item 2: Transmission Brake Shift Interlock Actuator Removal Note

1. Disconnect the cable from the lever.
   1. Remove the shift interlock cable from the bracket.
   2. Disconnect the cable from the lever.

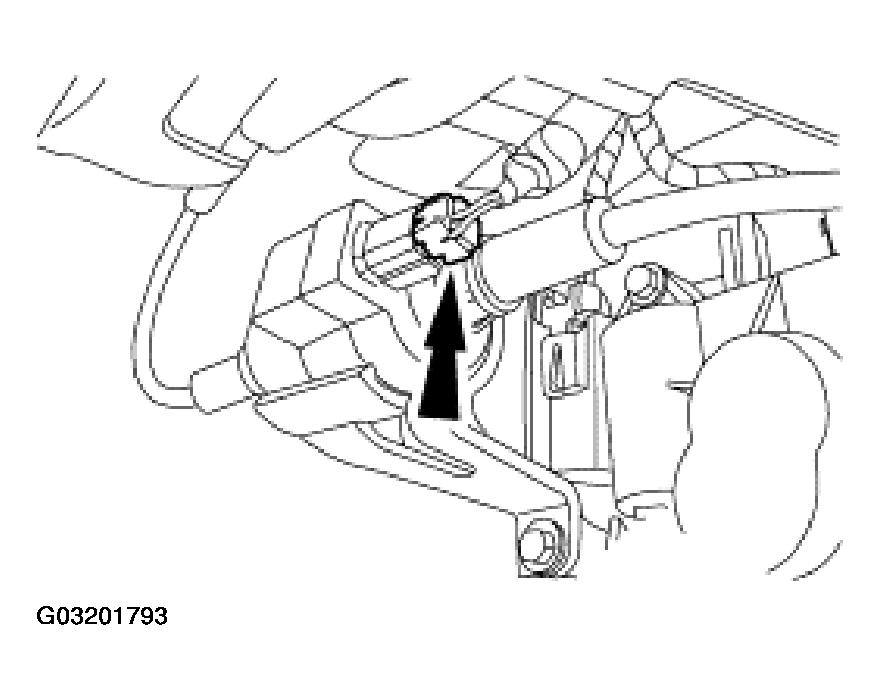

   Fig 4: Disconnecting Cable From Lever

   Courtesy of FORD MOTOR CO.

Item 3: Instrument Panel Steering Column Cover Removal Note

1. Remove the lower steering column cover push pins.

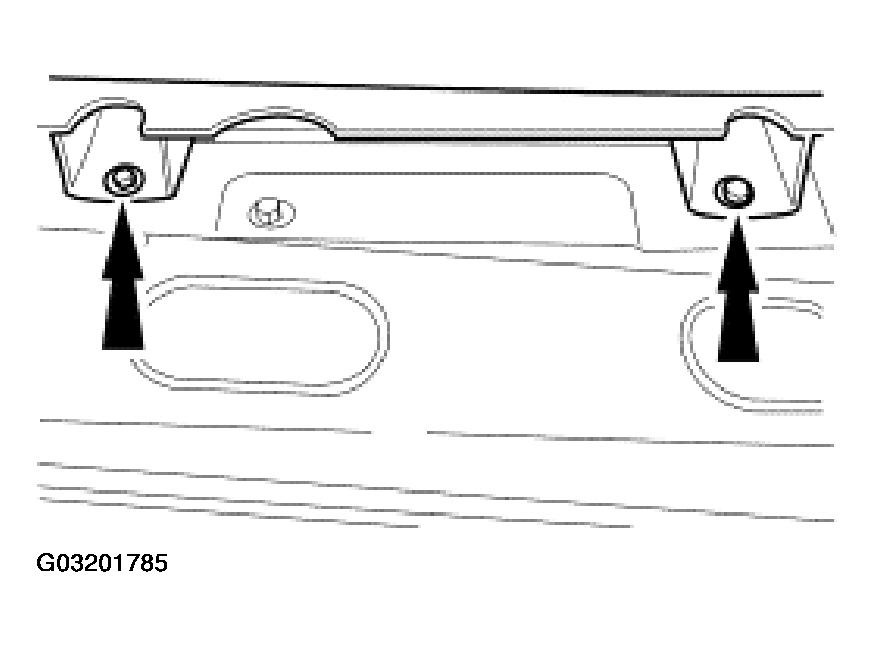

   Fig 5: Removing Lower Steering Column Cover Push Pins

   Courtesy of FORD MOTOR CO.
2. Remove the instrument panel steering column cover.

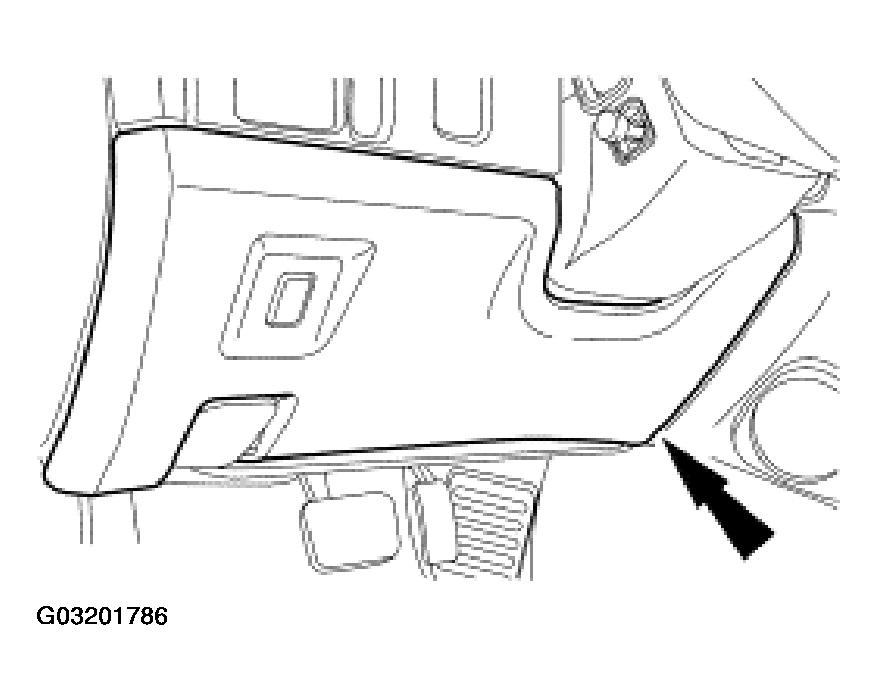

   Fig 6: Removing Instrument Panel Steering Column Cover

   Courtesy of FORD MOTOR CO.
3. Disconnect the electrical connector.

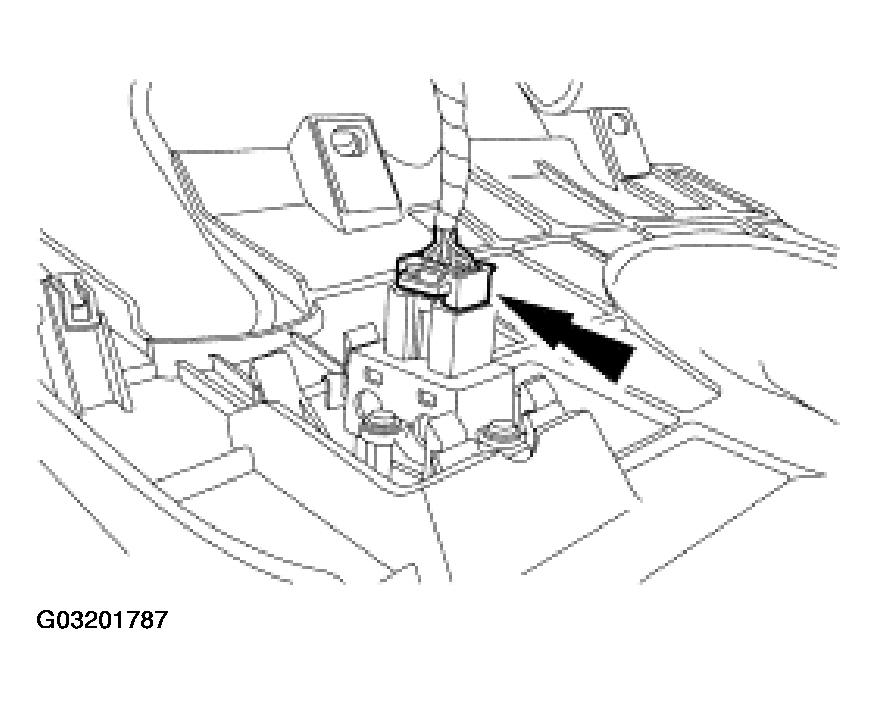

   Fig 7: Disconnecting Electrical Connector

   Courtesy of FORD MOTOR CO.
4. Position the hood release cable and bracket aside.
   1. Remove the screws.
   2. Position the hood release cable and bracket aside.
   Fig 8: Removing Hood Release Cable And Bracket

   Courtesy of FORD MOTOR CO.

Item 4: Lower Reinforcement Panel Removal Note

1. Remove the lower reinforcement panel.

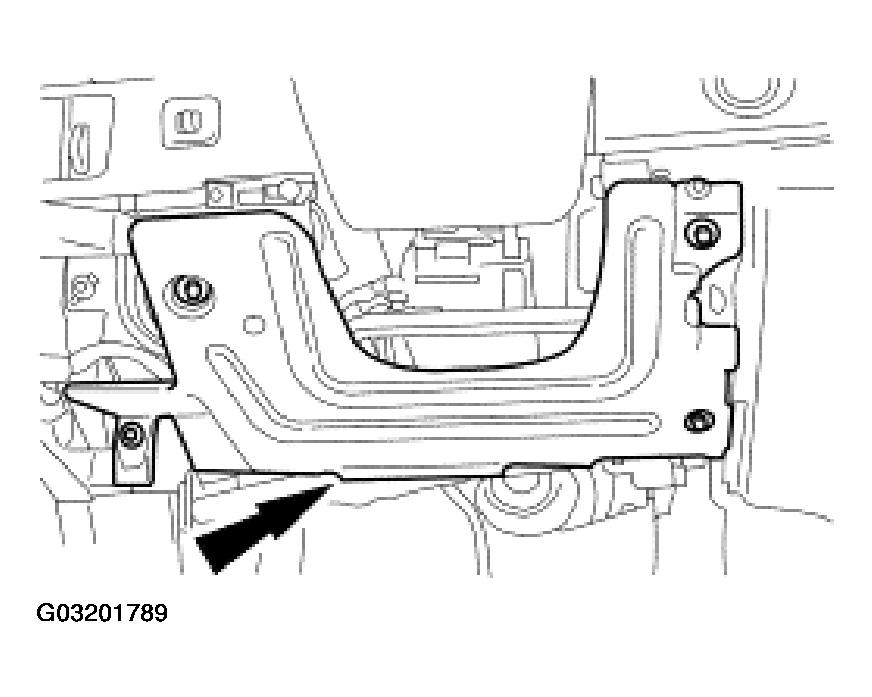

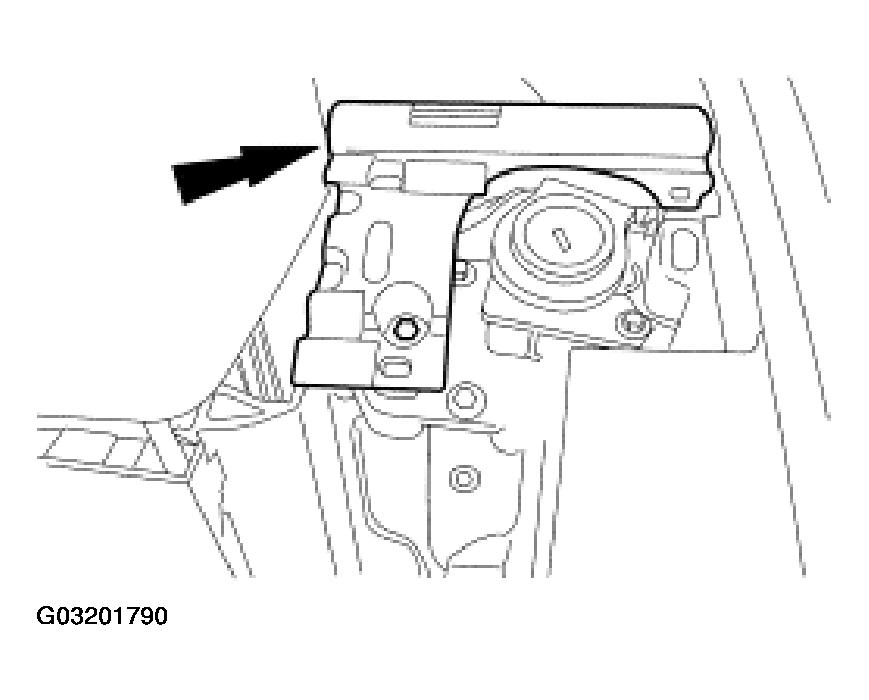

   Fig 9: Removing Lower Reinforcement Panel

   Courtesy of FORD MOTOR CO.

Item 7: Ignition Switch Removal Note

1. Remove the inner trim support panel.
   Fig 10: Removing Inner Trim Support Panel

   Courtesy of FORD MOTOR CO.
2. Remove the ignition switch:
   • Remove the screws.
   • Remove the ignition switch.

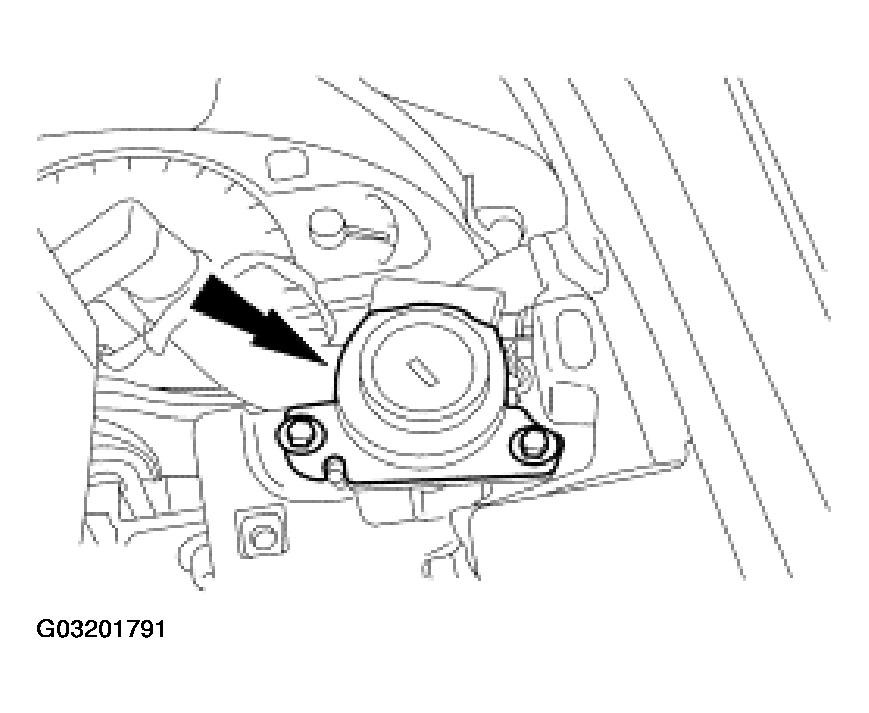

   Fig 11: Removing Ignition Switch

   Courtesy of FORD MOTOR CO.

Item 8: Brake Shift Interlock Actuator Removal Note

1. Remove the screws for the brake shift interlock actuator cable.

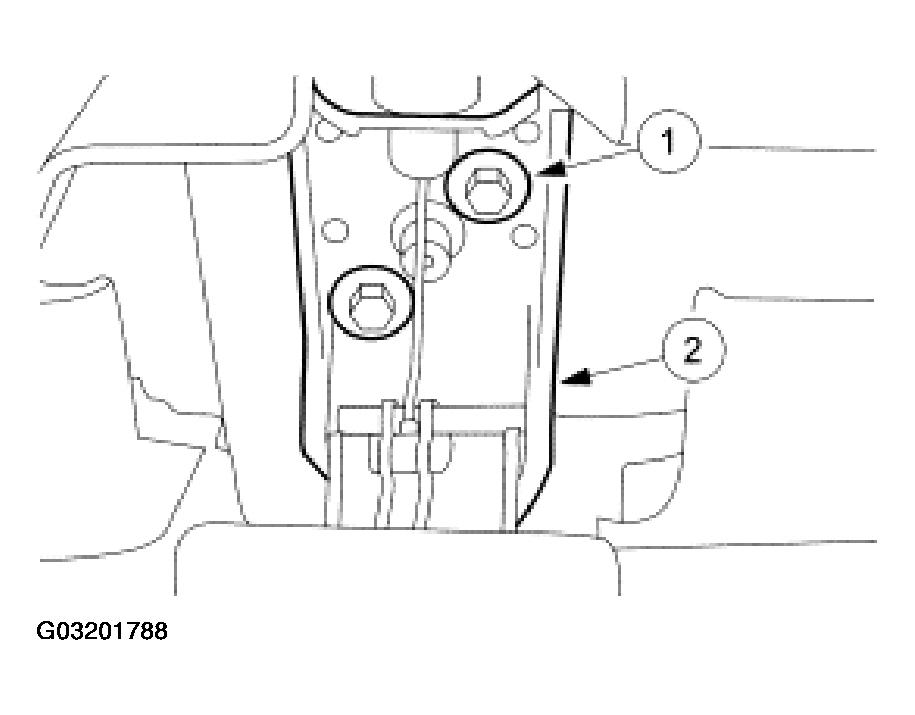

   Fig 12: Removing Screws For Brake Shift Interlock Actuator Cable

   Courtesy of FORD MOTOR CO.

Item 9: Brake Shift Interlock Actuator Electrical Connector Removal Note

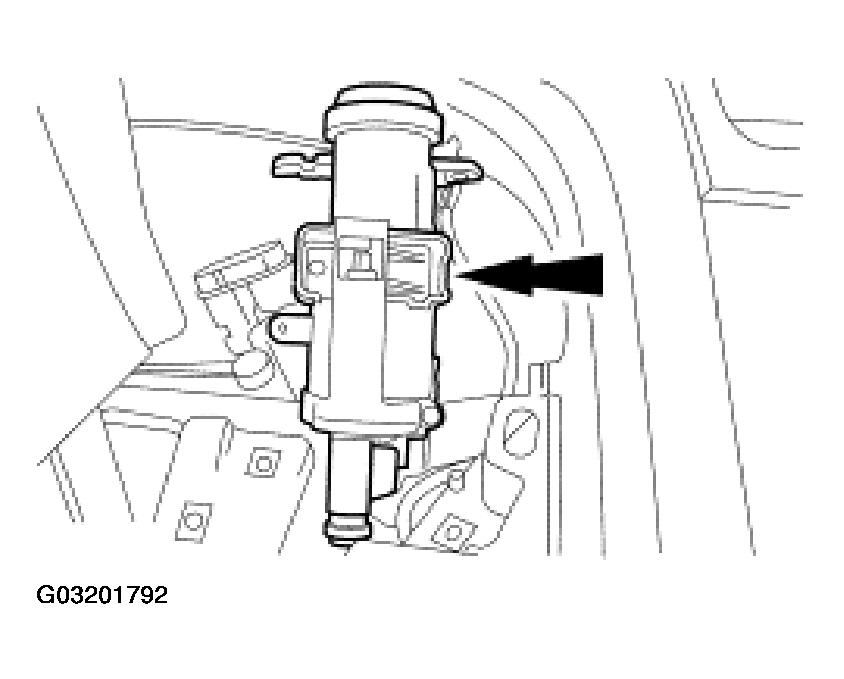

1. Disconnect the electrical connector from the brake shift interlock actuator cable.

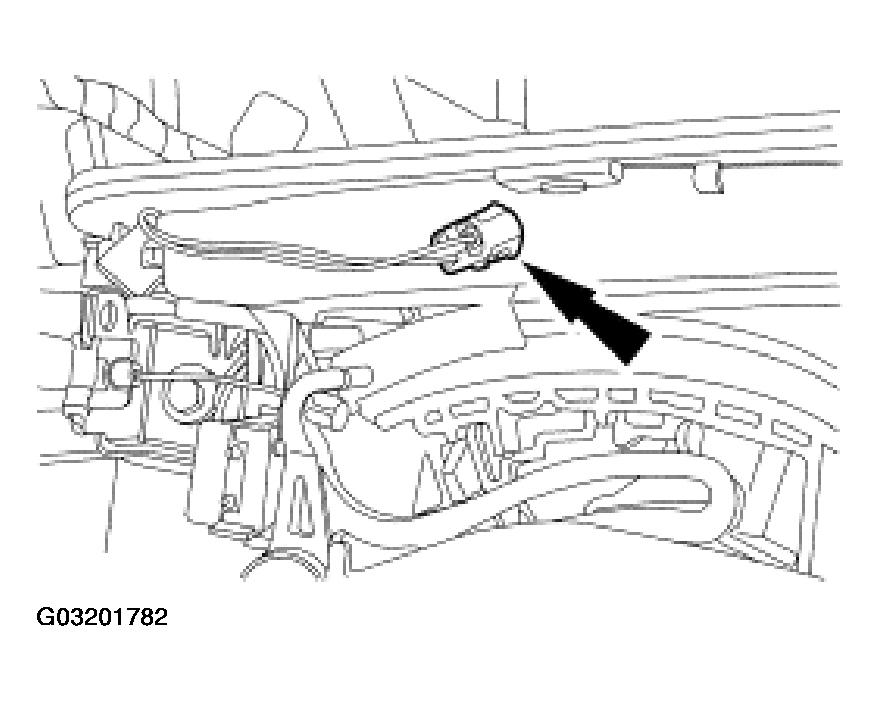

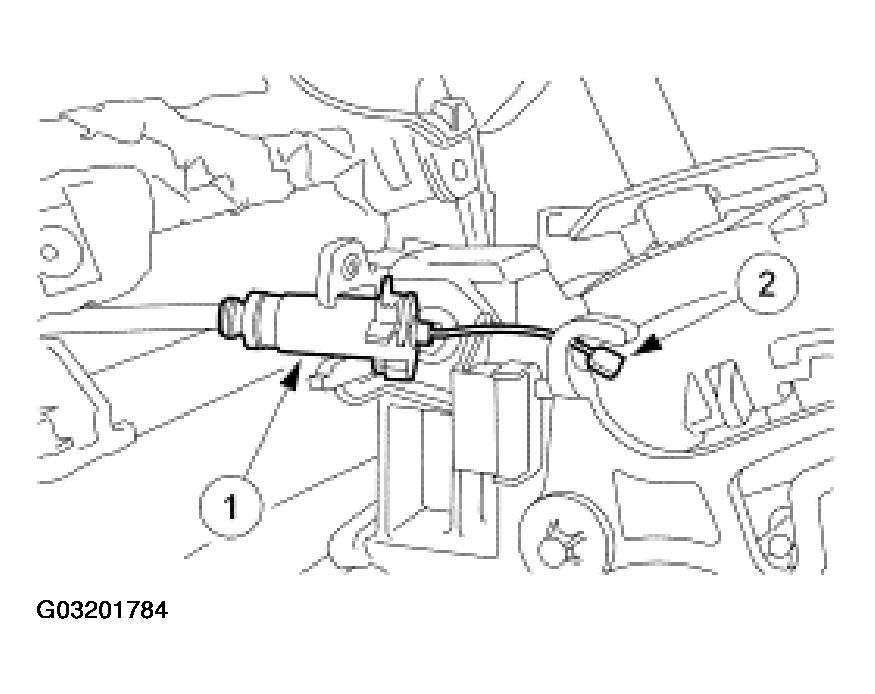

Fig 13: Disconnecting Electrical Connector From Brake Shift Interlock Actuator Cable
Courtesy of FORD MOTOR CO.
