Output Shaft Ring Gear and Hub Shaft Assembly

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Inspect the output shaft ring gear and hub shaft assembly for damage. If repair is necessary, use the following procedure.
  1. Disassemble the parts in the order indicated in the following illustration and table. See Fig 1.

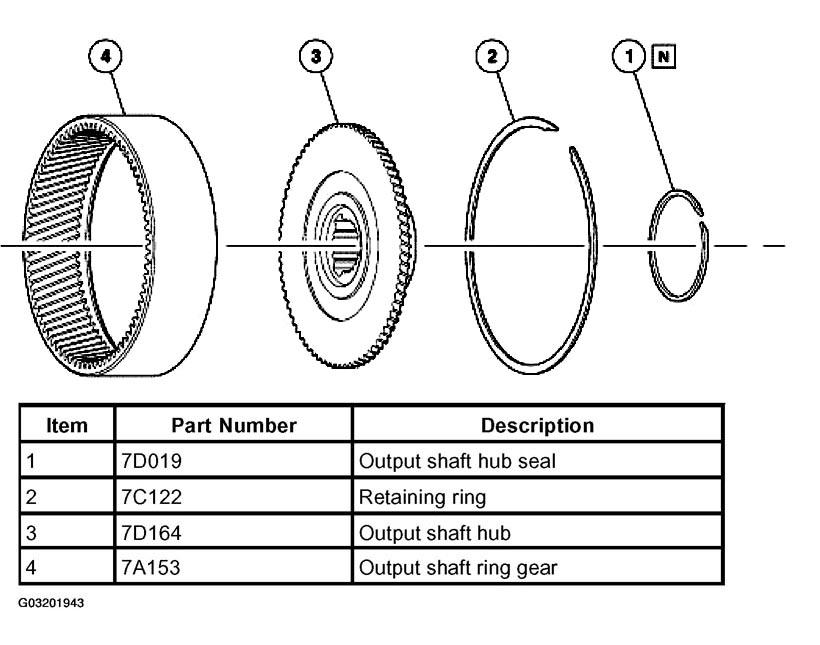

    Fig 1: Inspecting Output Shaft Ring Gear And Hub Shaft Assembly
    G03201943Courtesy of FORD MOTOR CO.
  2. To assemble, reverse the disassembly procedure.
