Disassembled Views

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

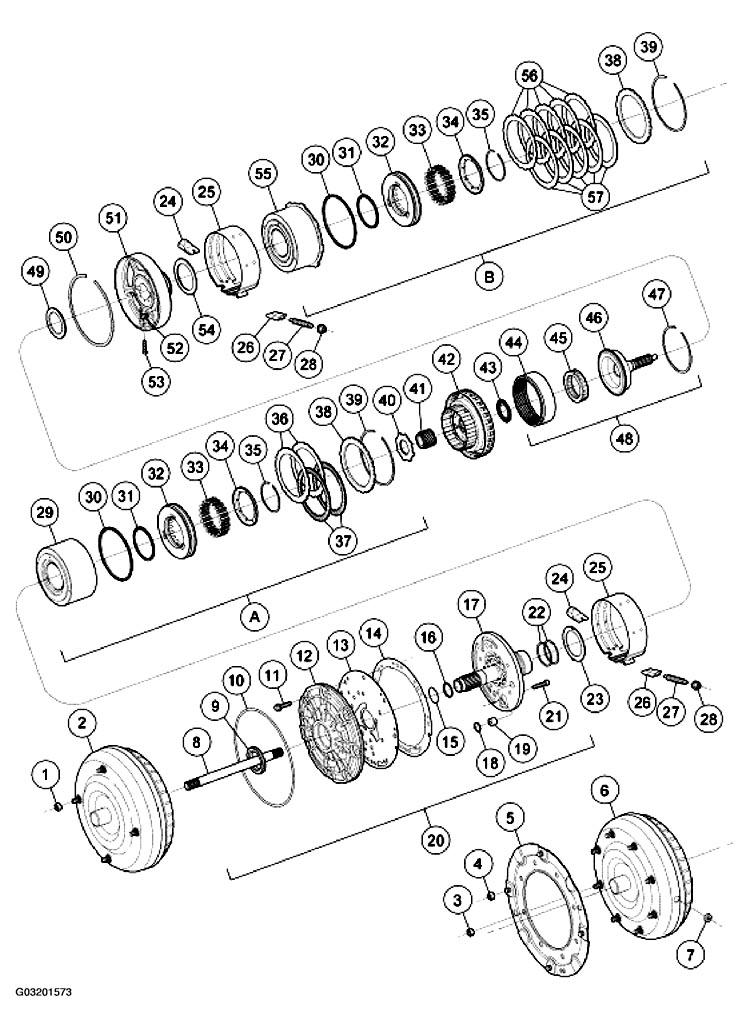

Fig 1: Identifying Automatic Transmission - 5R55S Components (1 Of 8)

Courtesy of FORD MOTOR CO.

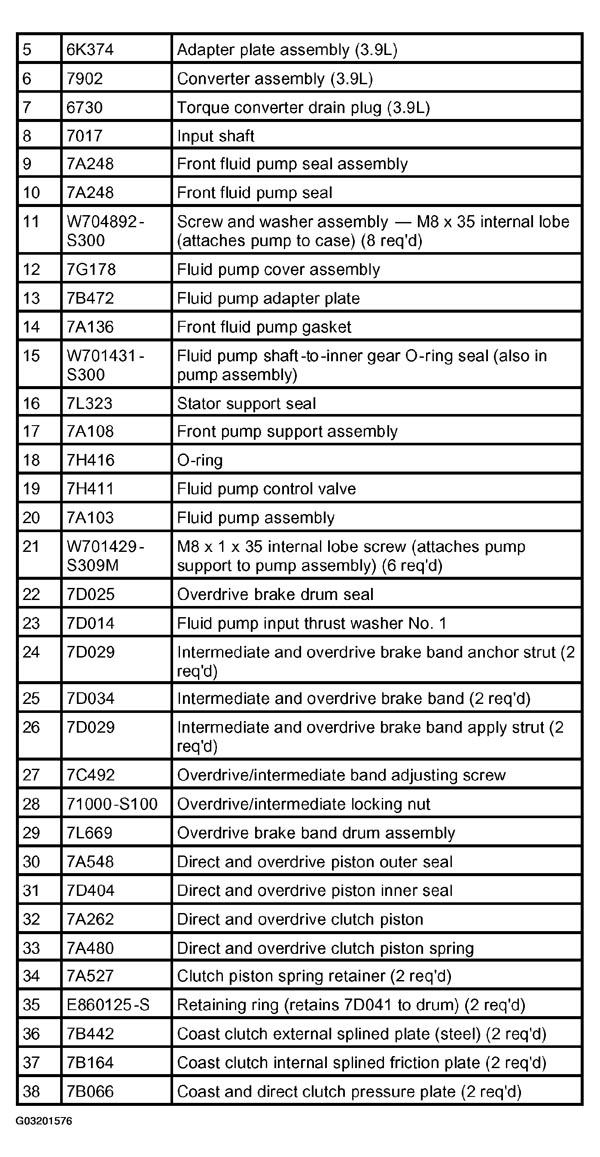

Fig 2: Identifying Automatic Transmission - 5R55S Components (2 Of 8)

Courtesy of FORD MOTOR CO.

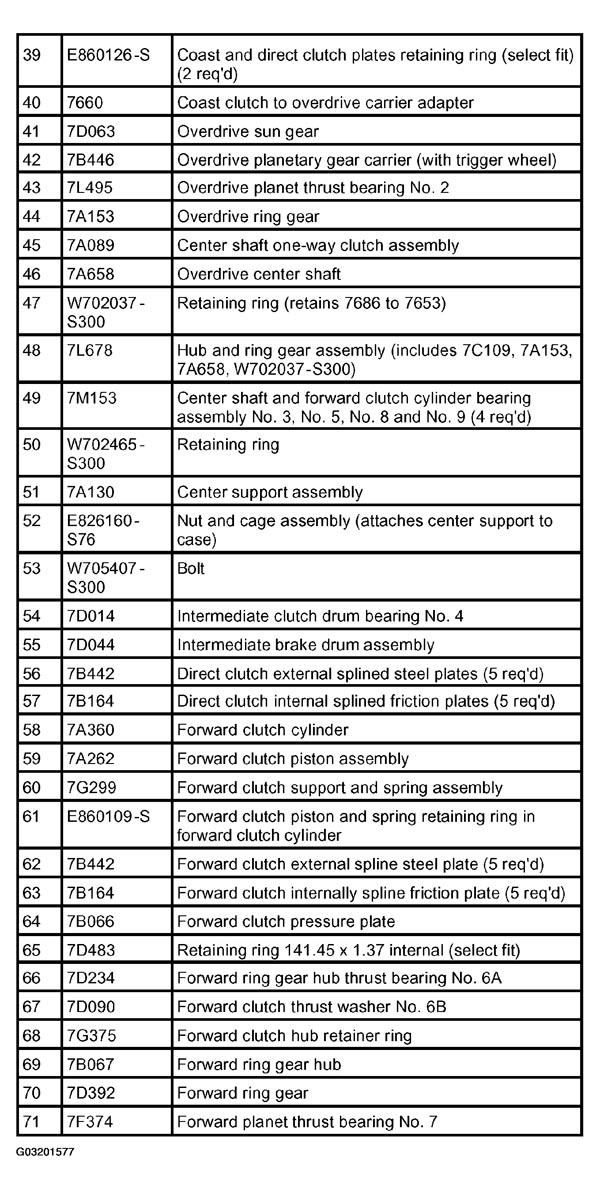

Fig 3: Identifying Automatic Transmission - 5R55S Components (3 Of 8)

Courtesy of FORD MOTOR CO.

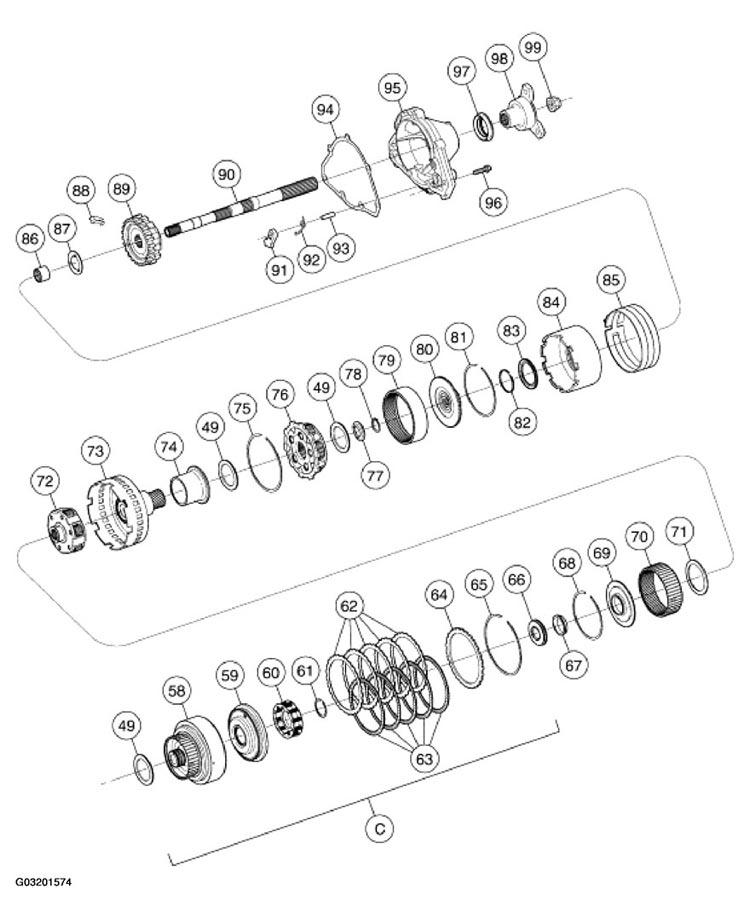

Fig 4: Identifying Automatic Transmission - 5R55S Components (4 Of 8)

Courtesy of FORD MOTOR CO.

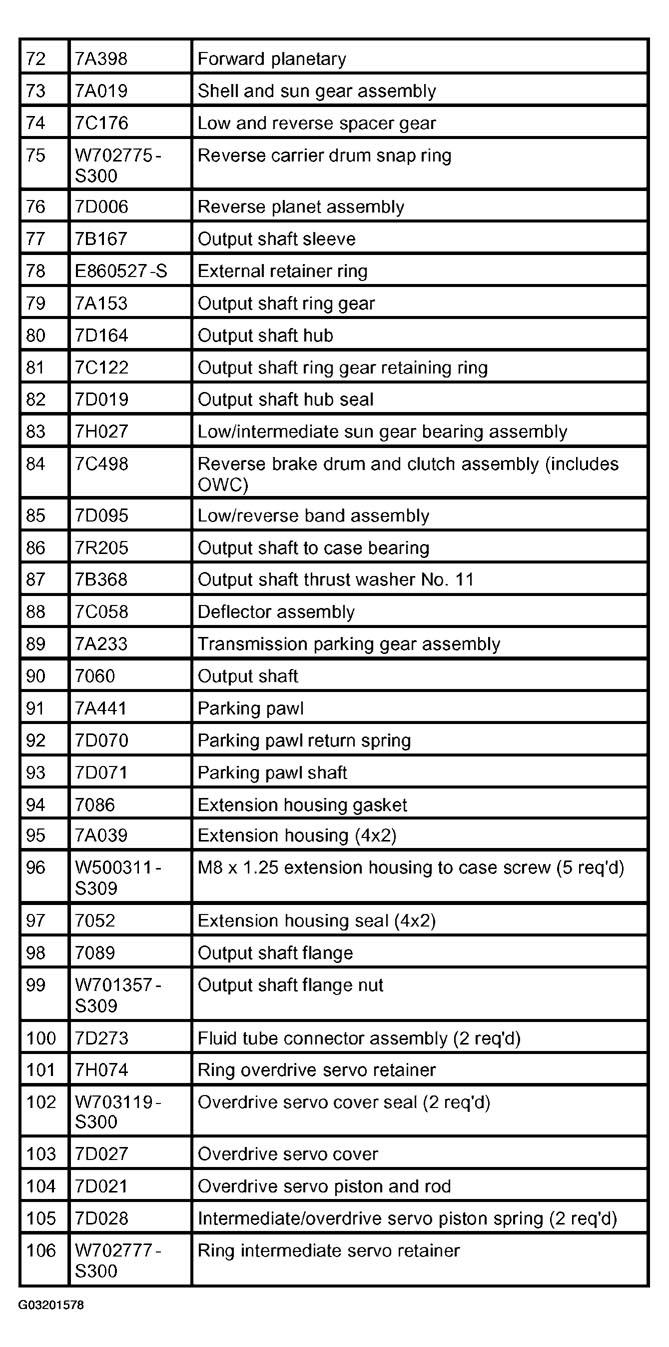

Fig 5: Identifying Automatic Transmission - 5R55S Components (5 Of 8)

Courtesy of FORD MOTOR CO.

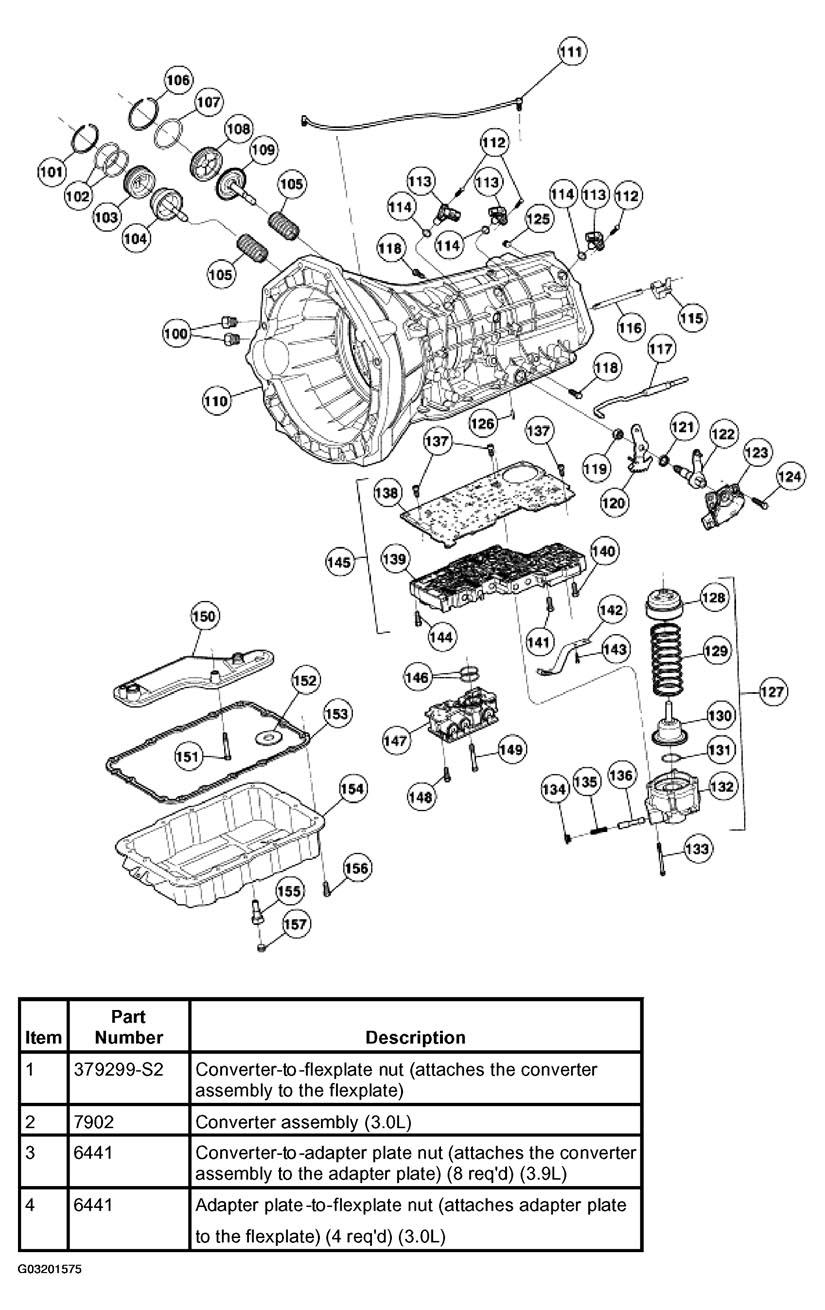

Fig 6: Identifying Automatic Transmission - 5R55S Components (6 Of 8)

Courtesy of FORD MOTOR CO.

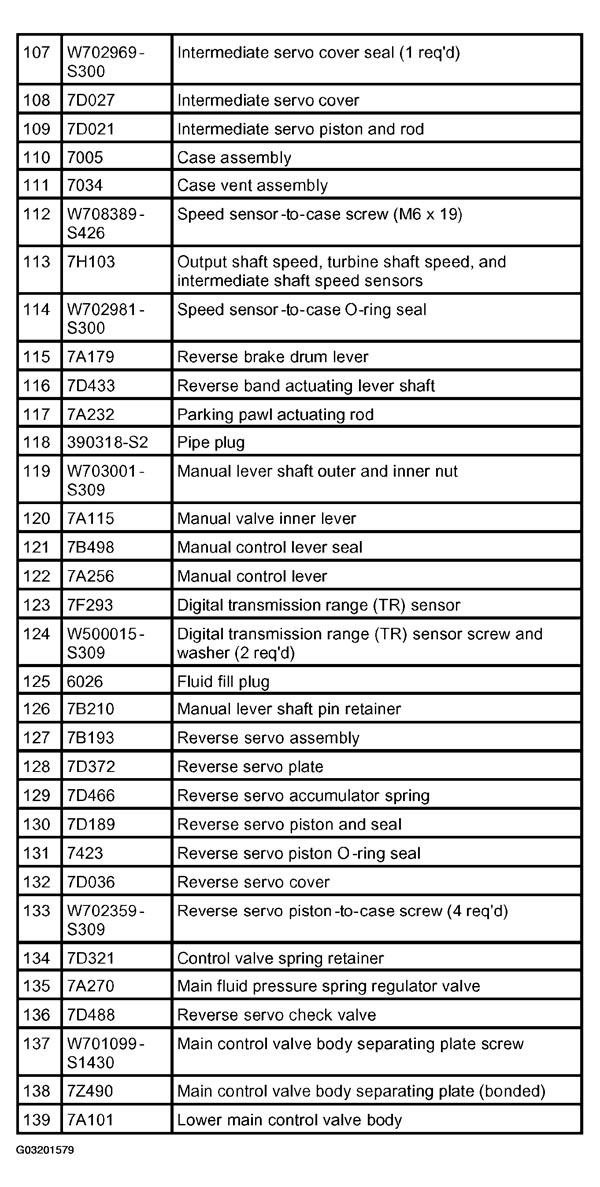

Fig 7: Identifying Automatic Transmission - 5R55S Components (7 Of 8)

Courtesy of FORD MOTOR CO.

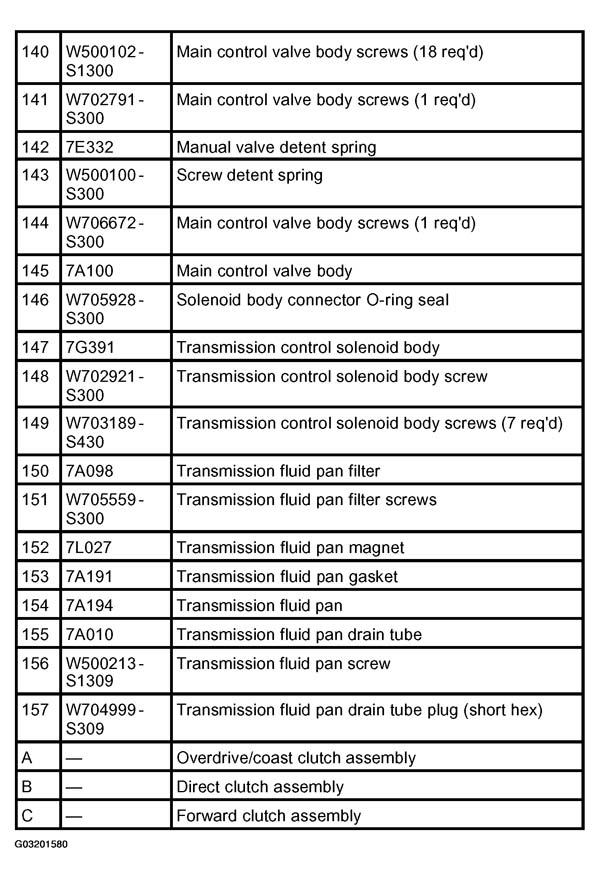

Fig 8: Identifying Automatic Transmission - 5R55S Components (8 Of 8)

Courtesy of FORD MOTOR CO.
