Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH or RH valve cover. For additional information, refer to ENGINE - 3.9L to continue the diagnosis.
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

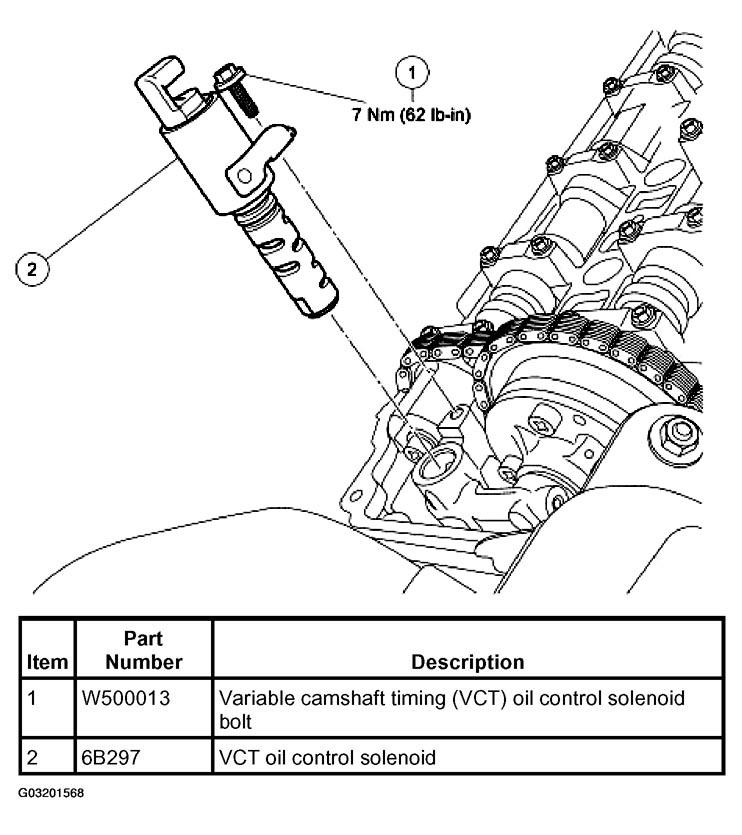

    Fig 1: Removing Variable Camshaft Timing Oil Control Solenoid
    G03201568Courtesy of FORD MOTOR CO.
