Starter Motor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When carrying out maintenance on the starting system be aware that the heavy gauge leads are connected directly to the battery. Make sure the protective caps are in place when maintenance is completed.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
  2. Disconnect the battery ground cable.
  3. Remove the components in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure.

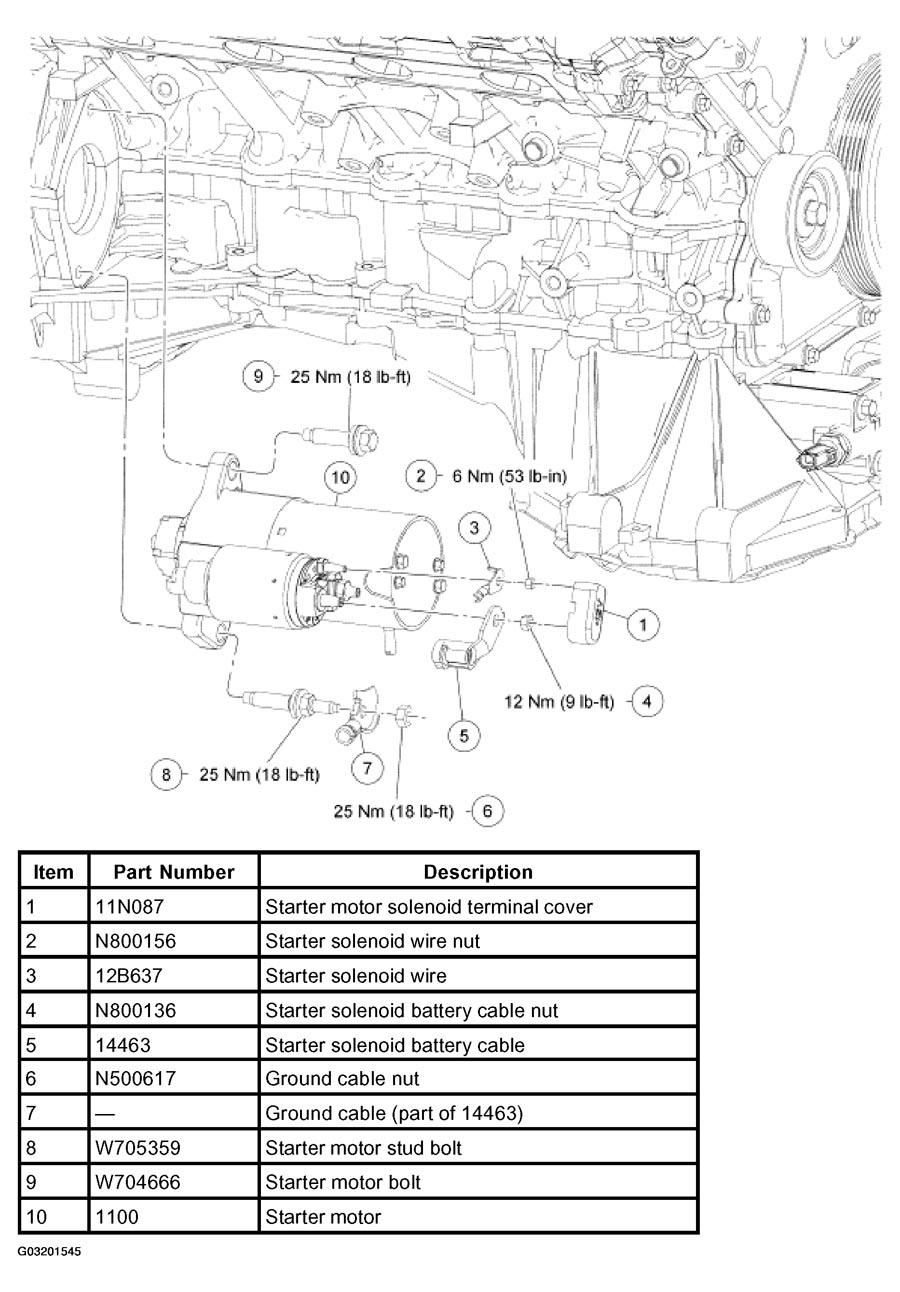

    Fig 1: Removing Starter Motor
    G03201545Courtesy of FORD MOTOR CO.
