Knock Sensor (KS)

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the intake manifold. For additional information, refer to ENGINE - 3.9L to continue the diagnosis.
  3. Remove the components in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure.

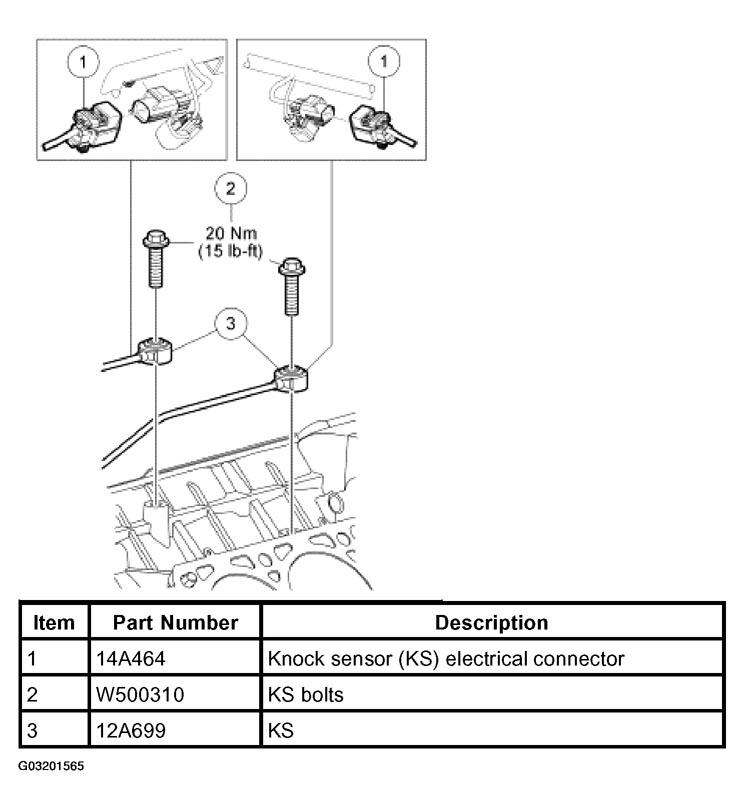

    Fig 1: Removing Knock Sensor (KS)
    G03201565Courtesy of FORD MOTOR CO.
