Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
  2. Disconnect the battery ground cable.
  3. Remove the components in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure.

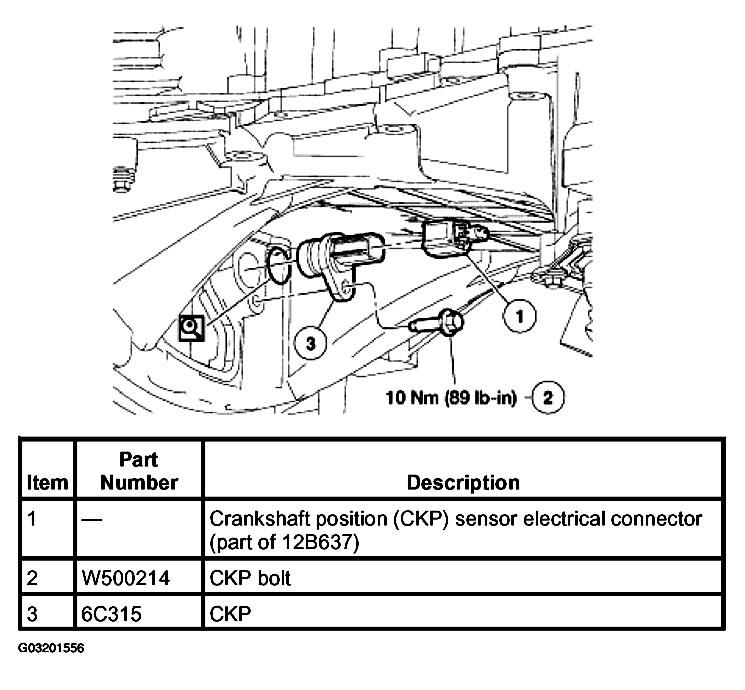

    Fig 1: Removing Crankshaft Position (CKP) Sensor
    G03201556Courtesy of FORD MOTOR CO.
