Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

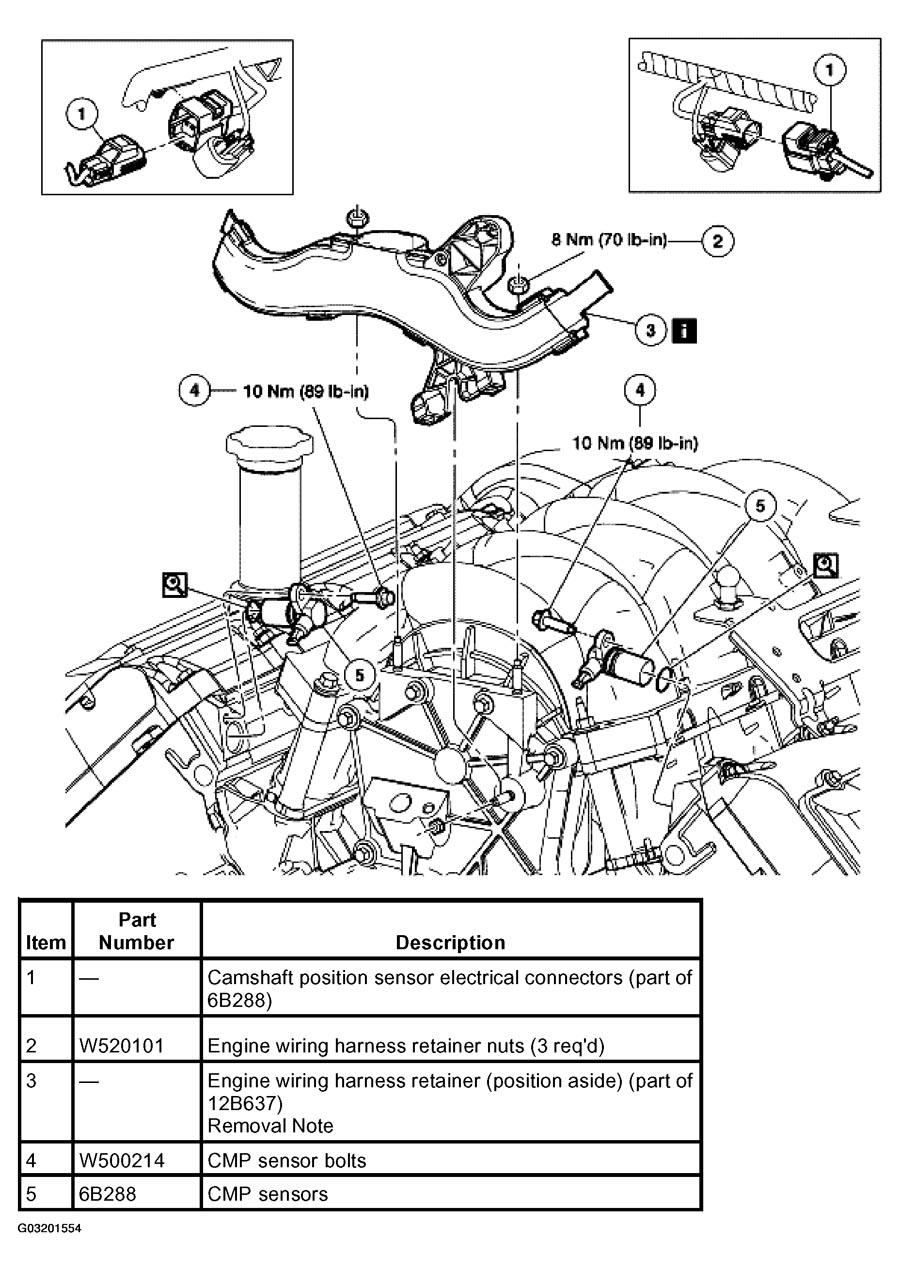

Fig 1: Identifying Camshaft Position (CMP) Sensor
Courtesy of FORD MOTOR CO.

Item 3: Engine Wiring Harness Retainer Removal Note

Remove the ground strap retainer and position the ground strap aside.

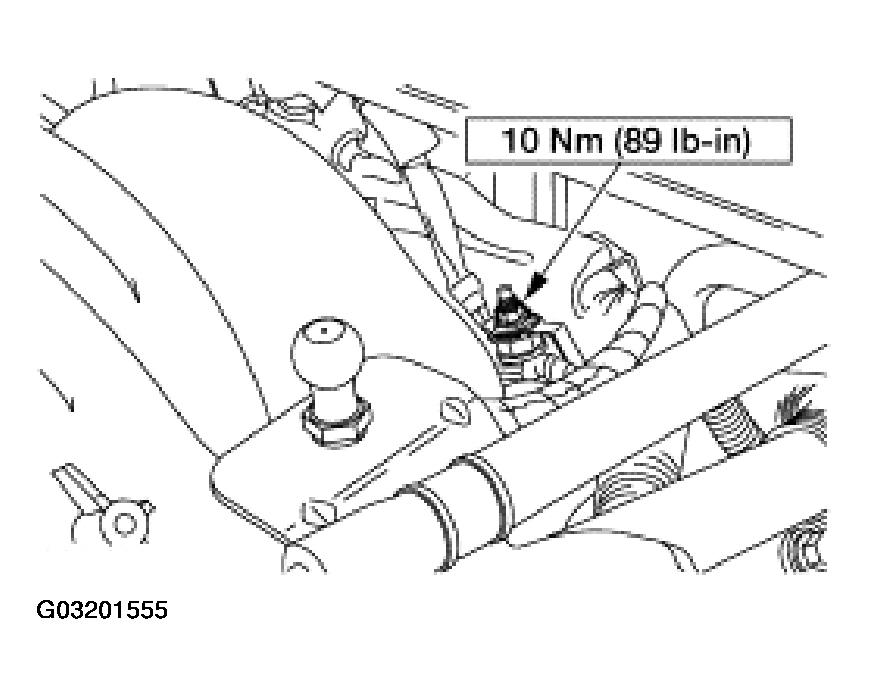

Fig 2: Removing Ground Strap Retainer And Positioning Ground Strap Aside
Courtesy of FORD MOTOR CO.
