Air Cleaner Assembly

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out only the listed steps

COMPONENT CHART

Component	Steps
Air cleaner outlet pipe	1-6
Air cleaner element	1-4, 6-7 and 10
Air cleaner outlet tube and cover assembly	1-4, 6-7 and 10
Air cleaner	1-4, 6-7 and 10

To install, reverse the removal procedure.

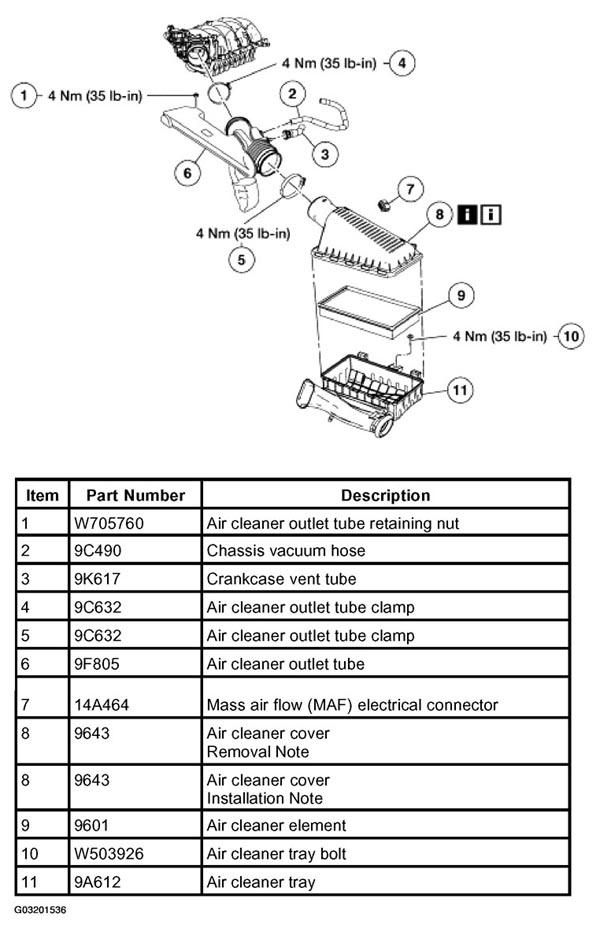

Fig 1: Exploded View Of Air Cleaner Assembly
Courtesy of FORD MOTOR CO.

Item 8: Air Cleaner Cover Removal Note

NOTE: The air cleaner assembly must be removed to service the air filter element.

Release the snaps and separate the air cleaner cover from the air cleaner tray.

Item 8: Air Cleaner Cover Installation Note

NOTE: No tools are needed to install the air cleaner cover. Installation should be carried out using hands only.

Use the five alignment tabs to correctly align the air cleaner cover to the air cleaner tray.
