Starter Motor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When carrying out maintenance on the starting system be aware that the heavy gauge leads are connected directly to the battery. Make sure the protective caps are in place when maintenance is completed.

Disconnect the battery ground cable.
With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to LIFTING .
Remove the components in the order indicated in the following illustration and table. See Fig 1.
To install, reverse the removal procedure.

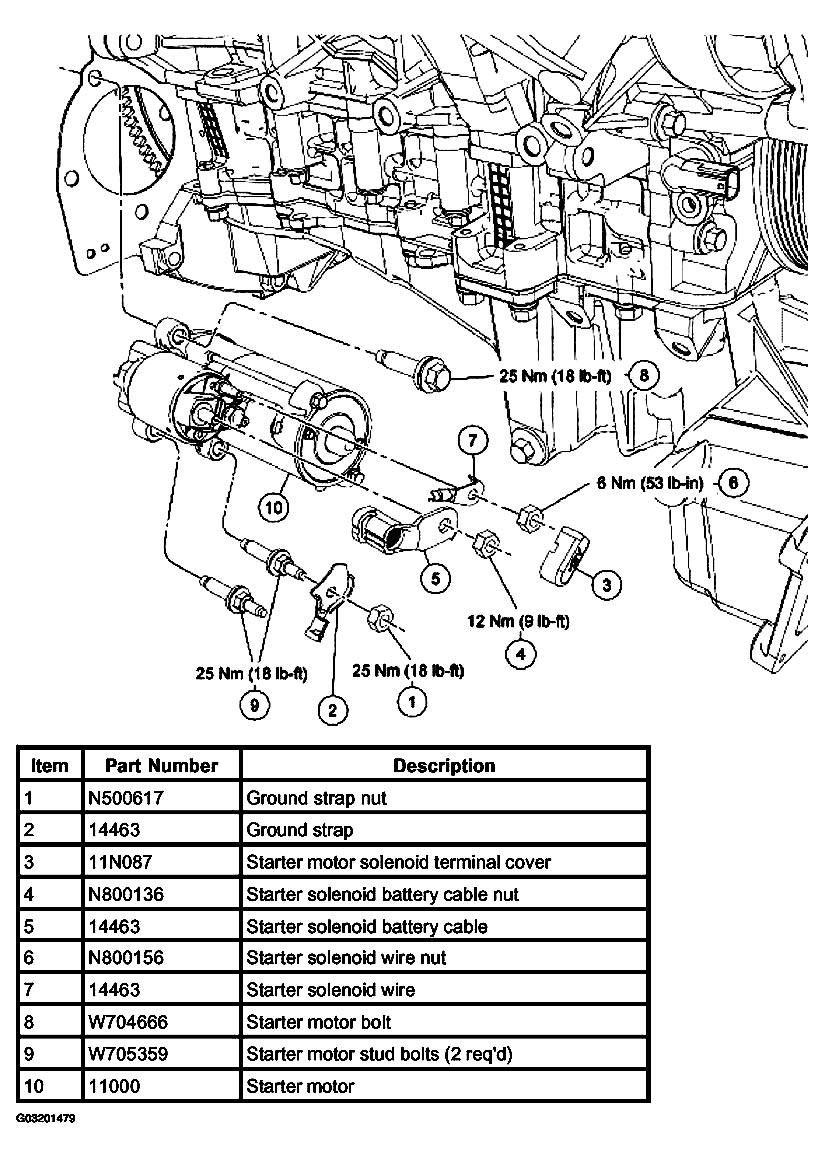

Fig 1: Removing Starter Motor
Courtesy of FORD MOTOR CO.
