Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the cabin air filter plenum. For additional information, refer to ENGINE COOLING .
Remove the glove compartment. For additional information, refer to INTERIOR TRIM .
Illustration 1 of 2. Remove the components in the order indicated in the following illustration and table. See Fig 1.

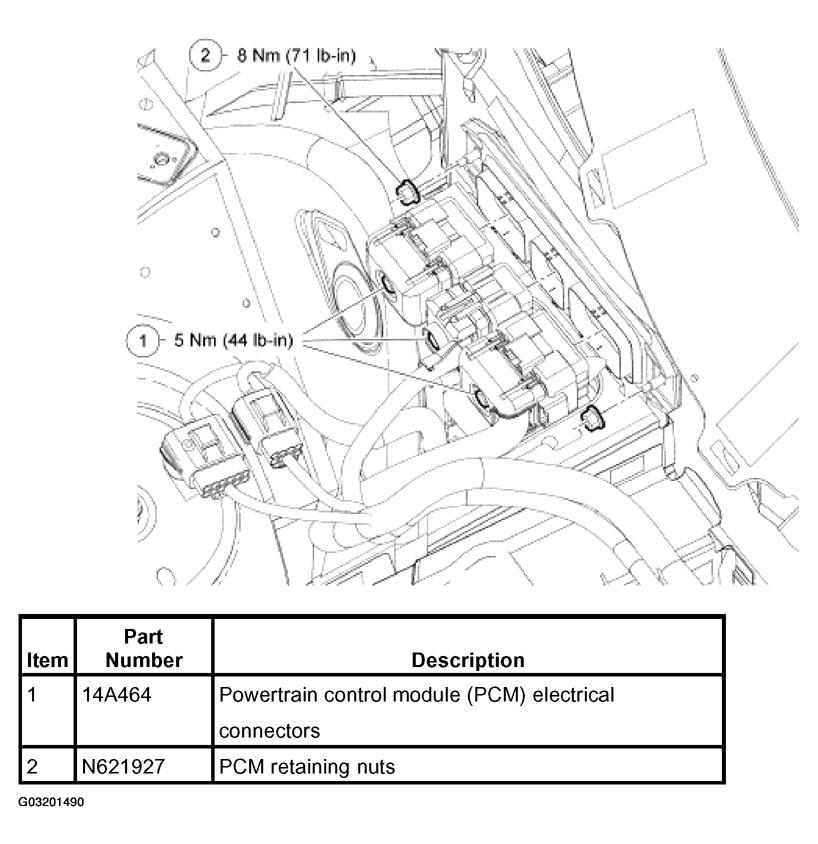

Fig 1: Removing Powertrain Control Module (PCM) Electrical Connector
Courtesy of FORD MOTOR CO.
Illustration 2 of 2. Remove the components in the order indicated in the following illustration and table. See Fig 2.

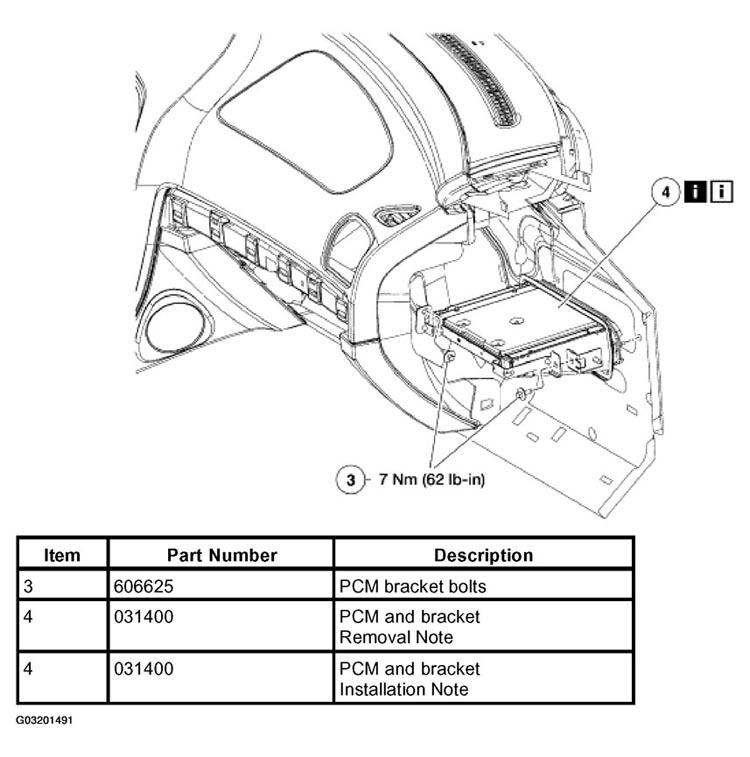

Fig 2: Removing PCM And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Connect the scan tool.
Select ignition control module (ICM).
Select ENTER SECURITY ACCESS. Wait 10 minutes for security access to be granted.
Select PARAMETER RESET.
Disconnect the scan tool.
Place the ignition key in the OFF position.
Place the ignition key in the RUN position.
Remove the ignition key.

Item 4: PCM and Bracket Removal Note

Remove the PCM and bracket as an assembly through the glove compartment opening.

Item 4: PCM and Bracket Installation Note

Install the PCM and bracket as an assembly through the glove compartment opening.
