Mass Air Flow (MAF) Sensor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the components in the order indicated in the following illustration and table. See Fig 1.
  3. To install, reverse the removal procedure.

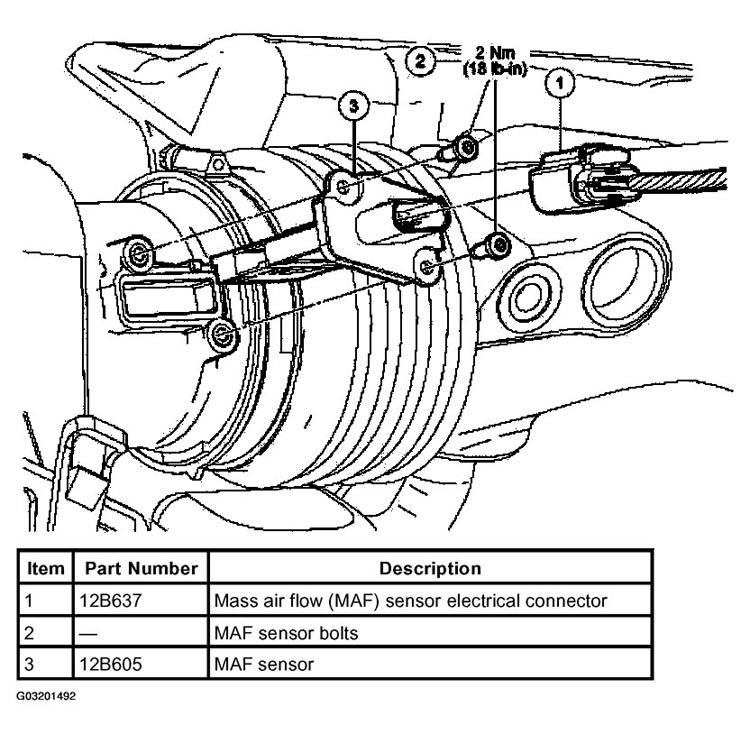

    Fig 1: Removing Mass Air Flow (MAF) Sensor
    G03201492Courtesy of FORD MOTOR CO.
