Knock Sensor (KS)

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the lower intake manifold. For additional information, refer to ENGINE - 3.0L (4V) .
Remove the components in the order indicated in the following illustration and table. See Fig 1.
To install, reverse the removal procedure.

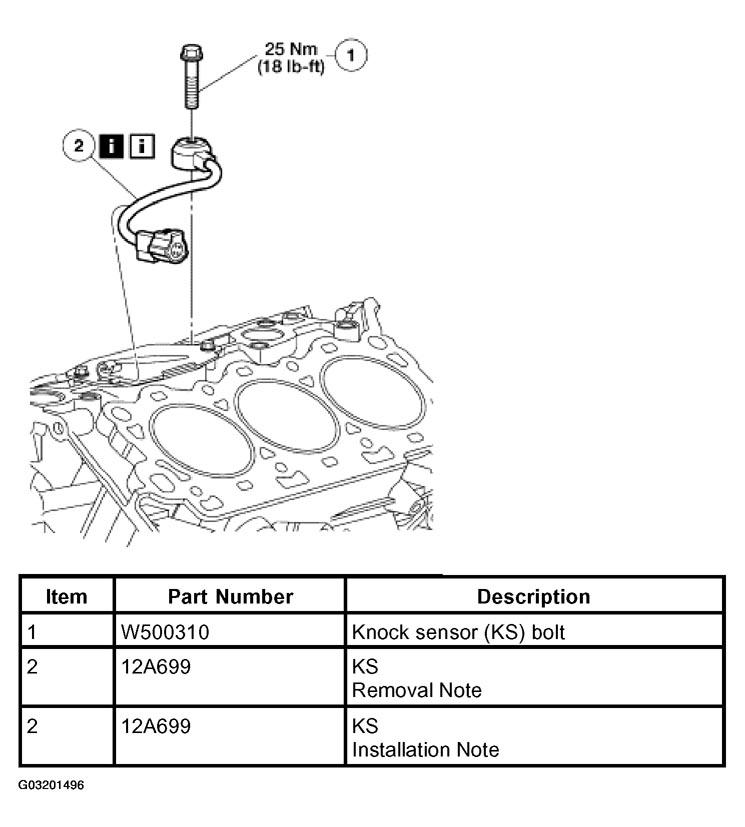

Fig 1: Removing Knock Sensor (KS)
Courtesy of FORD MOTOR CO.

Item 2: KS Removal Note

Release the KS harness from the retaining clip before removing the KS.

Item 2: KS Installation Note

Attach the KS harness to the retaining clip after installing KS.
