Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper intake manifold. For additional information, refer to ENGINE - 3.0L (4V) .

Remove the components in the order indicated in the following illustration and table. See Fig 1. To remove individual components only carry out the listed steps. See COMPONENT CHART .

COMPONENT CHART

Component	Steps
Ignition coil	1-3
Sparkplug	1-4

To install, reverse the removal procedure.

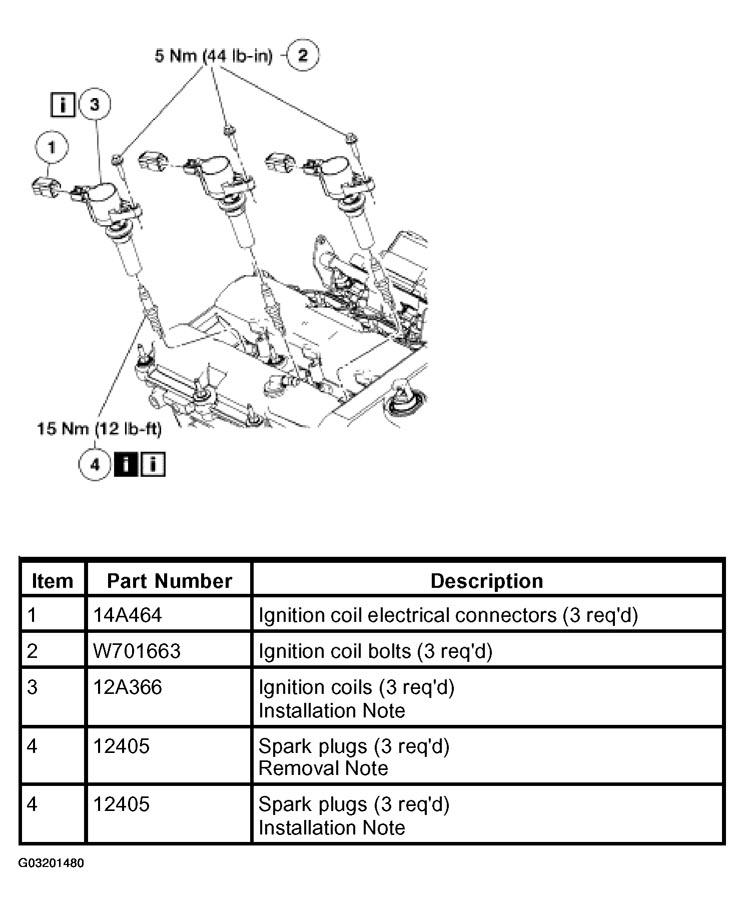

Fig 1: Identifying Ignition Coil-On-Plug And Spark Plug - RH
Courtesy of FORD MOTOR CO.

Item 4: Spark Plug Removal Note

Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

Item 4: Spark Plug Installation Note

Inspect the spark plugs and adjust the spark plug gap as necessary.

Fig 2: Identifying Spark Plug Gap
Courtesy of FORD MOTOR CO.

Item 3: Ignition Coil Installation Note

Apply silicone dielectric compound to the inside of the ignition coil boots before installing.
