Fuel Charging Wiring Harness
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components the fuel system pressure must be relieved. Failure to do so can result in personal injury.
- Disconnect the battery ground cable.
- Remove the lower intake manifold. For additional information, refer to ENGINE - 3.0L (4V) .

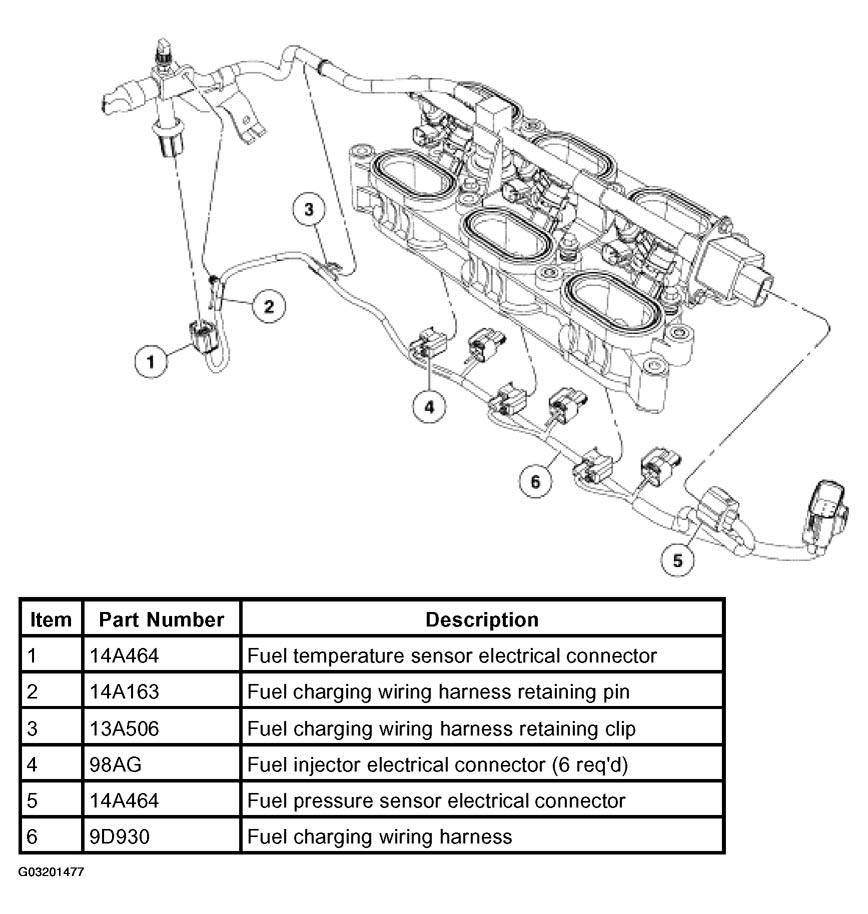

- Remove the components in the order indicated in the following illustration and table. See Fig 1.
- To install, reverse the removal procedure.
