Connector Circuit Reference
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

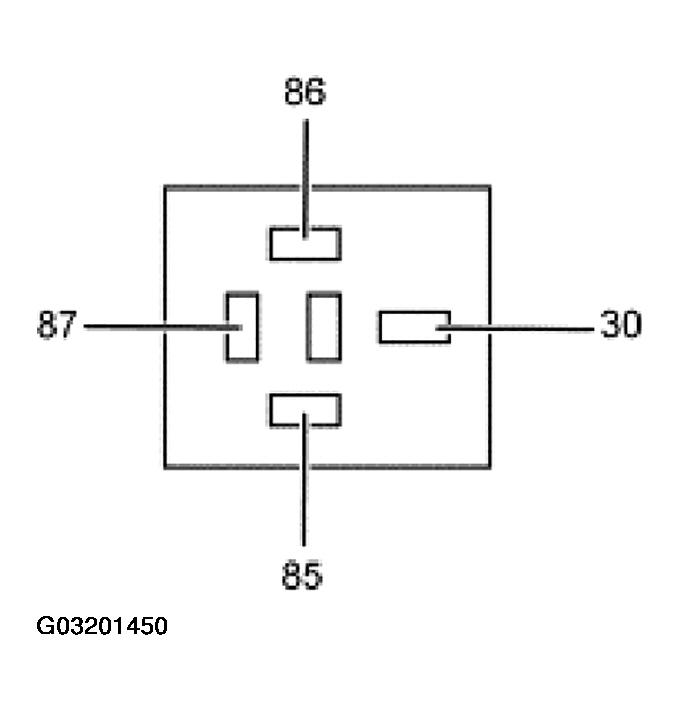

STARTER MOTOR RELAY REFERENCE CHART
| Pin Number(s) | Circuit Designation/Description Normal | Condition/Measurement |
|---|---|---|
| 85 | CKT 31S-BB12 (BK/YE) starter motor relay to instrument cluster | 10,000 ohms or greater to chassis ground and 0 volts. |
| 87 | CKT 50-BB10 (GY/BK) starter motor relay to starter motor S terminal | Greater than 10 volts with ignition in the START position. |
| 86 | CKT 50S-BB12 (GY) starter motor relay to transmission range (TR) sensor | Greater than 10 volts with ignition in START position. |
| 30 | CKT 30-BB13 (RD) starter motor relay to power distribution box (PDB). | Greater than 10 volts with ignition in START position. |

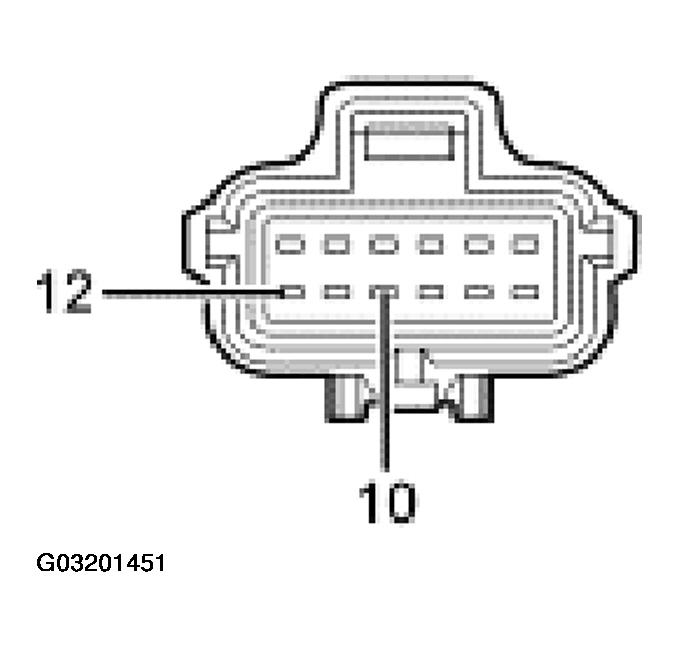

(TR) SENSOR REFERENCE CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 12 | CKT 50S-BB12 (GY) TR sensor to starter relay pin 86 | 10 volts or greater in START position. |
| 10 | CKT 50-BB15 (GY/OG) TR sensor to CJB fuse 201 (5A) | 10 volts or greater in START position. |

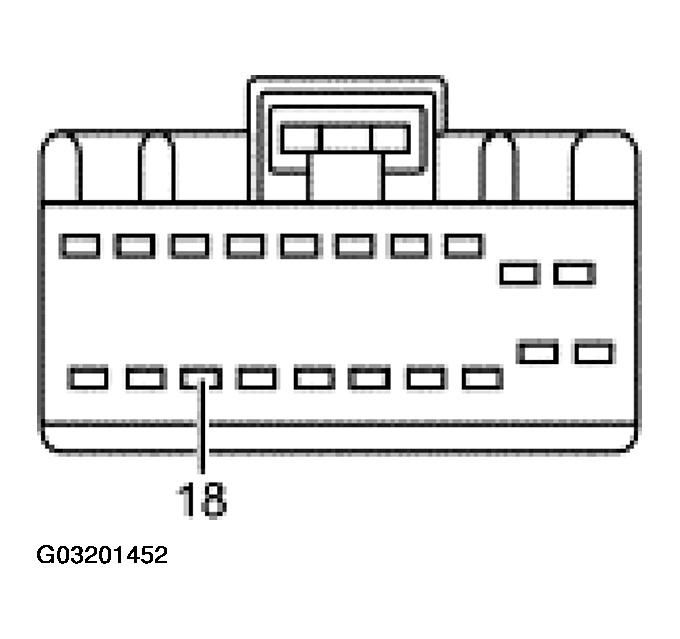

INSTRUMENT CLUSTER REFERENCE CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 18 | CKT 31S-BB12 (BK/YE) instrument cluster to starter motor relay | 10,000 ohms or greater to chassis ground and 0 volts. |

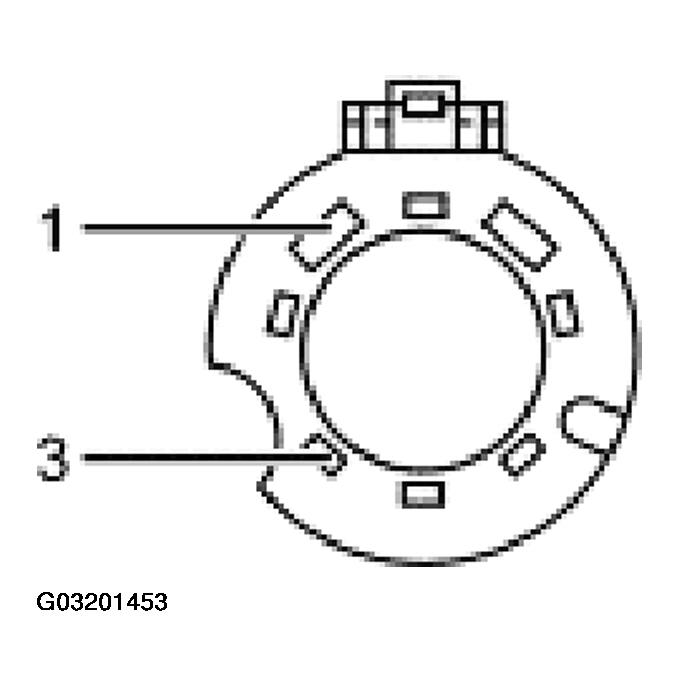

IGNITION SWITCH REFERENCE CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 30-BB9 (RD) ignition switch to PDB fuse 22 (20A) | 10 volts or greater at all times. |
| 3 | CKT 50-DD5 (GY/BK) ignition switch to CJB fuse 201 (5A) | 10 volts or greater in START position. |
