Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this section.
Remove the thermostat housing. For additional information, refer to THERMOSTAT HOUSING - 3.9L in this section.
Remove the accessory drive belt. For additional information, refer to ENGINE - 3.9L .
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

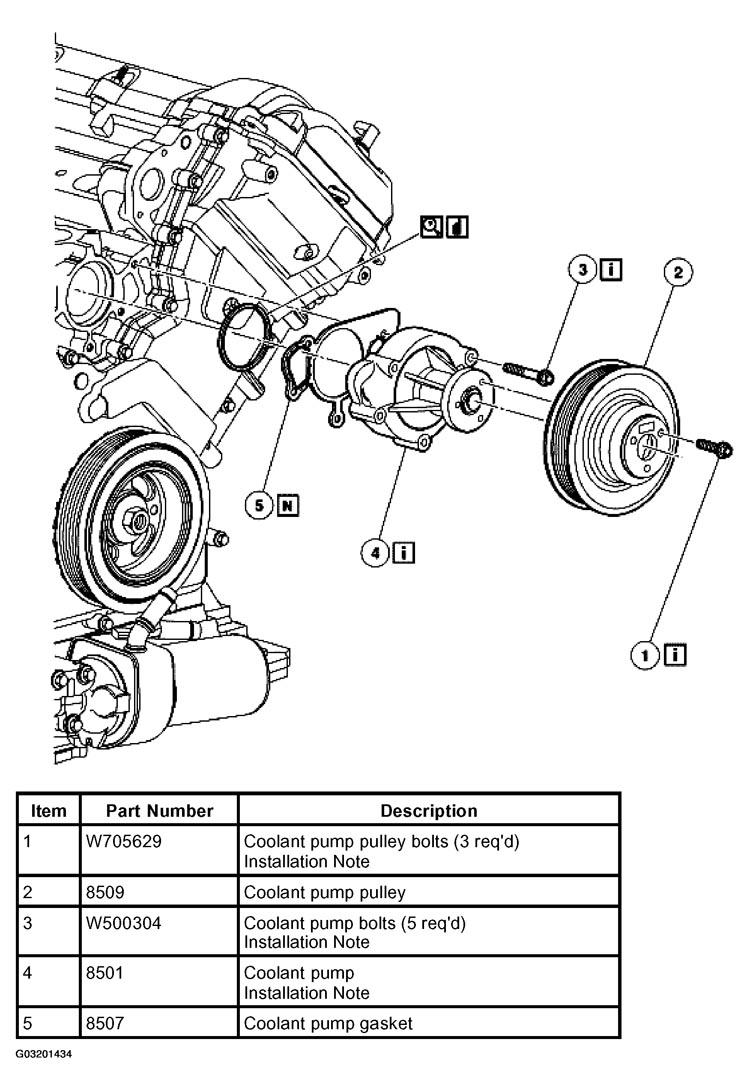

Fig 1: Water Pump - 3.9L Components Removal Sequence
Courtesy of FORD MOTOR CO.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this section.

Item 4: Coolant Pump Installation Note

Install a new gasket and inspect and lubricate the O-ring seal with clean engine coolant before installing the pump.

Item 3: Coolant Pump Bolts Installation Note

Tighten the bolts to 8 N.m (71 lb-in), then rotate an additional 90 degrees.

Item 1: Coolant Pump Pulley Bolts Installation Note

Tighten the bolts to 10 N.m (89 lb-in), then rotate an additional 45 degrees.
