Thermostat Housing - 3.9L: Material
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color) |
WSS-M97B51-A1 |
- Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this section.
- Remove the engine appearance cover.
- Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.9L .
- To remove individual components, only carry out the listed steps.COMPONENT STEPS

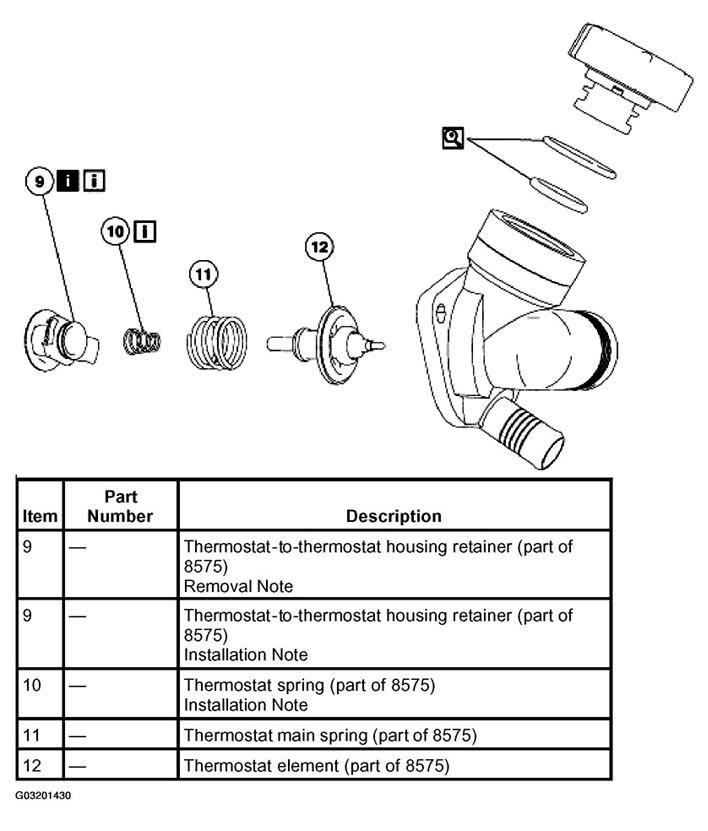

Component Steps Thermostat housing and thermostat 1-8 Thermostat 1-12 - Illustration 1 of 2. Remove the components in the order indicated in the following illustration and table. See Fig 1.

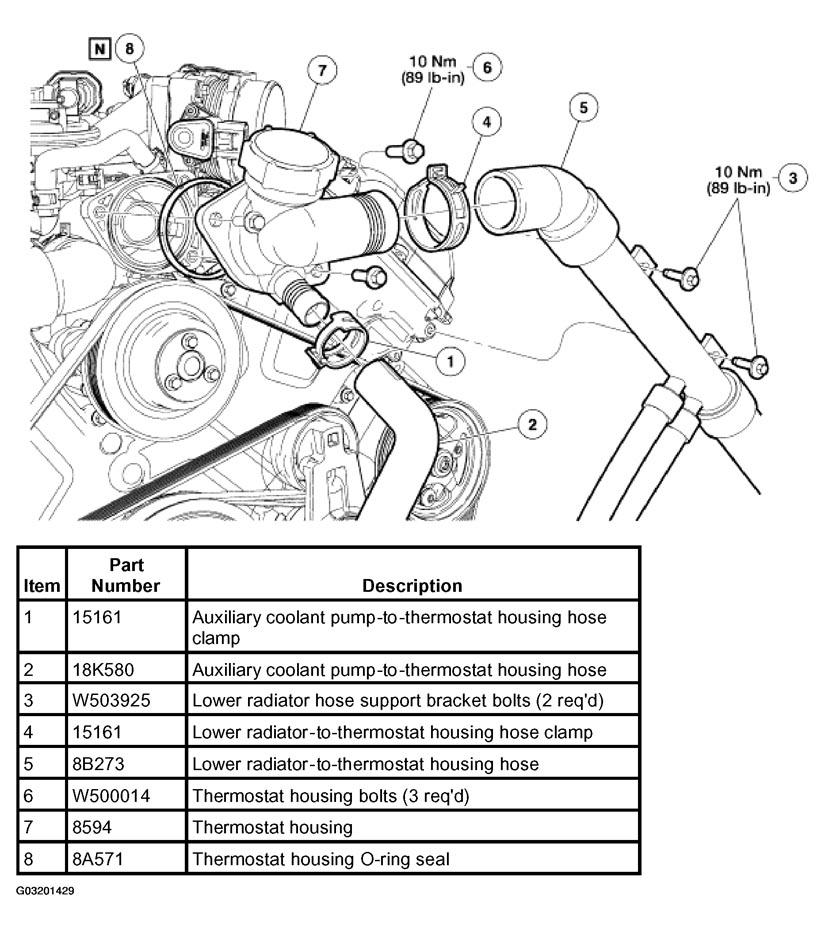

- Illustration 2 of 2. Remove the components in the order indicated in the following illustration and table. See Fig 2.
- To install, reverse the removal procedure.
- Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this section.
