Coolant Outlet Pipe - 3.9L: Material

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION

Item Specification
Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color) WSS-M97B51-A1
  1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING  in this section.
  2. Remove the thermostat housing. For additional information, refer to THERMOSTAT HOUSING - 3.9L  in this section.
  3. Remove the components in the order indicated in the following illustration and table. See Fig 1.

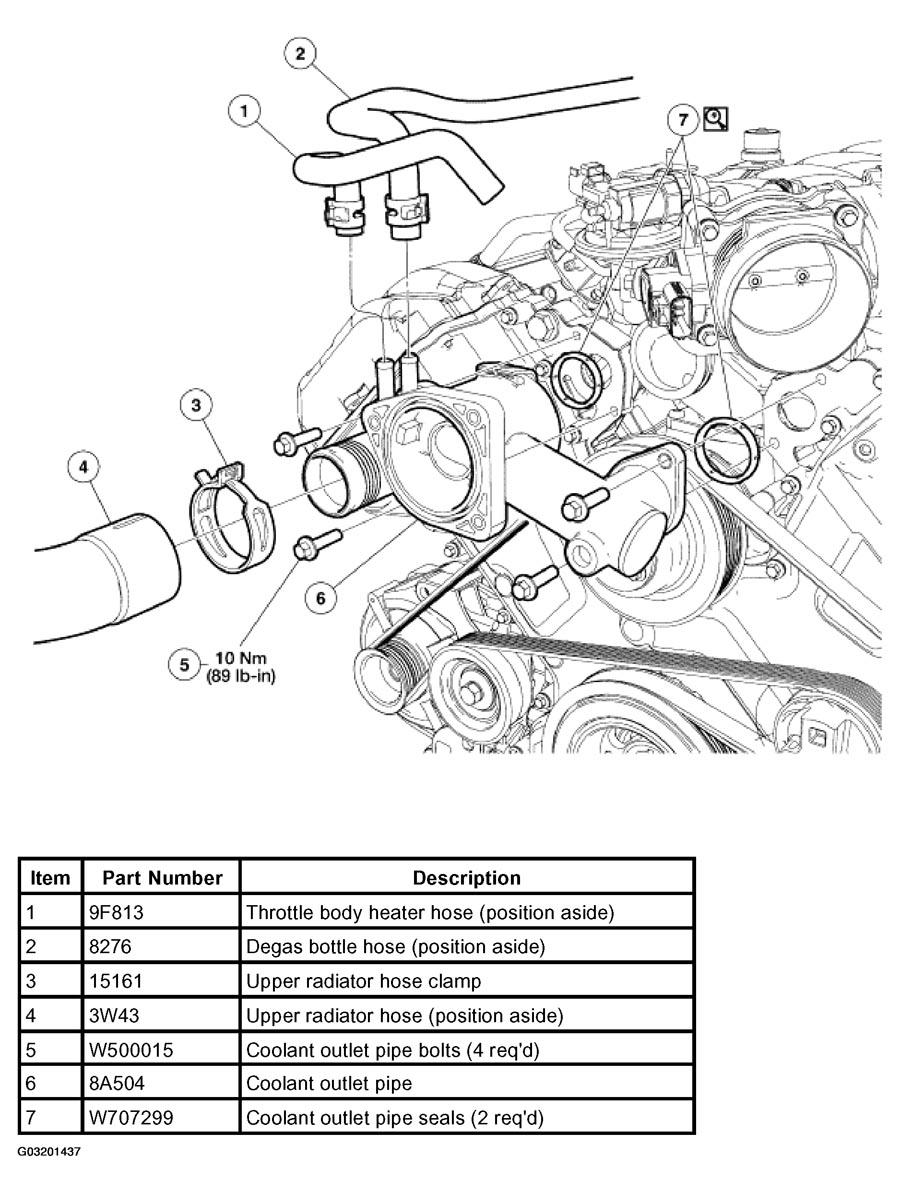

    Fig 1: Coolant Outlet Pipe - 3.9L Removal Sequence
    G03201437Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
  5. Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING  in this section.
