Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the air cleaner assembly. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.9L for additional information.
Remove the LH ignition coils. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.9L for additional information.
Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE in this section.
Release the fuel system pressure. For additional information, refer to FUEL SYSTEM .
Illustration 1 of 3. Remove the components in the order indicated in the following illustration and table. See Fig 1.

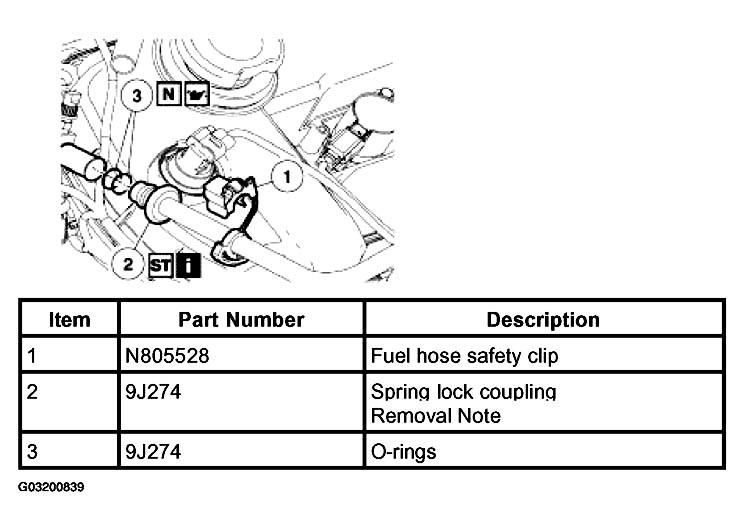

Fig 1: Removing Spring Lock Coupling
Courtesy of FORD MOTOR CO.
Illustration 2 of 3. Remove the components in the order indicated in the following illustration and table. See Fig 2.

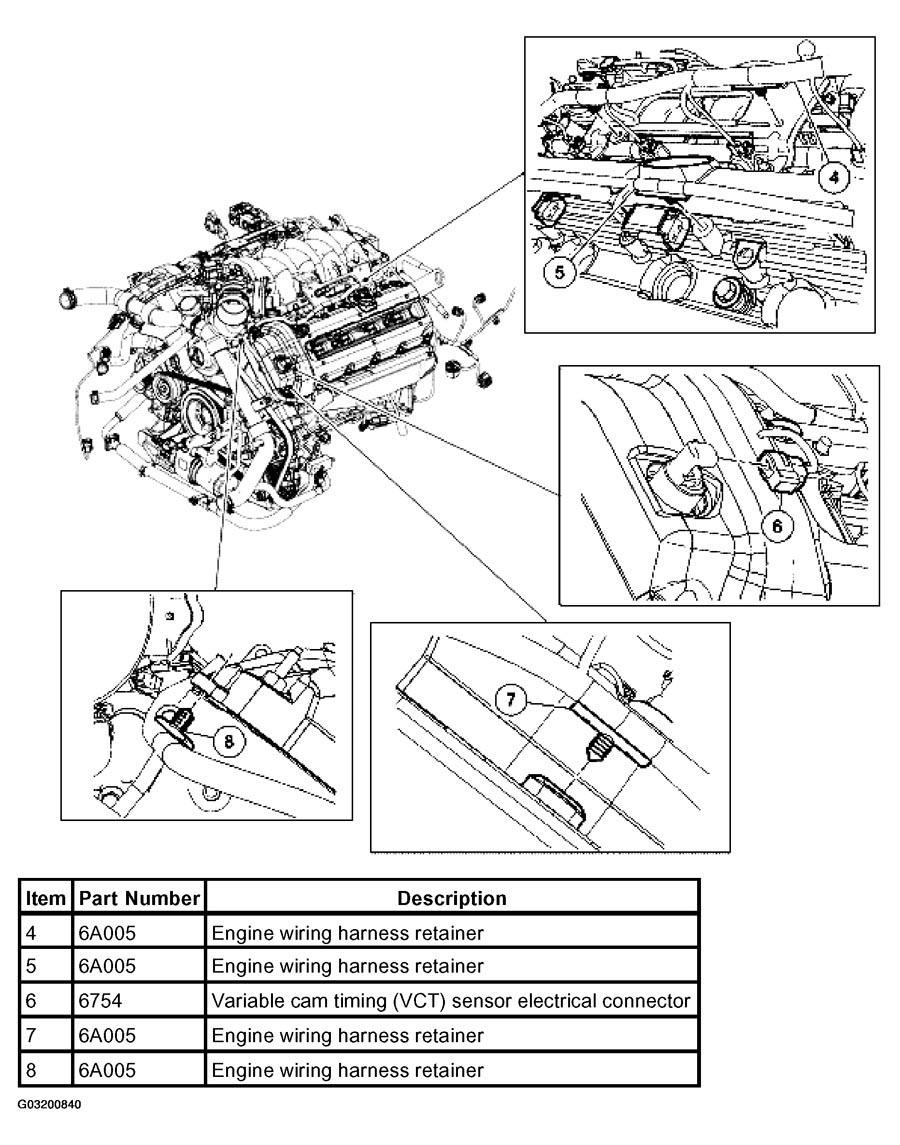

Fig 2: Removing Engine Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Illustration 3 of 3. Remove the components in the order indicated in the following illustration and table. See Fig 3.

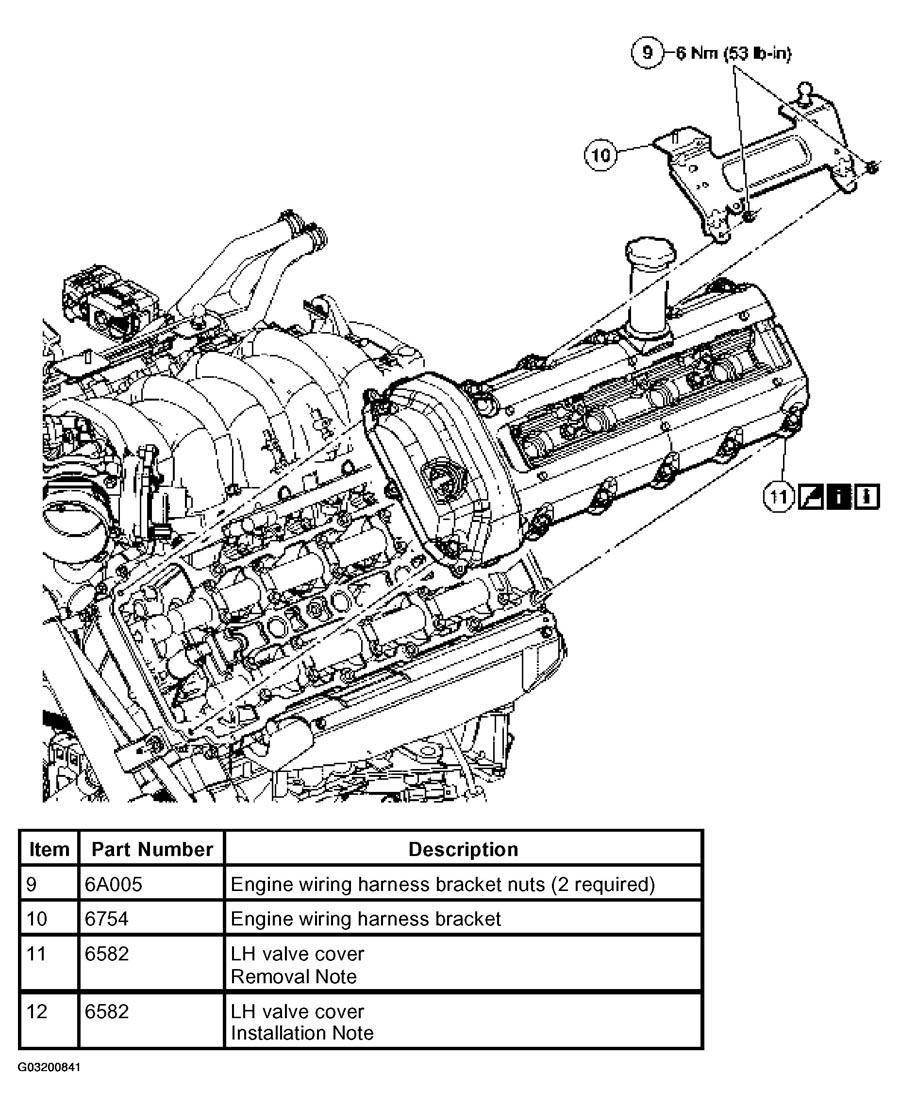

Fig 3: Removing LH Valve Cover
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: Spring Lock Coupling Removal Note

Install the special tool.

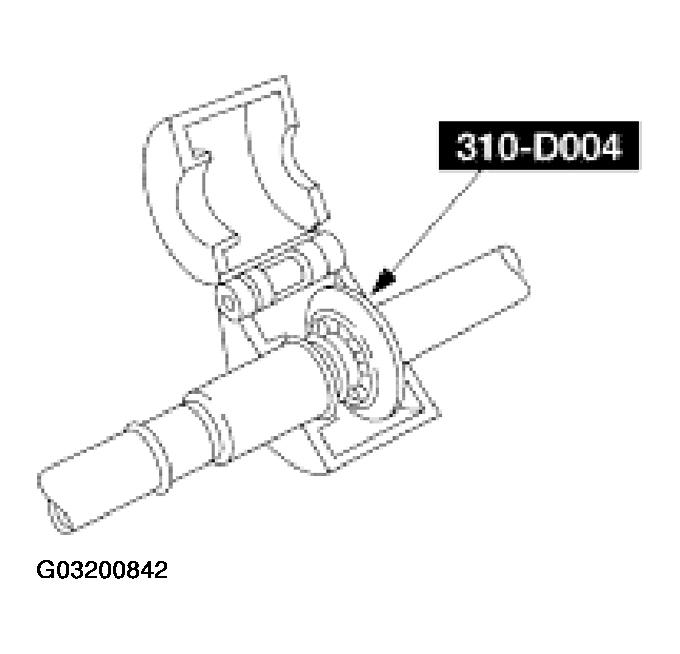

Fig 4: Installing Special Tool
Courtesy of FORD MOTOR CO.
Press the special tool into the open end of the cage.

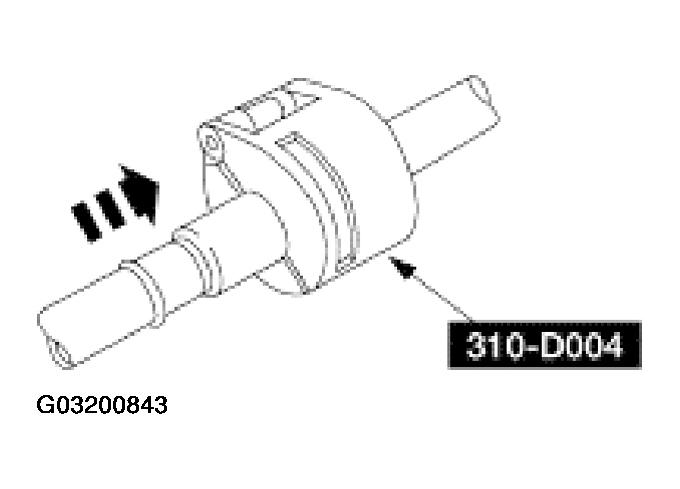

Fig 5: Pressing Special Tool Into Open End Of Cage
Courtesy of FORD MOTOR CO.
Separate the spring lock coupling.

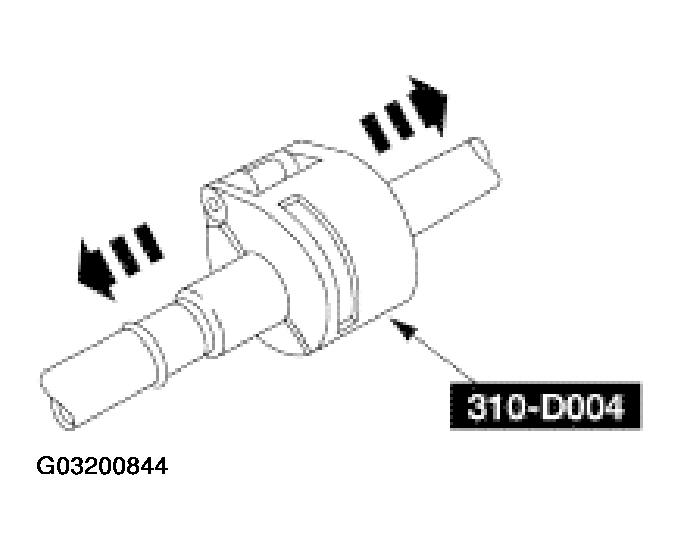

Fig 6: Separating Spring Lock Coupling
Courtesy of FORD MOTOR CO.

Item 11: LH Valve Cover Removal Note

CAUTION: To disconnect the Norma fitting, squeeze the tabs and pull straight out or damage to the fitting may occur.

Disconnect the crankcase ventilation tube.
Disconnect the evaporative emission (EVAP) canister purge valve hose.

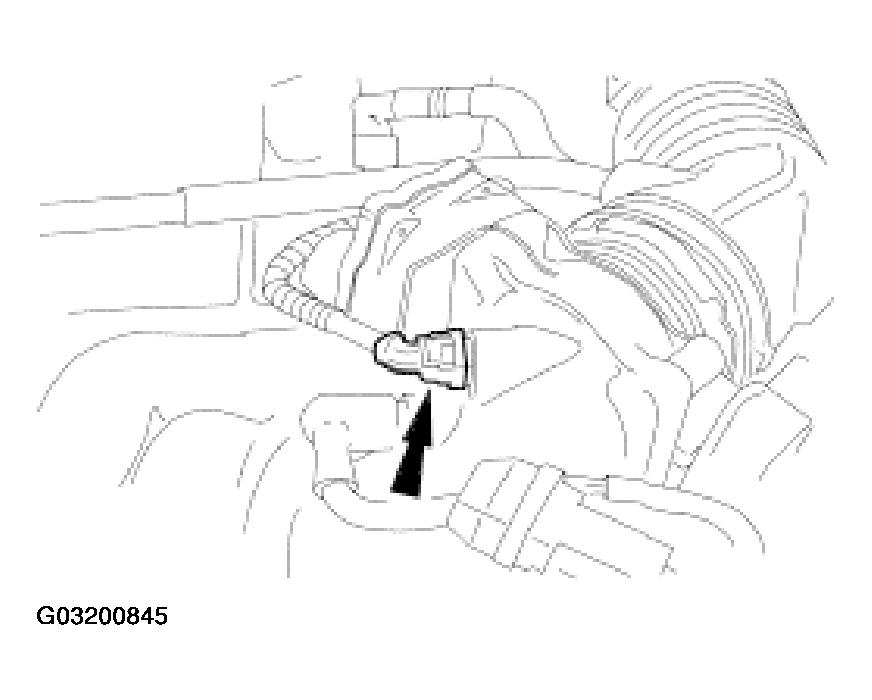

Fig 7: Disconnecting Evaporative Emission (EVAP) Canister Purge Valve Hose
Courtesy of FORD MOTOR CO.
Remove the fuel hose bracket bolt from the LH shock tower.

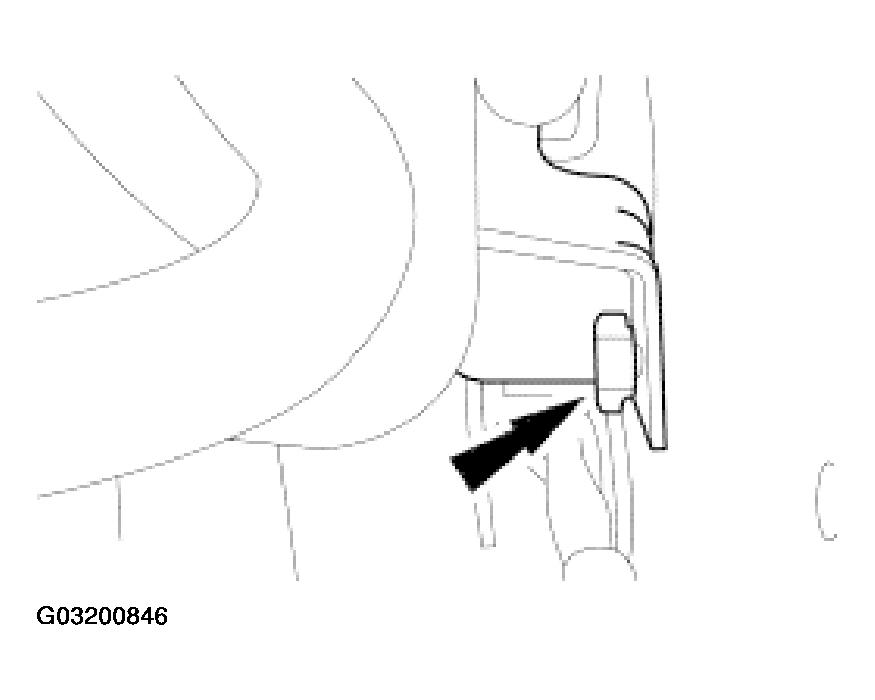

Fig 8: Removing Fuel Hose Bracket Bolt From LH Shock Tower
Courtesy of FORD MOTOR CO.
Loosen the bolts and position the power steering pump reservoir aside.

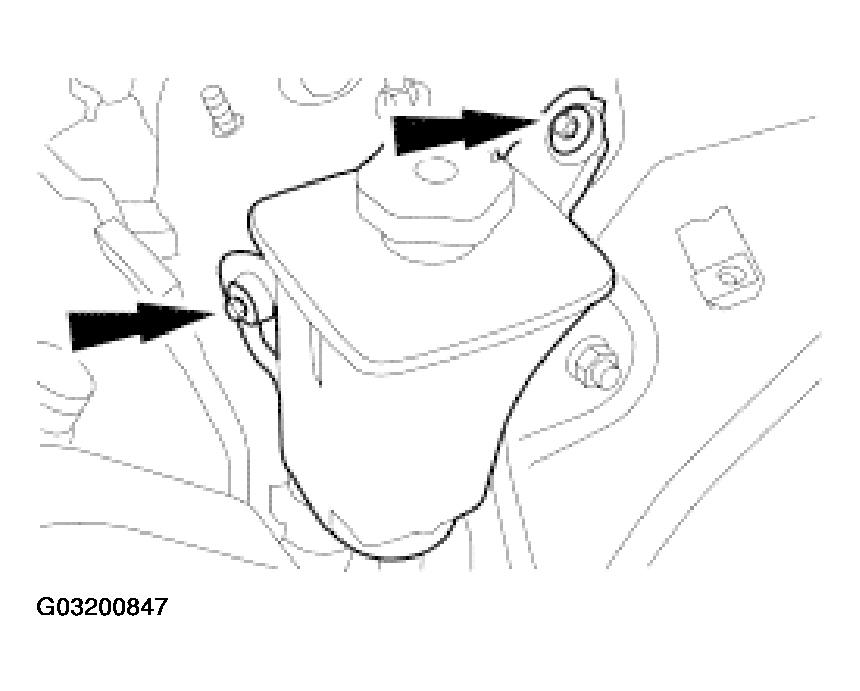

Fig 9: Loosening Bolts And Positioning Power Steering Pump Reservoir Aside
Courtesy of FORD MOTOR CO.

NOTE: The valve cover bolts are not to be removed from the valve cover.

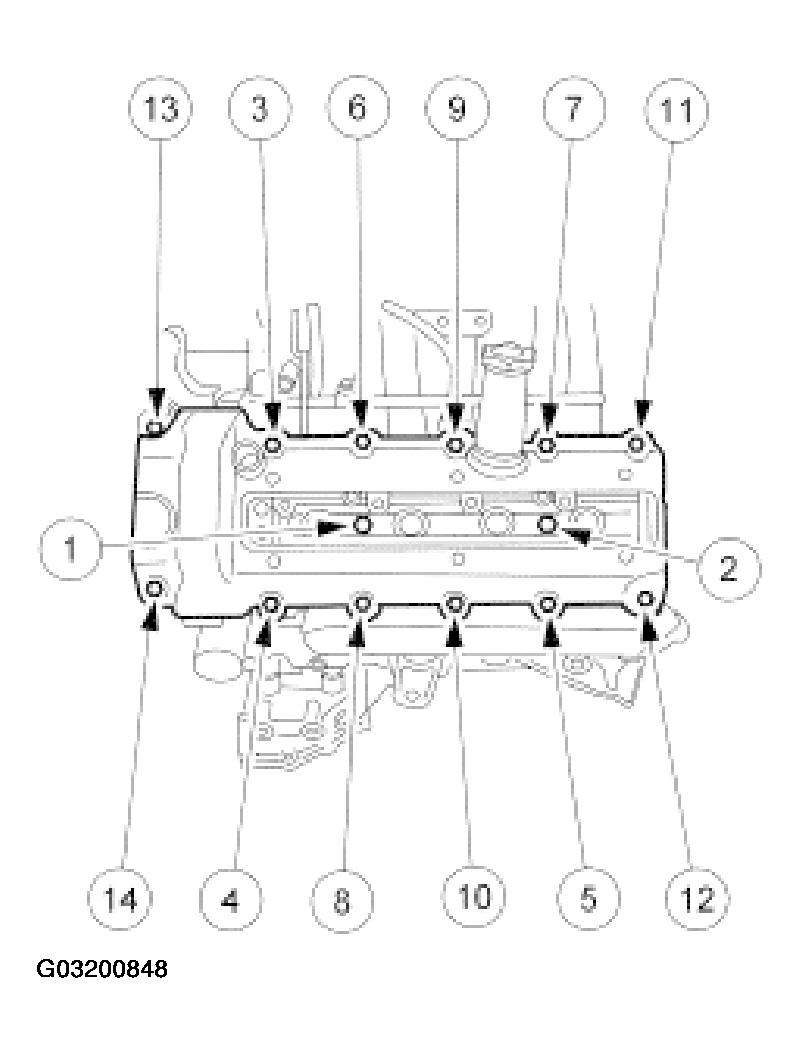

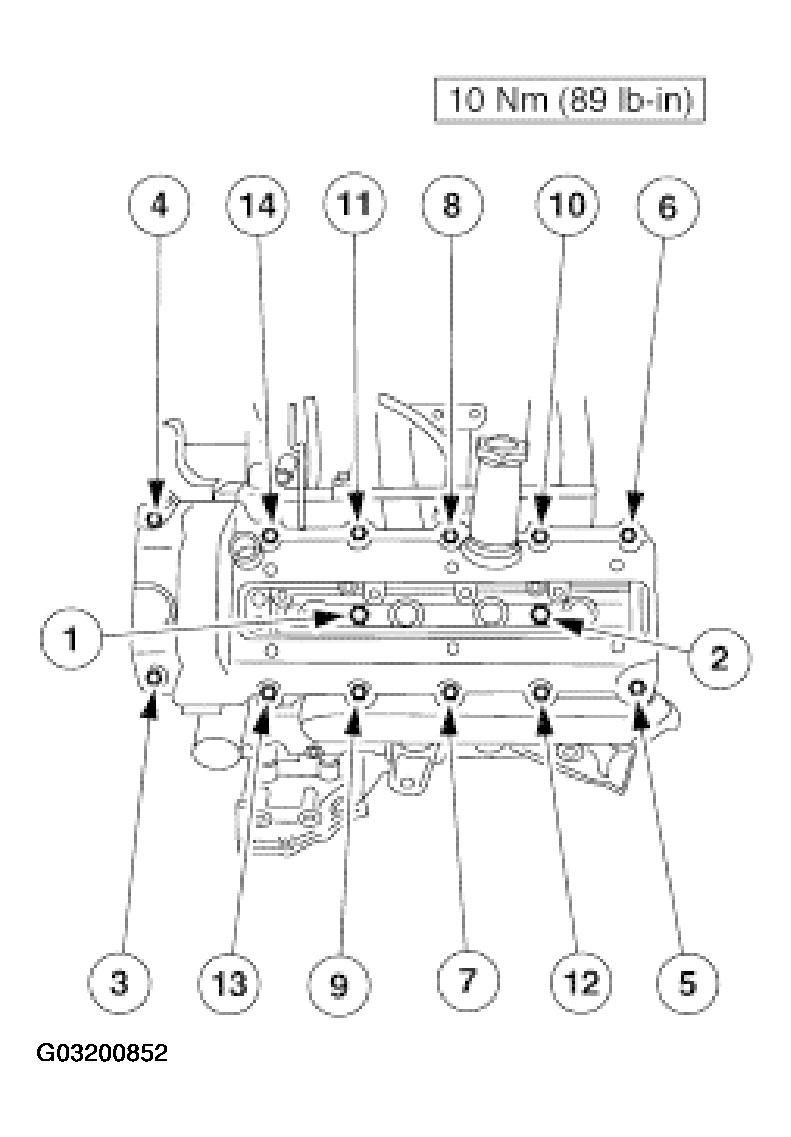

Fig 10: Identifying LH Valve Cover Bolts Removal Sequence

Courtesy of FORD MOTOR CO.

Remove the LH valve cover.
- Loosen the bolts in the sequence shown.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of sealant.

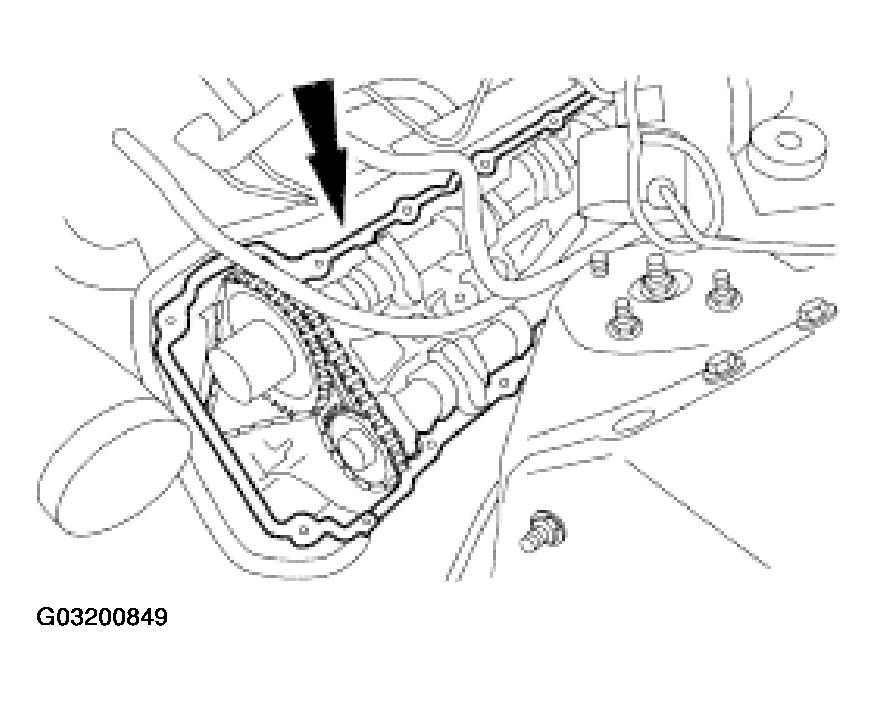

Fig 11: Locating Sealing Surfaces For Cleaning

Courtesy of FORD MOTOR CO.

Clean the sealing surfaces.
Install new gaskets.

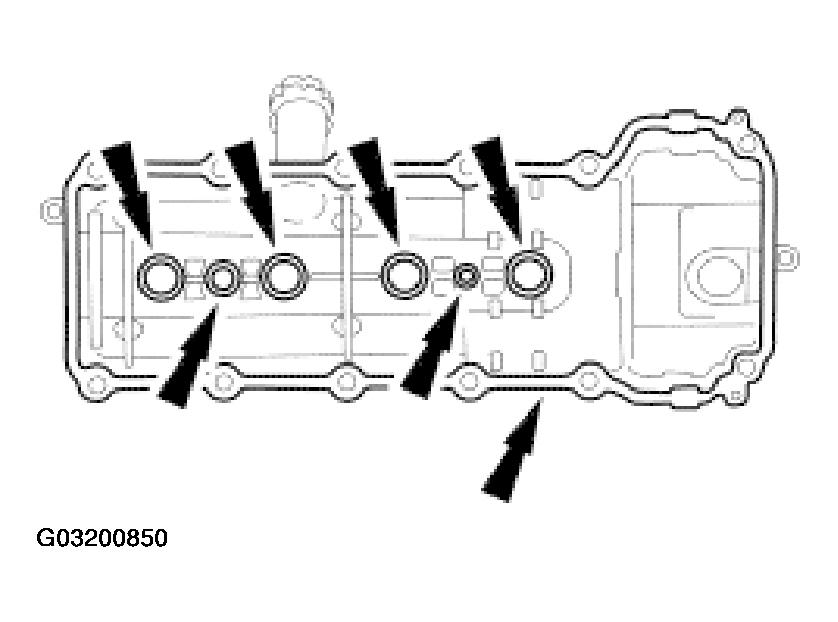

Fig 12: Installing New Gaskets
Courtesy of FORD MOTOR CO.

Item 11: LH Valve Cover Installation Note

NOTE: If the valve cover is not secured within four minutes of sealant application the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, which ever is longer. Failure to follow this procedure can cause future oil leakage.

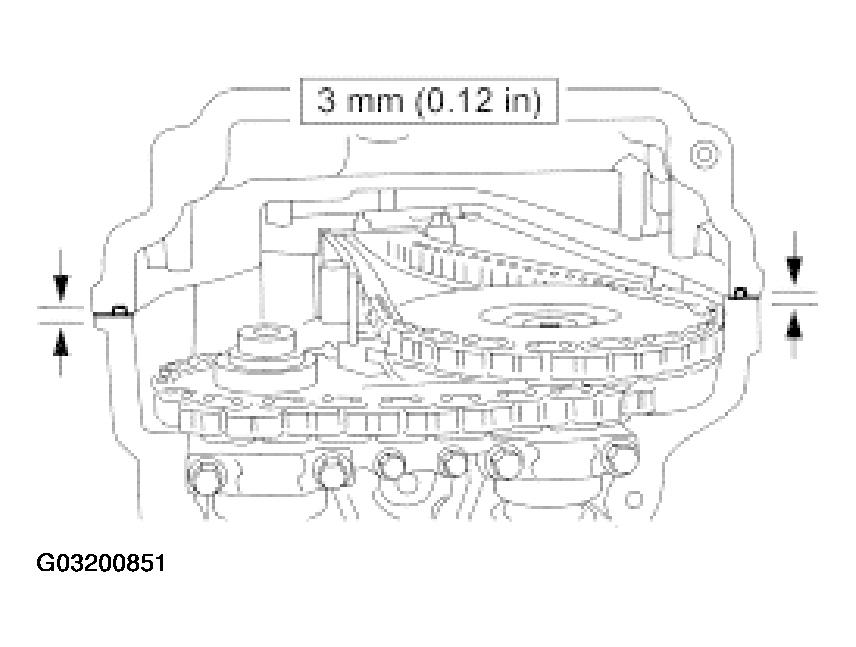

Fig 13: Applying Two Beads Of Silicone Gasket And Sealant

Courtesy of FORD MOTOR CO.

Apply two beads of silicone gasket and sealant as shown. See Fig 13.
Install the LH valve cover.
- Position the valve cover and tighten the bolts in the sequence shown.
Install the power steering pump reservoir.

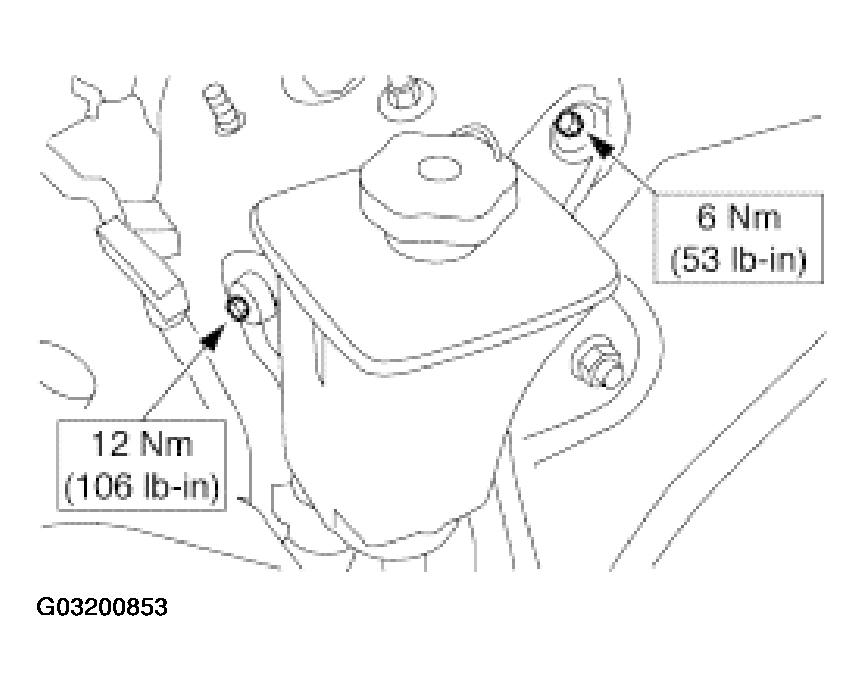

Fig 15: Installing Power Steering Pump Reservoir
Courtesy of FORD MOTOR CO.
Install the fuel hose bracket bolt.

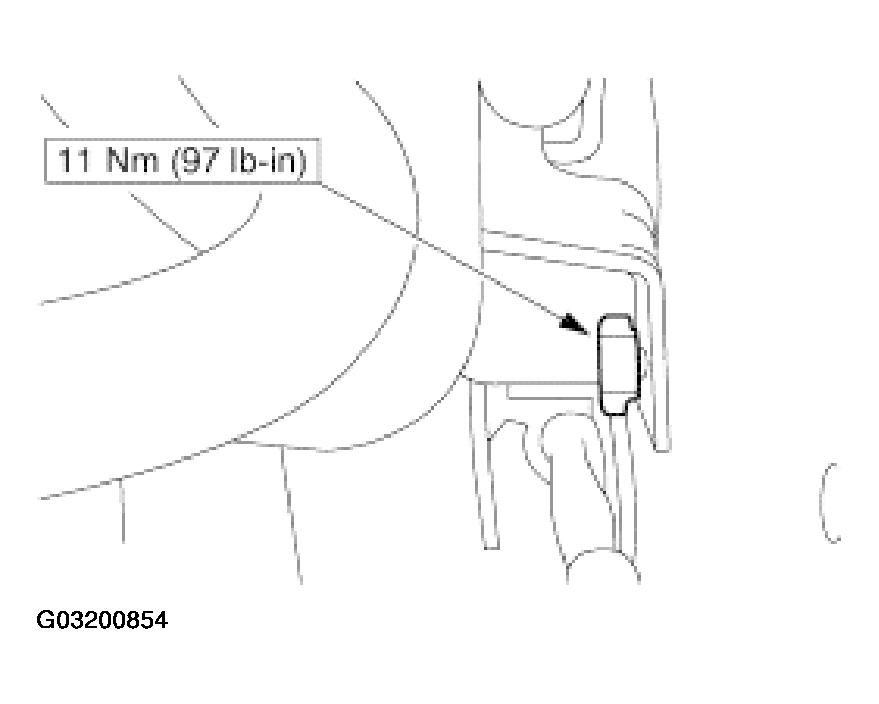

Fig 16: Installing Fuel Hose Bracket Bolt
Courtesy of FORD MOTOR CO.
Connect the crankcase ventilation tube.

Fig 17: Connecting Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.
