Removal and Installation

1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R55S .
2. Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.
   FLEXPLATE OR FLYWHEEL AND CRANKSHAFT REAR SEAL COMPONENT STEPS



   Component	Steps
   Flexplate	1-2
   Rear Crankshaft Seal	1-3

3. To install, reverse the removal procedure.

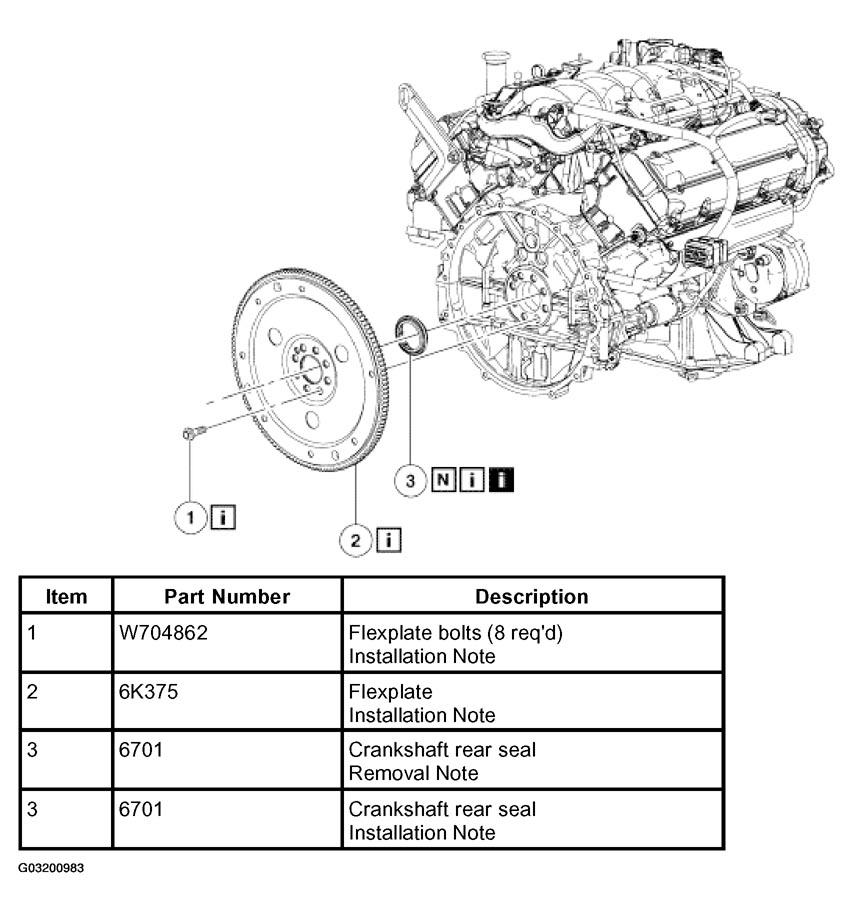

   Fig 1: Removing Flywheel And Crankshaft Rear Seal

   Courtesy of FORD MOTOR CO.

Item 3: Crankshaft Rear Seal Removal Note

1. Using the special tools, remove the crankshaft rear seal.
   • Discard the seal.

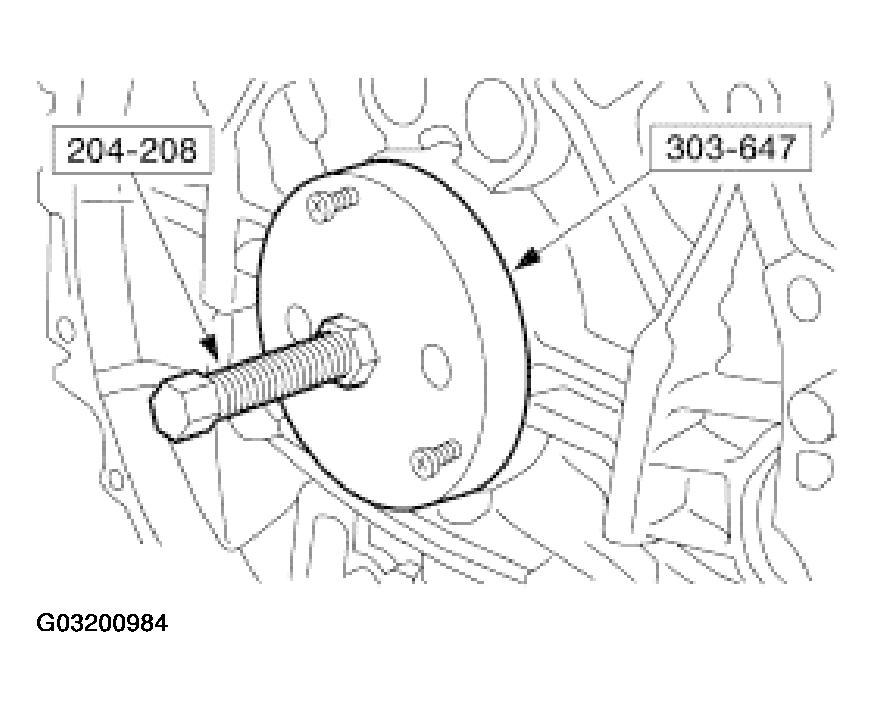

Fig 2: Using Special Tools And Removing Crankshaft Rear Seal
Courtesy of FORD MOTOR CO.

Item 3: Crankshaft Rear Seal Installation Note

CAUTION: The plastic sleeve that comes with the new crankshaft rear oil seal, protects the seal while in transit and is also used as an installation tool to prevent lip seal roll when carrying out the repair. The sleeve must be used to prevent future seal concerns.
NOTE: Lubricate the outer lips and the inner seal on the crankshaft rear oil seal with clean engine oil.

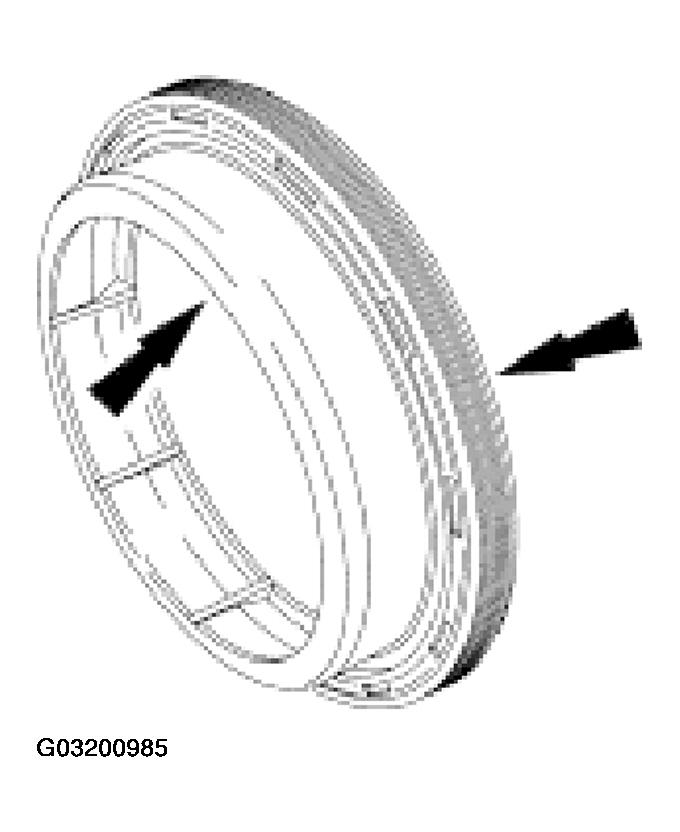

Fig 3: Positioning Rear Oil Seal With Protective Installer Onto End Of Crankshaft
Courtesy of FORD MOTOR CO.
1. Position the rear oil seal with the protective installer onto the end of the crankshaft.
2. Using the special tool, install a new crankshaft rear oil seal.

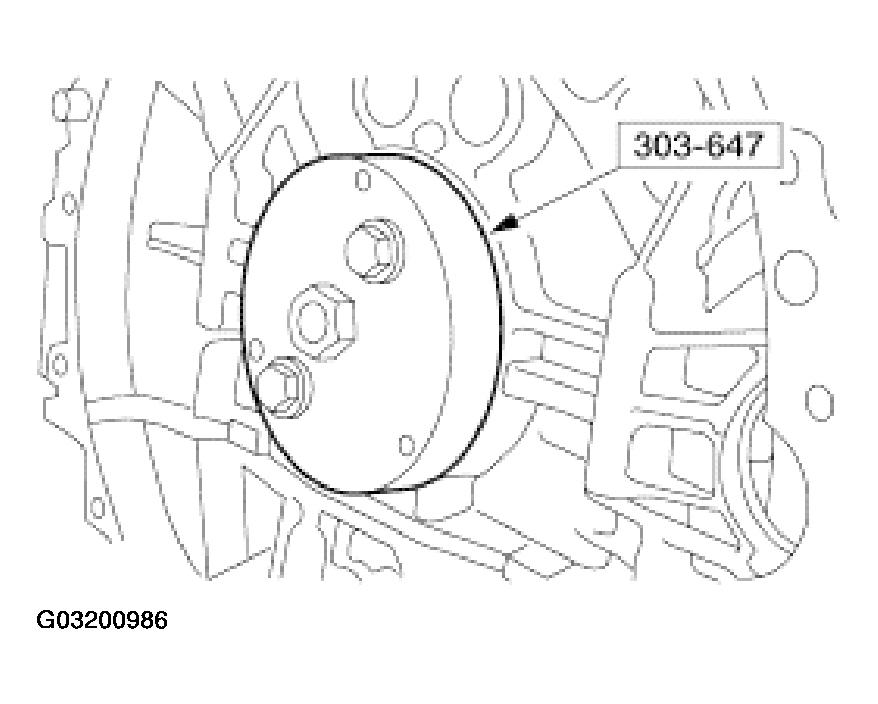

   Fig 4: Using Special Tool And Installing New Crankshaft Rear Oil Seal

   Courtesy of FORD MOTOR CO.

Items 1 and 2: Flexplate Installation Note

NOTE: The crankshaft dowel must be positioned below the outer face of the flexplate.

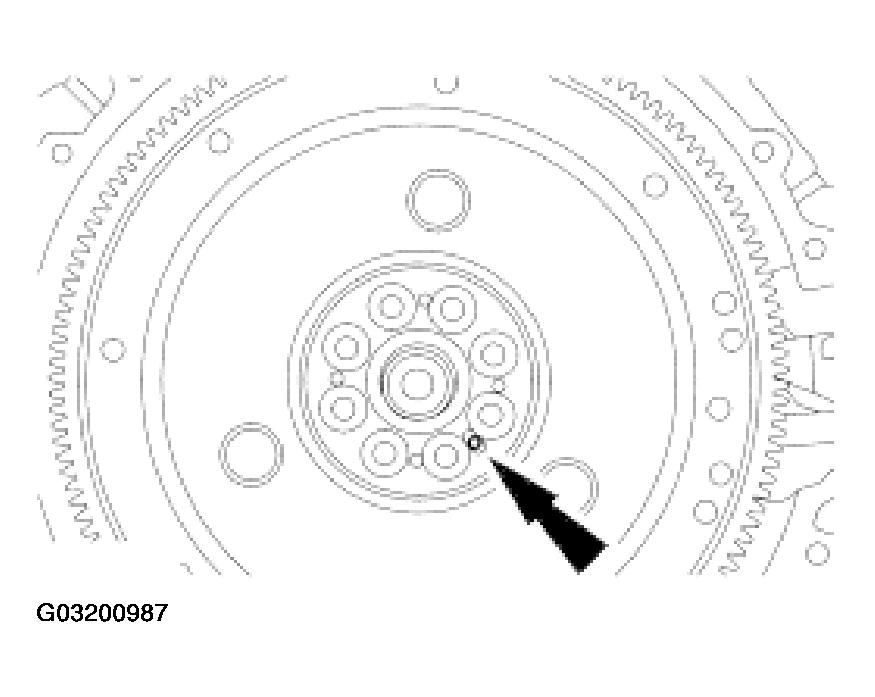

Fig 5: Installing Flexplate With Elongated Hole Over Crankshaft Dowel
Courtesy of FORD MOTOR CO.
1. Install the flexplate with the elongated hole over the crankshaft dowel.
2. Install the flexplate bolts and tighten in two stages in the sequence shown. See Fig 6.
   • Stage 1: Tighten to 15 N.m (11 lb-ft).
   • Stage 2: Tighten to 110 N.m (81 lb-ft).

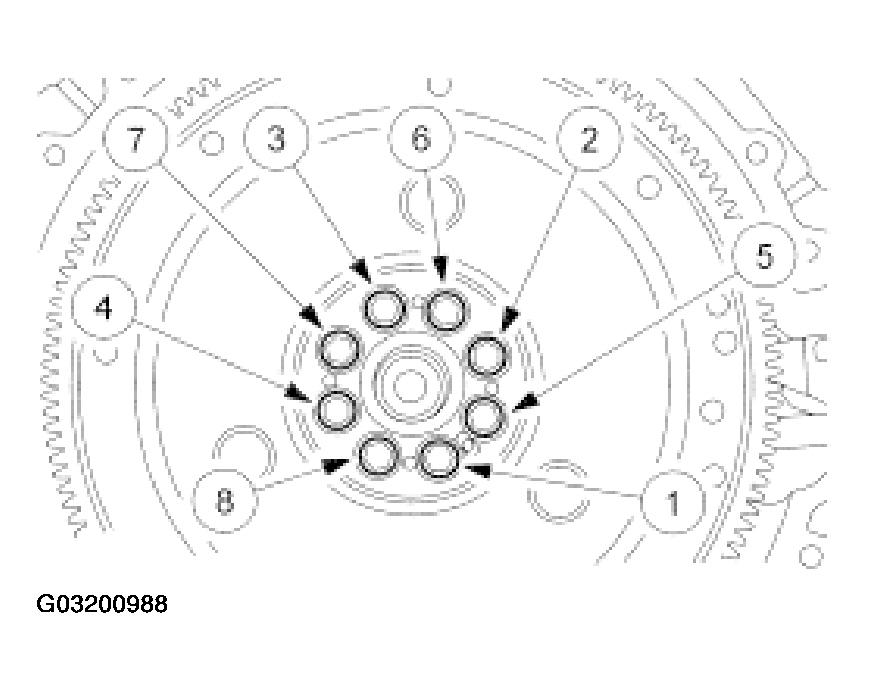

   Fig 6: Identifying Flexplate Bolts Tightening Sequence

   Courtesy of FORD MOTOR CO.
