Exhaust Manifold - RH

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the three-way catalytic (TWC) converter. For additional information, refer to EXHAUST SYSTEM .
3. Remove the screws and the lower RH splash shield.

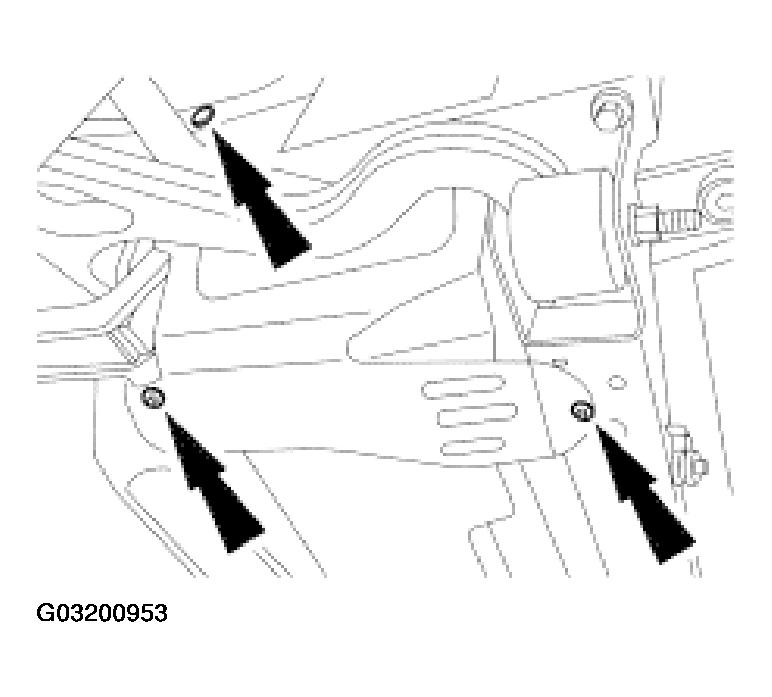

   Fig 1: Removing Lower RH Splash Shield With Screws

   Courtesy of FORD MOTOR CO.
4. Remove the fresh air inlet duct. For additional information, refer to CLIMATE CONTROL SYSTEM .
5. Remove the components in the order indicated in the following illustration and table.

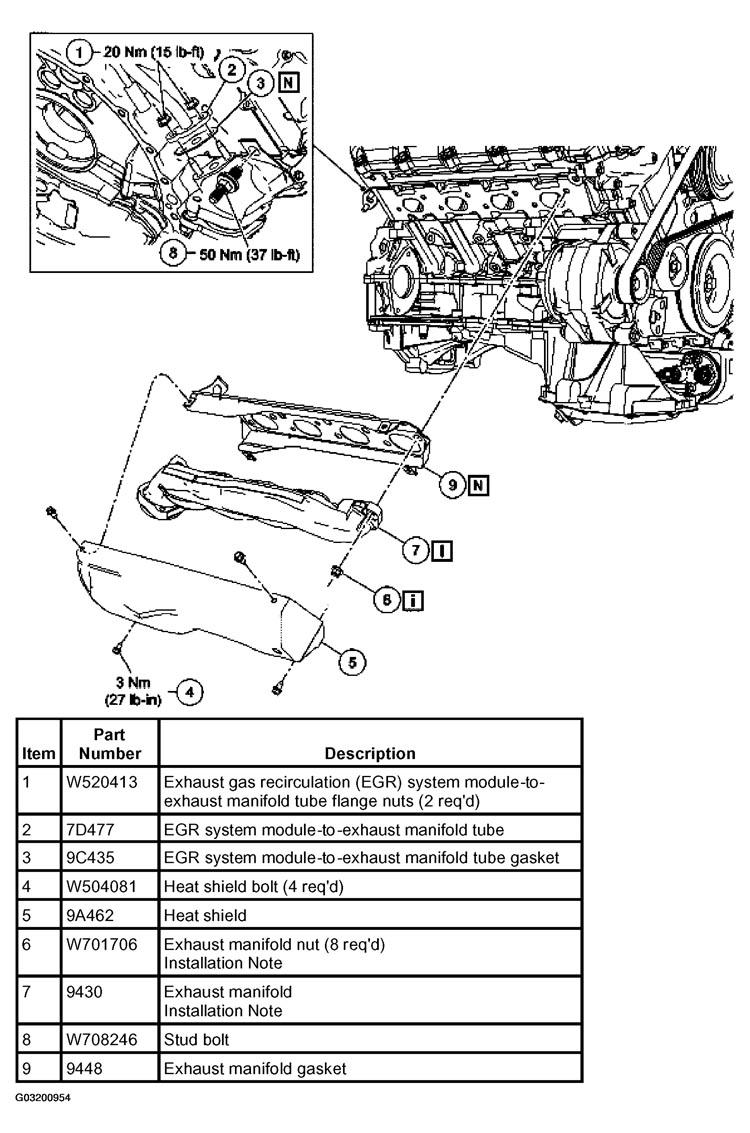

   Fig 2: Removing RH Exhaust Manifold

   Courtesy of FORD MOTOR CO.
6. To install, reverse the removal procedure.

Items 6 and 7: RH Exhaust Manifold Installation Note

1. Install the exhaust manifold gasket and stud bolt.
2. Install the exhaust manifold.
   • Install the exhaust manifold.
   • Install the exhaust manifold nuts hand tight.
   • Install the exhaust gas recirculation (EGR) system module-to-exhaust manifold tube to the exhaust manifold.
   • Tighten the eight nuts in the sequence shown.

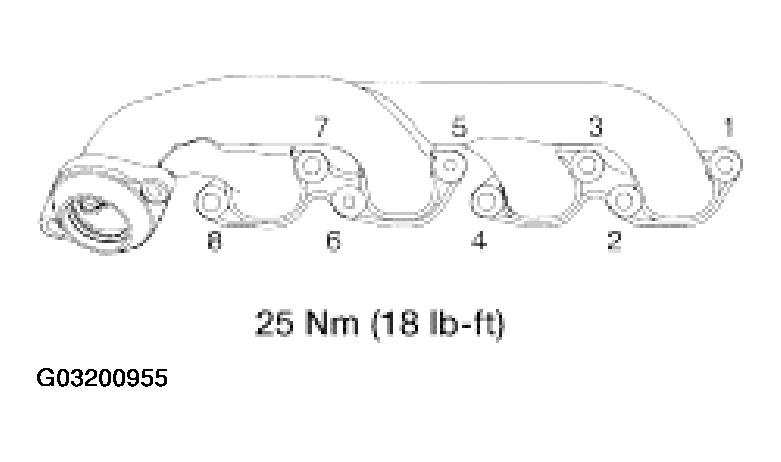

   Fig 3: Identifying RH Exhaust Manifold Bolts Tightening Sequence

   Courtesy of FORD MOTOR CO.
