Removal and Installation

1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this section.
2. Remove the components in the order indicated in the following illustration and table. See Fig 1.

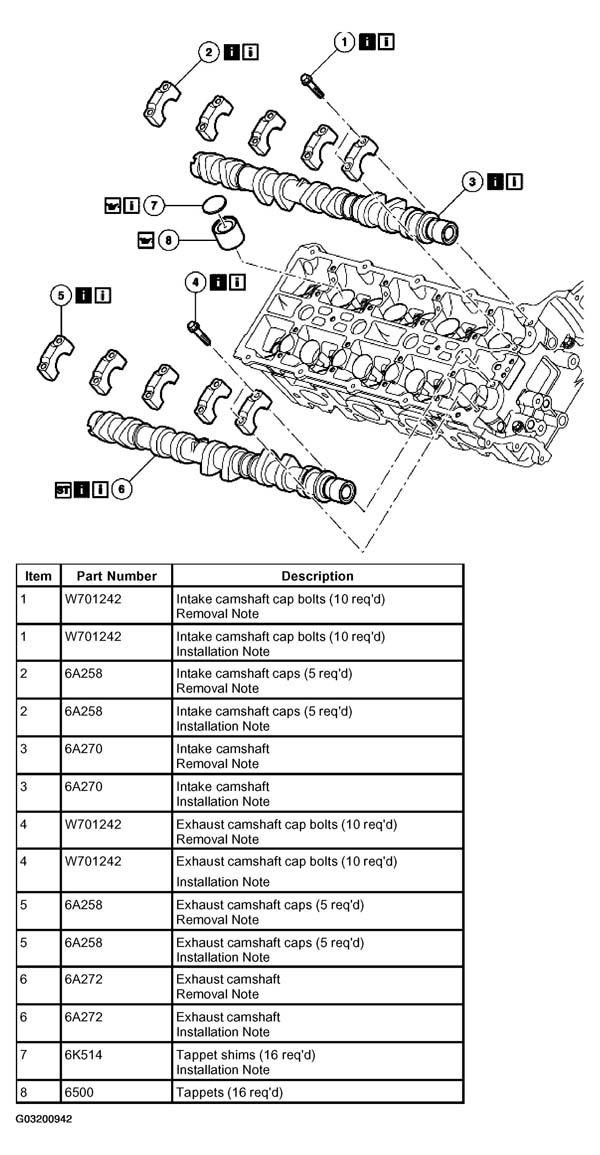

   Fig 1: Removing Intake And Exhaust Camshaft

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.

Items 1-6: Camshaft Removal Note

1. Remove the special tool.

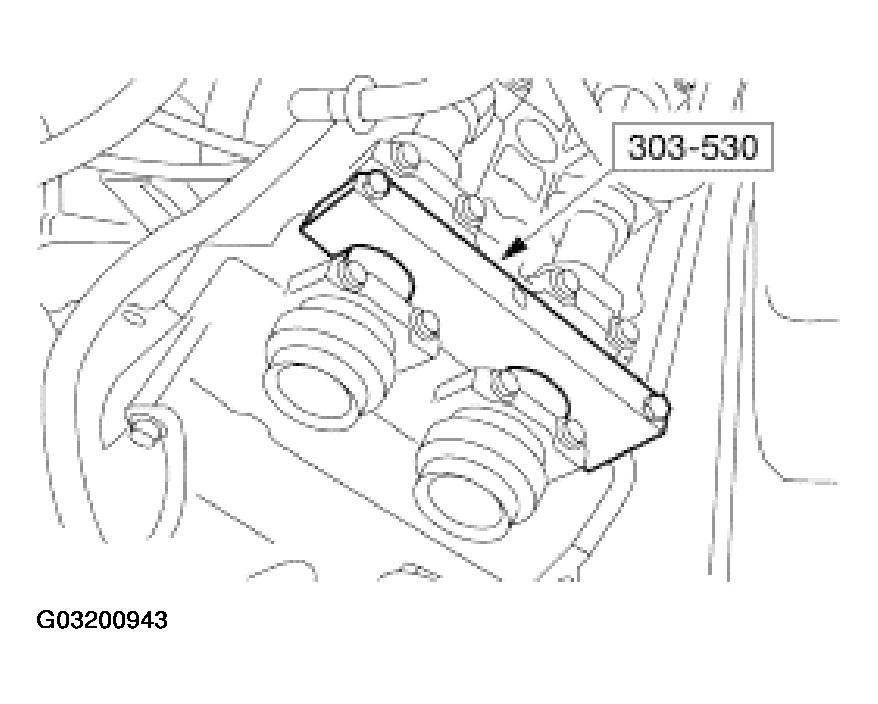

   Fig 2: Removing Special Tool

   Courtesy of FORD MOTOR CO.
CAUTION: Record the camshaft bearing cap locations. The camshaft bearing caps are positional and must be installed in their original locations and orientation or engine damage can occur.
CAUTION: Do not use any means of marking the shims other than a permanent-type marker. Any scratches or paint on the shims can result in incorrect lash adjustments and severe engine damage.
CAUTION: Record the shim and bucket tappet location. The shim and bucket tappet are positional and if installed in the incorrect location, engine damage can occur.
Fig 3: Locating RH Camshaft Bearing Caps Bolts For Removal
Courtesy of FORD MOTOR CO.
2. Remove the RH camshaft bearing caps.
   • Remove the bolts.
   • Remove the RH camshaft bearing caps.
3. Remove the RH camshafts.
   Fig 4: Removing RH Camshafts

   Courtesy of FORD MOTOR CO.
CAUTION: Record the camshaft bearing cap locations. The camshaft bearing caps are positional and must be installed in their original locations and orientation or engine damage can occur.
CAUTION: Do not use any means of marking the shims other than a permanent-type marker. Any scratches or paint on the shims can result in incorrect lash adjustments and severe engine damage.
CAUTION: Record the location of the shims and bucket tappets. The bucket tappets and shims are positional and if installed in the incorrect location, engine damage can occur.
Fig 5: Locating LH Camshaft Bearing Caps Bolts For Removal
Courtesy of FORD MOTOR CO.
4. Remove the LH camshaft bearing caps.
   • Remove the bolts.
   • Remove the LH camshaft bearing caps.
5. Remove the LH camshafts.
   Fig 6: Removing LH Camshafts

   Courtesy of FORD MOTOR CO.

Items 1-7: Camshaft Installation Note

NOTE: Apply clean engine oil to the camshaft journals, the camshaft caps and the camshaft lobes prior to installing the camshafts.

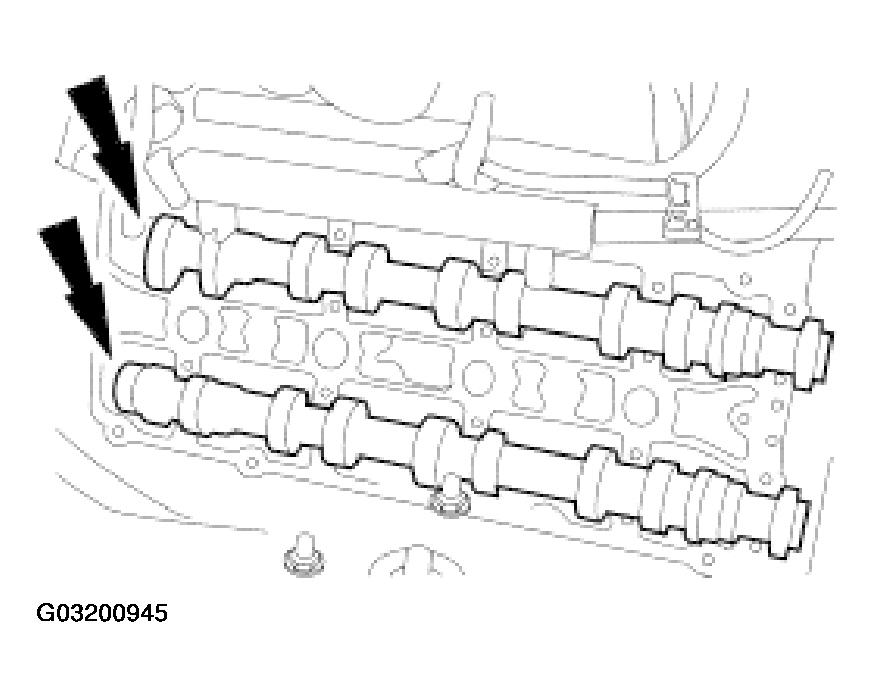

Fig 7: Positioning LH Camshafts On Camshaft Journals
Courtesy of FORD MOTOR CO.
1. Position the LH camshafts on the camshaft journals.
CAUTION: Install the camshaft bearing caps. The camshaft bearing caps are positional and must be installed in their original locations and orientation or engine damage can occur.

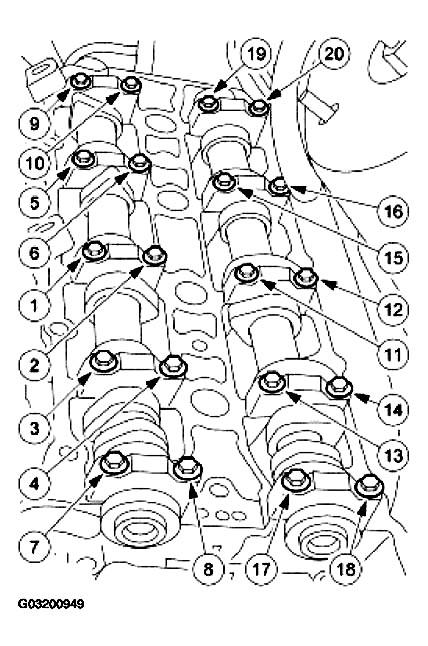

Fig 8: Identifying LH Camshaft Bearing Caps Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
2. Install the LH camshaft bearing caps.
   • Position the bearing caps.
   • Install the bearing cap bolts. Tighten the bolts in three stages in the sequence shown. See Fig 8.
     • Stage 1: Hand-tighten.
     • Stage 2: Tighten to 6 N.m (53 lb-in).
     • Stage 3: Tighten an additional 90 degrees.
NOTE: Apply clean engine oil to the camshaft journals, the camshaft caps and the camshaft lobes prior to installing the camshafts.
Fig 9: Installing RH Camshafts
Courtesy of FORD MOTOR CO.
3. Install the RH camshafts.
CAUTION: Install the camshaft bearing caps. The camshaft bearing caps are positional and must be installed in their original locations and orientation or engine damage can occur.

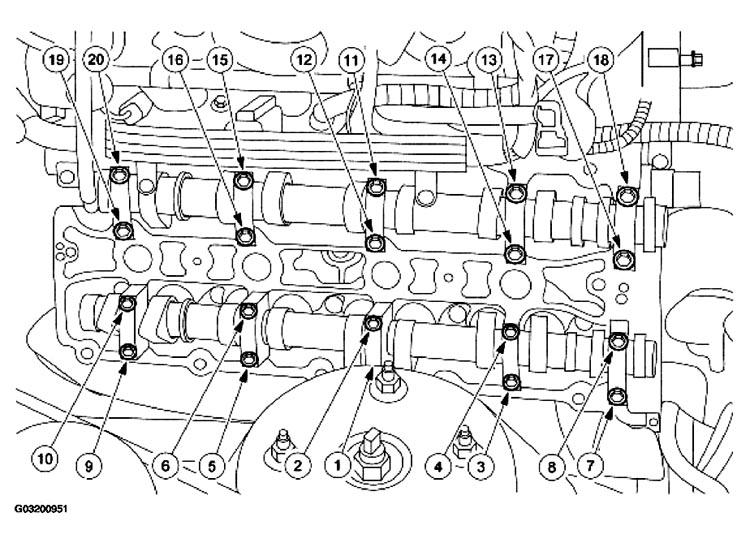

Fig 10: Identifying RH Camshaft Bearing Caps Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
4. Install the RH camshaft bearing caps.
   • Position the bearing caps.
   • Install the bolts. Tighten the bolts in three stages in the sequence shown. See Fig 10.
     • Stage 1: Hand-tighten.
     • Stage 2: Tighten to 6 N.m (53 lb-in).
     • Stage 3: Tighten an additional 90 degrees.
CAUTION: If any components are installed new, the engine must be reshimmed or engine damage can occur.

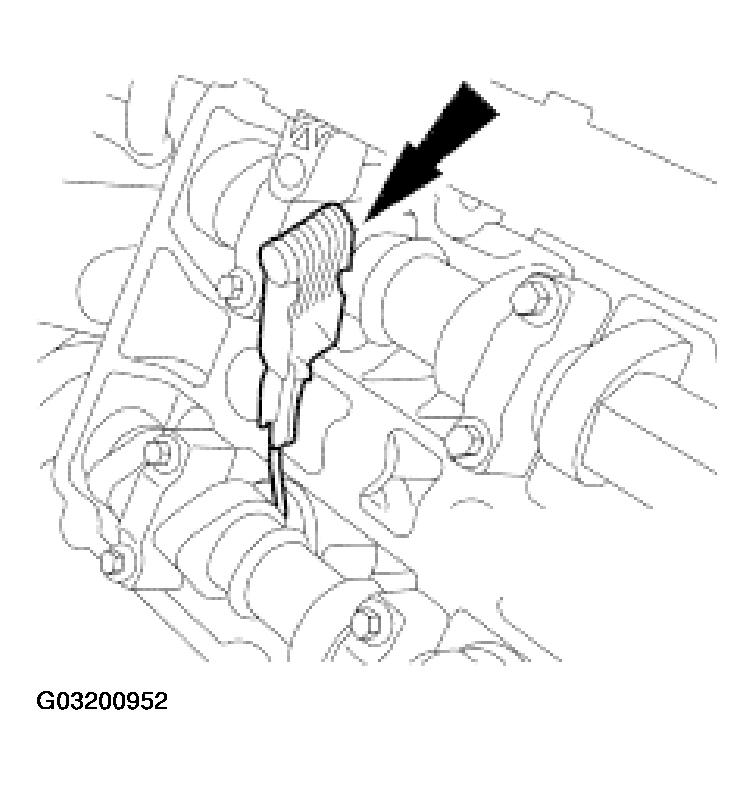

Fig 11: Using Feeler Gauge And Confirm Tappet And Shim Clearances Are Within Specification
Courtesy of FORD MOTOR CO.
5. Using a feeler gauge, confirm that the tappet and shim clearances are within specification. For additional information, refer to VALVE CLEARANCE CHECK  in this section.
6. If tappet and shim clearances are not within specification, adjust the clearance. For additional information, refer to VALVE CLEARANCE ADJUSTMENT  in this section.
7. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this section.
