Disassembly and Assembly

1. Remove the components in the order indicated in the following illustration and table. See Fig 1.

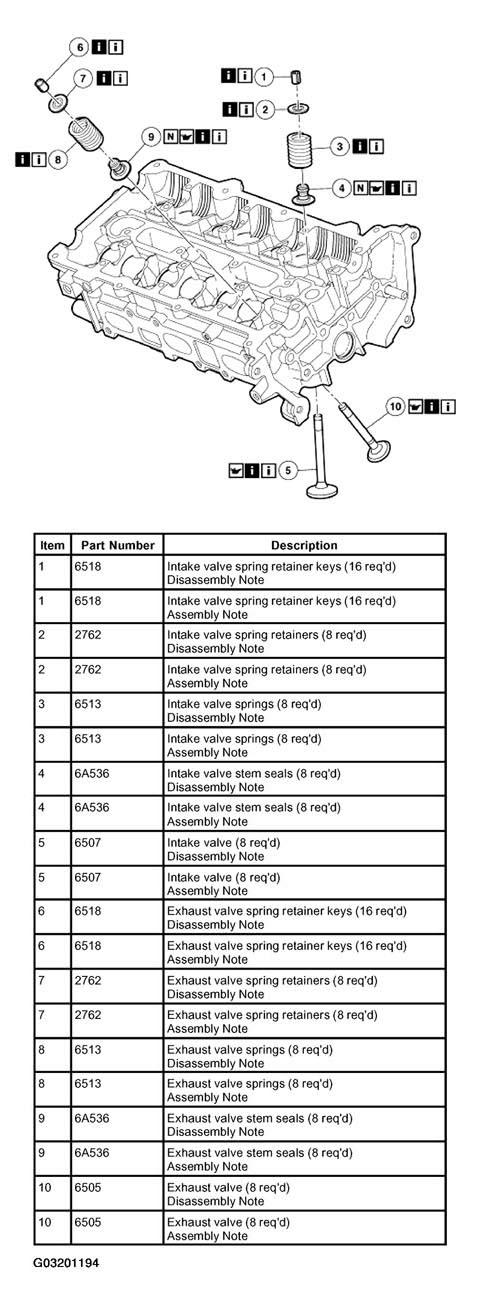

   Fig 1: Removing Order Of Cylinder Head Components

   Courtesy of FORD MOTOR CO.
2. To assemble, reverse the disassembly procedure.

Items 1-10: Retainer Keys, Retainers, Valve Spring, Valve Seals, and Valves Disassembly Note

1. Using the special tool, remove the valve spring retainer keys.

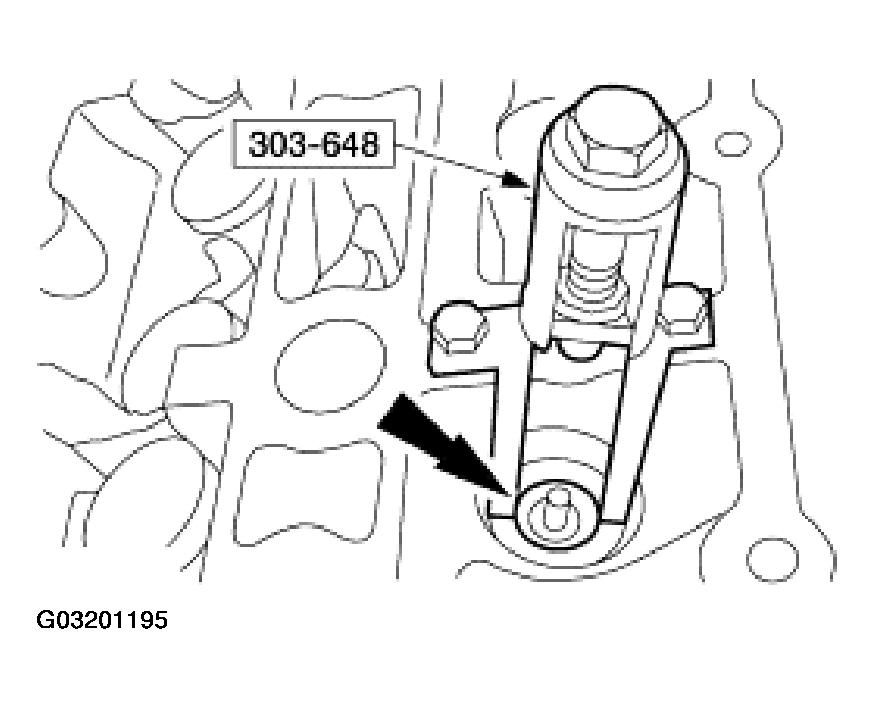

   Fig 2: Removing Valve Spring Retainer Keys Using Special Tool

   Courtesy of FORD MOTOR CO.
2. Remove the valve spring assembly.
   1. Remove the valve spring retainer.
   2. Remove the valve spring.

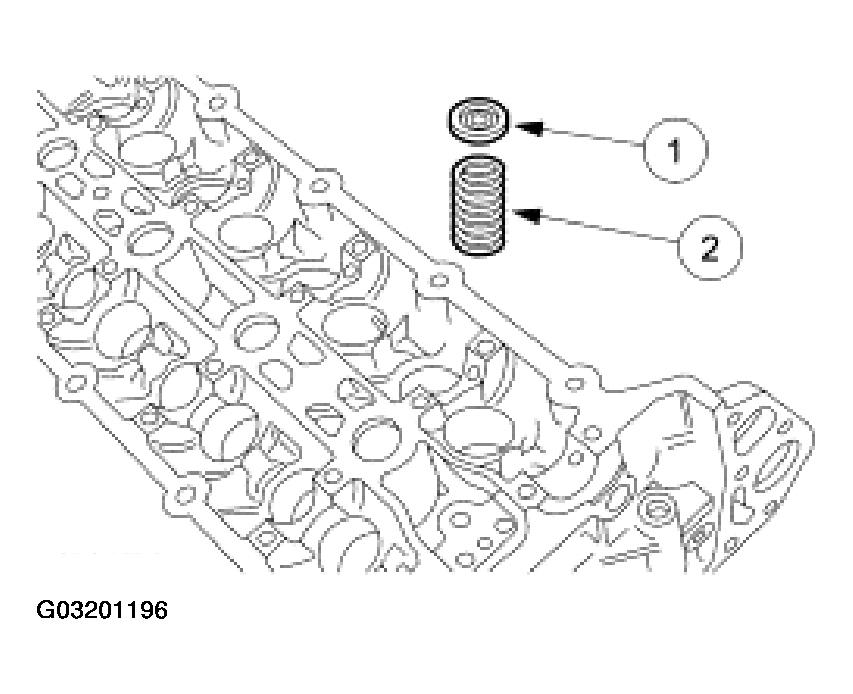

   Fig 3: Removing Valve Spring Assembly

   Courtesy of FORD MOTOR CO.
3. Remove the valve stem seal.

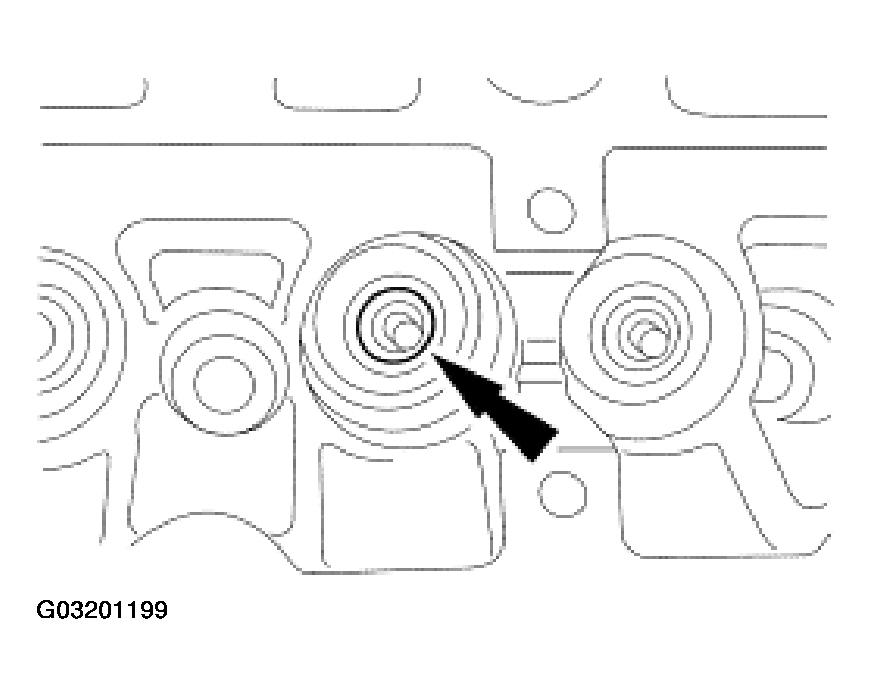

   Fig 4: Removing Valve Stem Seal

   Courtesy of FORD MOTOR CO.
4. Remove the valve.
   • For component tests for the valve, refer to ENGINE SYSTEM-GENERAL INFORMATION .
   • For component tests for the cylinder head, refer to ENGINE SYSTEM-GENERAL INFORMATION .

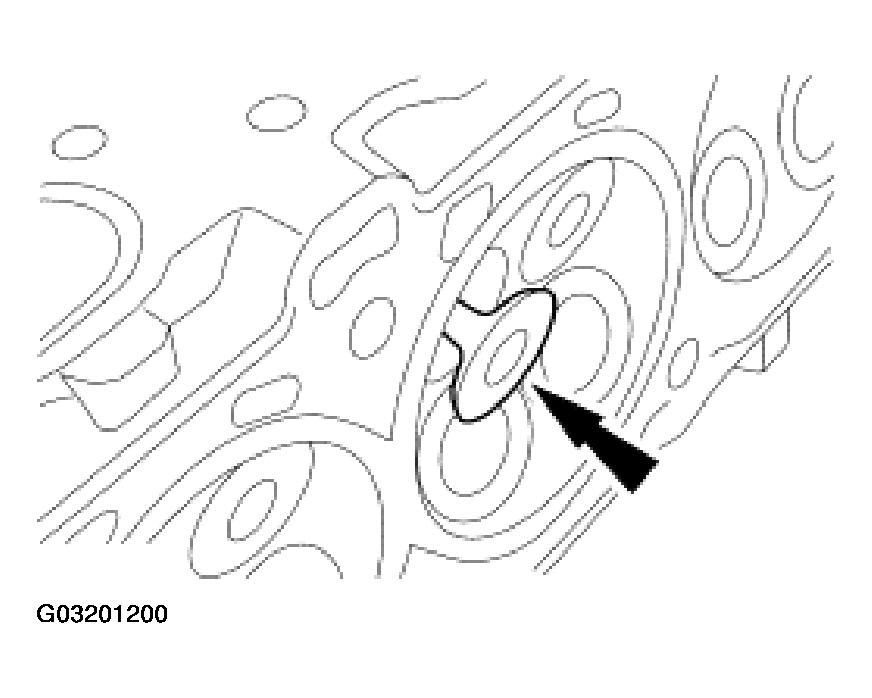

   Fig 5: Removing Valve

   Courtesy of FORD MOTOR CO.
5. Repeat the procedure until all of the valves are removed from the cylinder head.

Items 10-1: Retainer Keys, Retainers, Valve Spring, Valve Seals, and Valves Assembly Note

NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

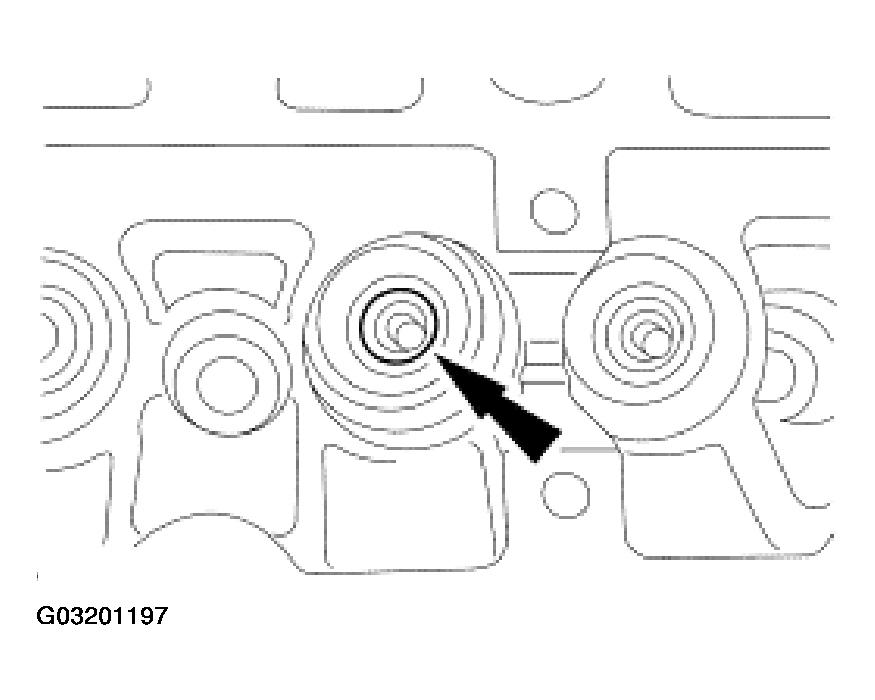

Fig 6: Installing Valve Stem Seal
Courtesy of FORD MOTOR CO.
1. Install the valve stem seal.
NOTE: Lubricate the valve stem with clean engine oil prior to installation.
Fig 7: Installing Valve
Courtesy of FORD MOTOR CO.
2. Install the valve.
3. Using the special tool, install the valve spring, retainer and retainer keys.
   Fig 8: Installing Valve Spring, Retainer And Retainer Keys Using Special Tool

   Courtesy of FORD MOTOR CO.
4. Repeat the procedure until all of the valves are installed into the cylinder head.
