Removal and Installation

1. Disconnect the battery ground cable.
2. Remove the RH ignition coils. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) .
3. Remove the components in the order indicated in the following illustration and table. See Fig 1.

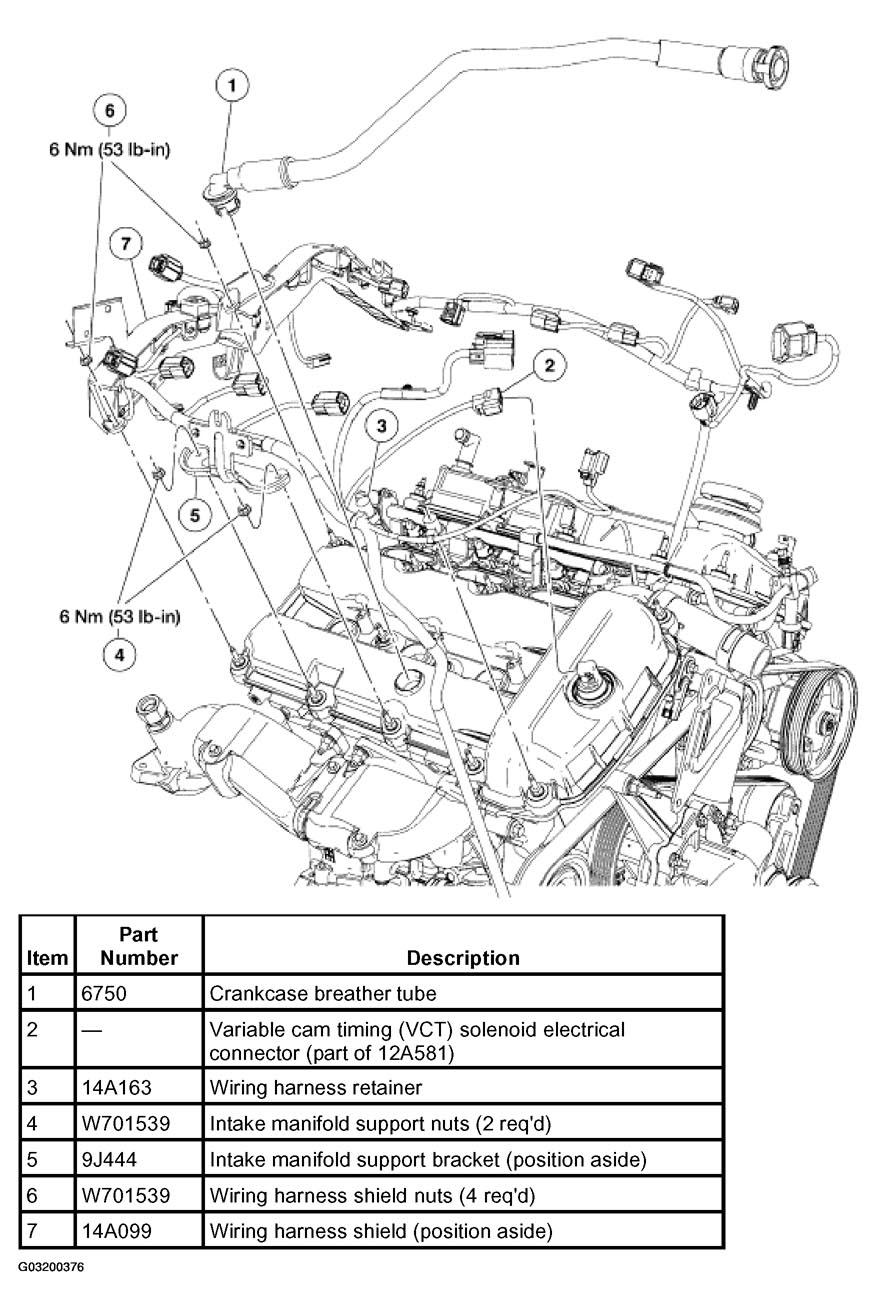

   Fig 1: Removing Wire Harness Shield

   Courtesy of FORD MOTOR CO.
4. Remove the components in the order indicated in the following illustration and table. See Fig 2.

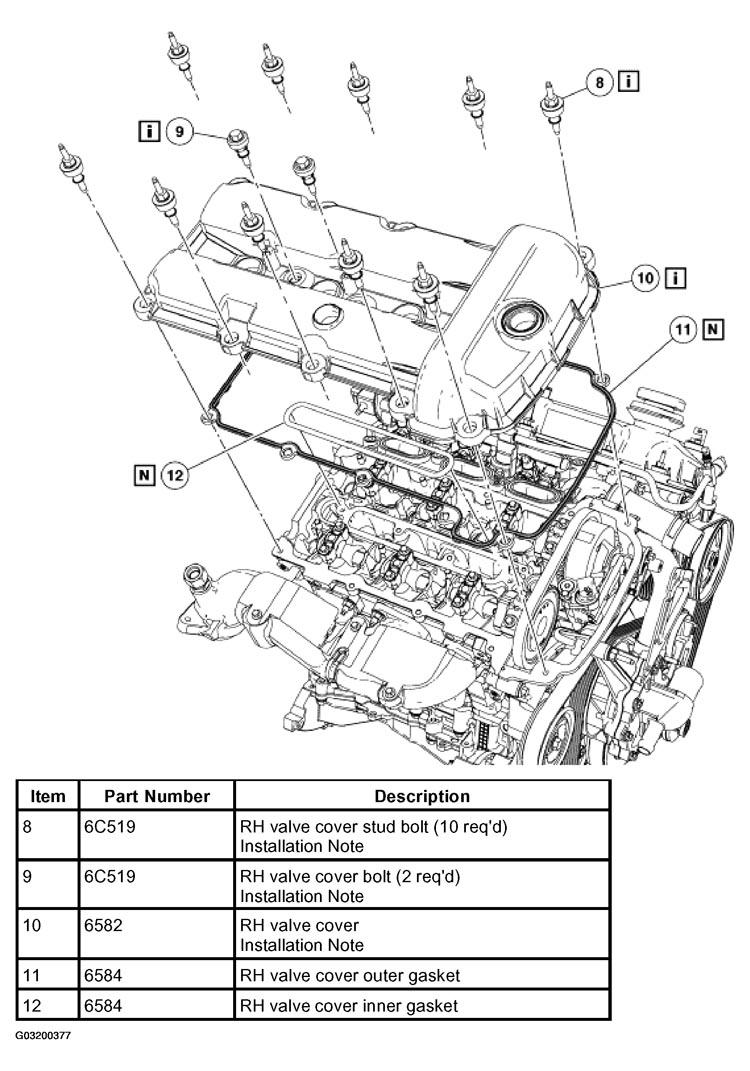

   Fig 2: Removing RH Valve Cover

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.

Items 8, 9, and 10: Valve Cover, Valve Cover Stud Bolts and Valve Cover Bolts Installation Note

1. Clean the cylinder head-to-valve cover sealing surface.
NOTE: The valve cover must be installed within four minutes of sealant application.

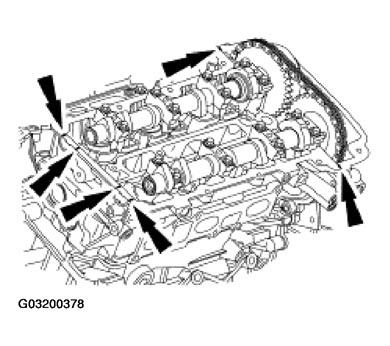

Fig 3: Locating Cylinder Head Half-Round Surface
Courtesy of FORD MOTOR CO.
2. Apply an 8 mm (0.32 in) bead of silicone gasket and sealant to the cylinder head half-round surface and to the front cover-to-cylinder head joint face.
NOTE: Locations 1 and 2 are bolts. Locations 3-12 are stud bolts.

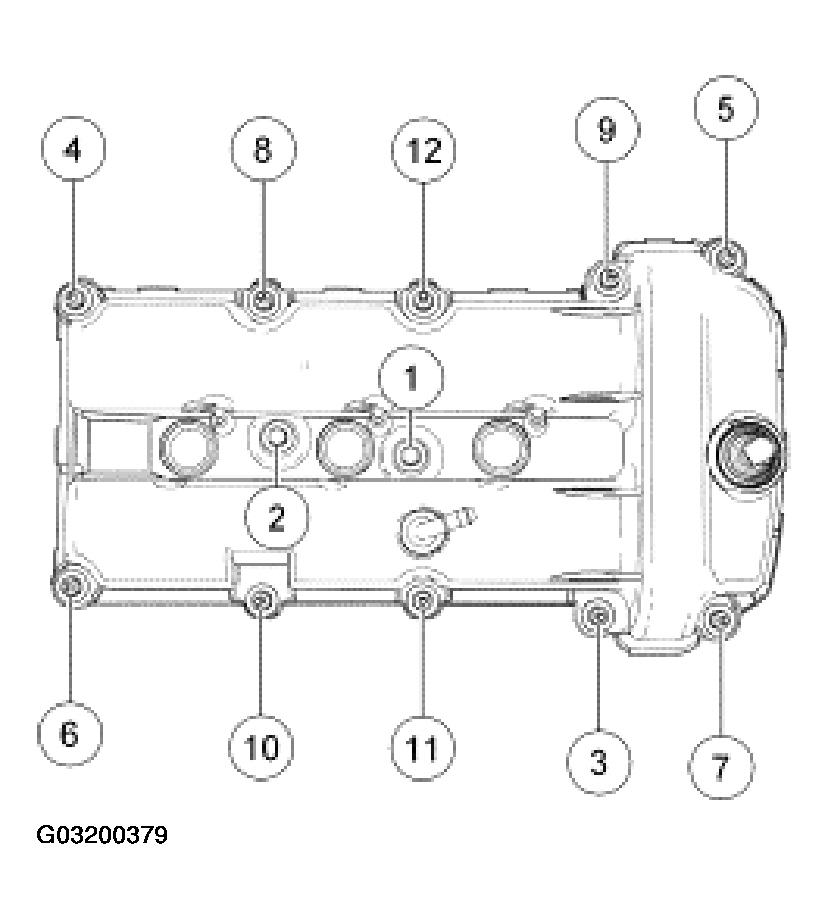

Fig 4: RH Valve Cover Tightening Sequence
Courtesy of FORD MOTOR CO.
3. Install the RH valve cover, and tighten the bolts and stud bolts in the sequence shown. See Fig 4.
