Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position it on a hoist.
  2. Disconnect the battery ground cable.
  3. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  4. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) .
  5. Remove the cowl vent screen. For additional information, refer to EXTERIOR TRIM .
  6. Illustration 1 of 4. Remove the components in the order indicated in the following illustration and table.

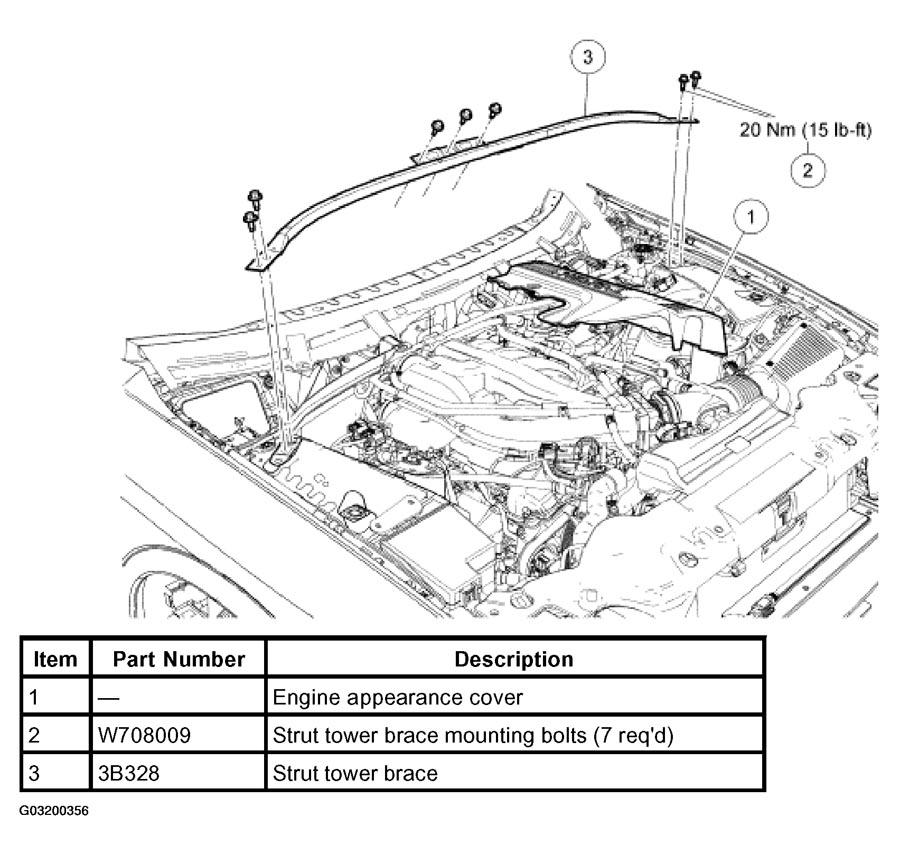

    Fig 1: Locating Strut Tower Brace
    G03200356Courtesy of FORD MOTOR CO.
  7. Illustration 2 of 4. Remove the components in the order indicated in the following illustration and table.

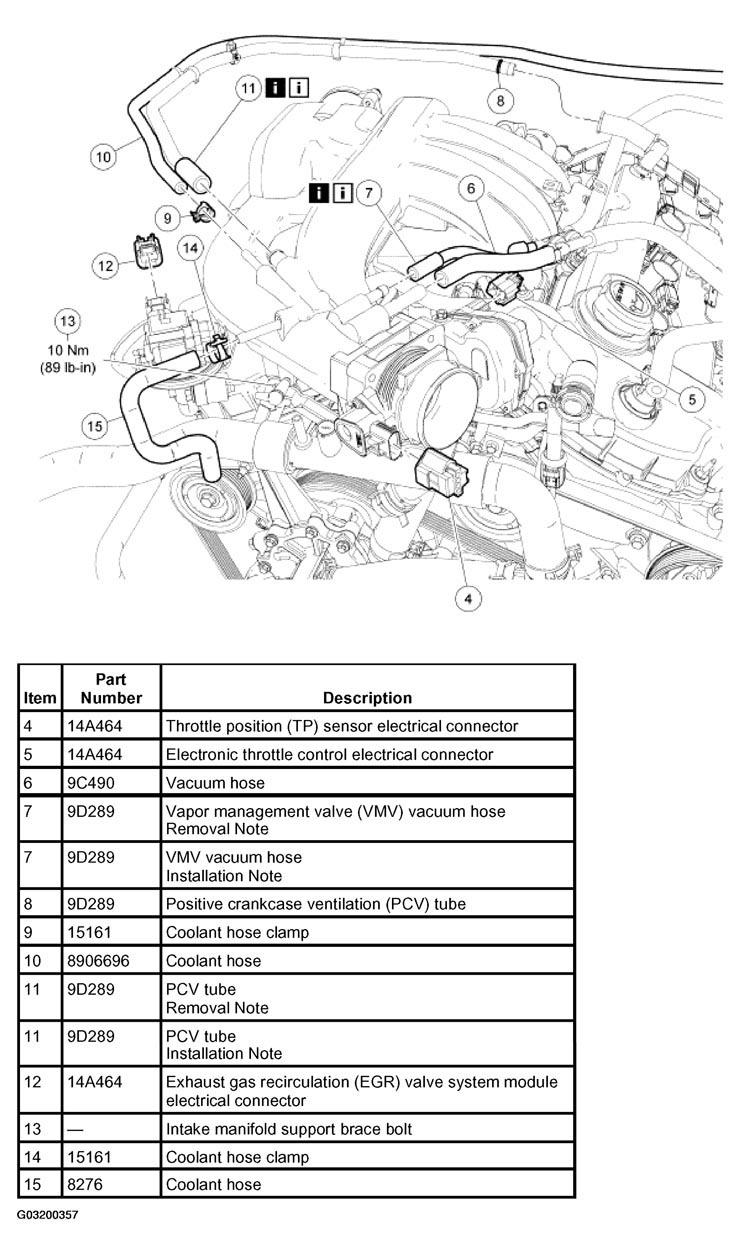

    Fig 2: Locating Vacuum Hose
    G03200357Courtesy of FORD MOTOR CO.
  8. Illustration 3 of 4. Remove the components in the order indicated in the following illustration and table.

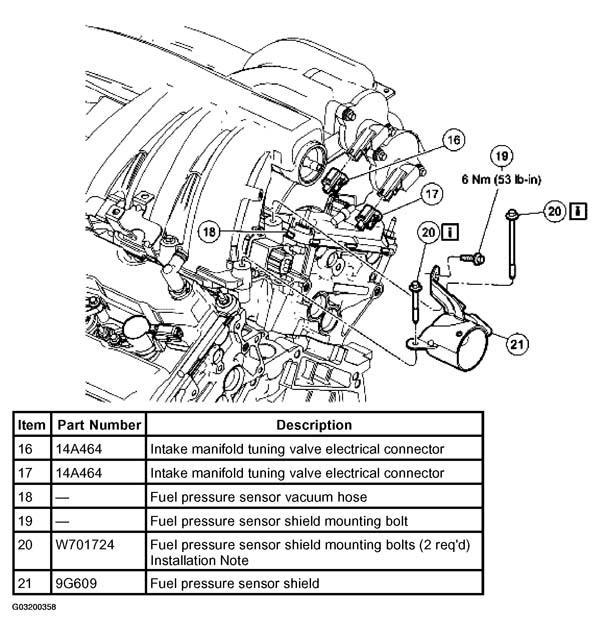

    Fig 3: Removing Fuel Pressure Sensor Shield
    G03200358Courtesy of FORD MOTOR CO.
  9. Illustration 4 of 4. Remove the components in the order indicated in the following illustration and table.

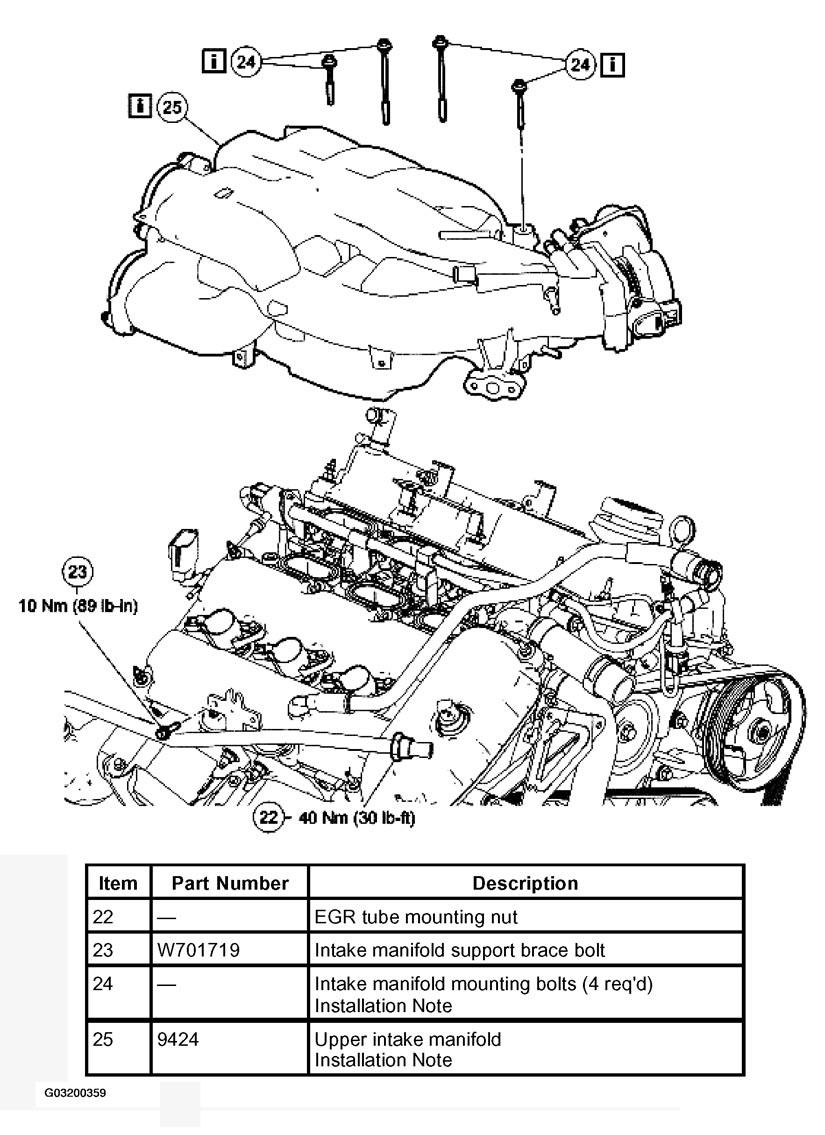

    Fig 4: Removing Upper Intake Manifold
    G03200359Courtesy of FORD MOTOR CO.

Item 7: Vacuum Hose Removal Note

  1. Remove the vacuum hoses from the mounting bracket.

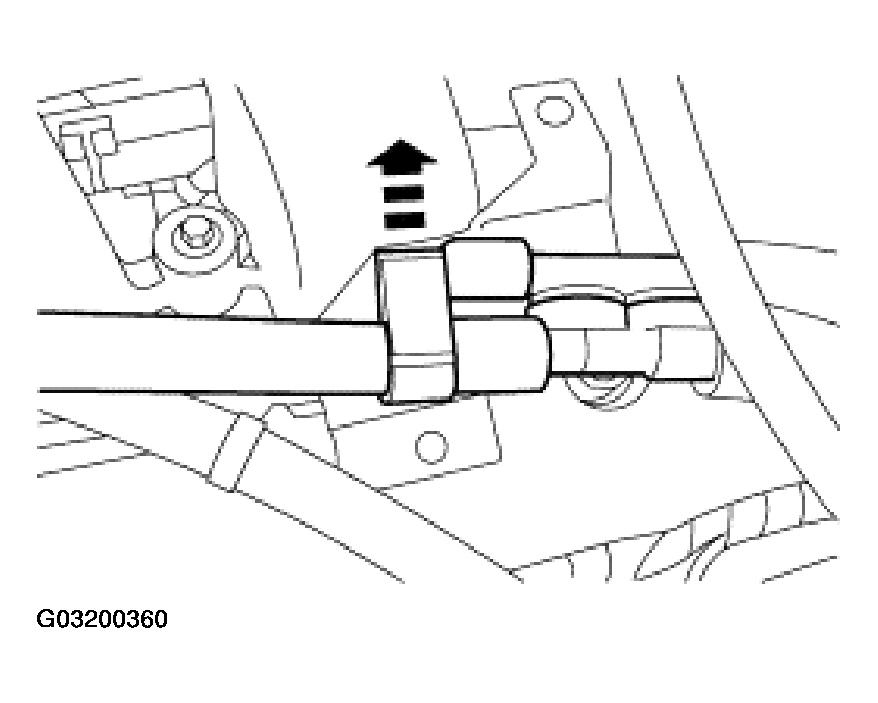

    Fig 5: Removing Vacuum Hoses From Mounting Bracket
    G03200360Courtesy of FORD MOTOR CO.

Item 11: PCV Tube Removal Note

  1. Position the PCV tube and coolant hose aside.

Items 24 and 25: Upper Intake Manifold and Mounting Bolts Installation Note

  1. Inspect the gaskets. Install new gaskets if necessary.
  2. Position the upper intake manifold and install the bolts hand-tight.

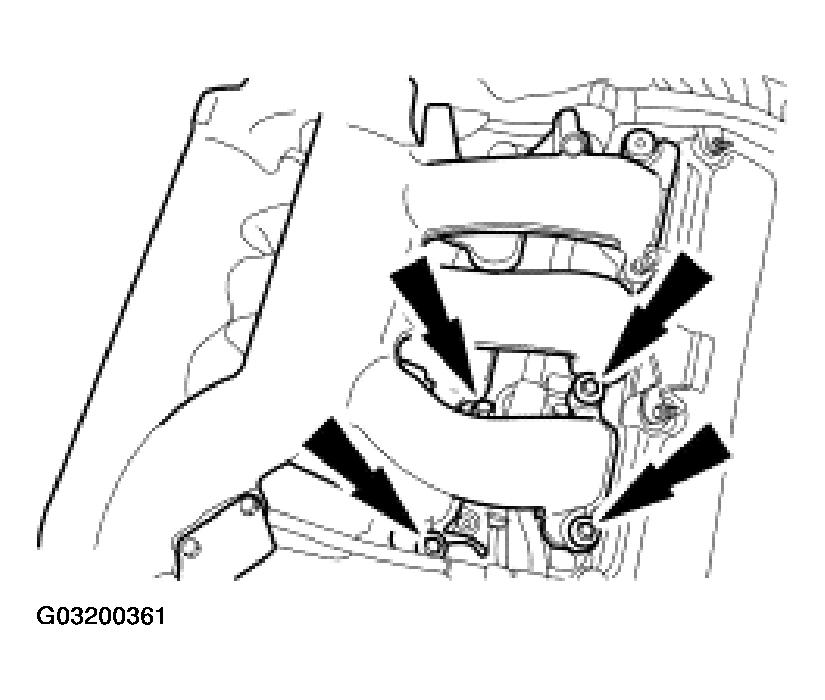

    Fig 6: Installing New Gaskets
    G03200361Courtesy of FORD MOTOR CO.

Item 20: Fuel Pressure Sensor Shield Mounting Bolts Installation Note

  1. Install the fuel pressure sensor shield mounting bolts hand-tight.
    • Tighten the upper intake manifold bolts in the sequence shown.

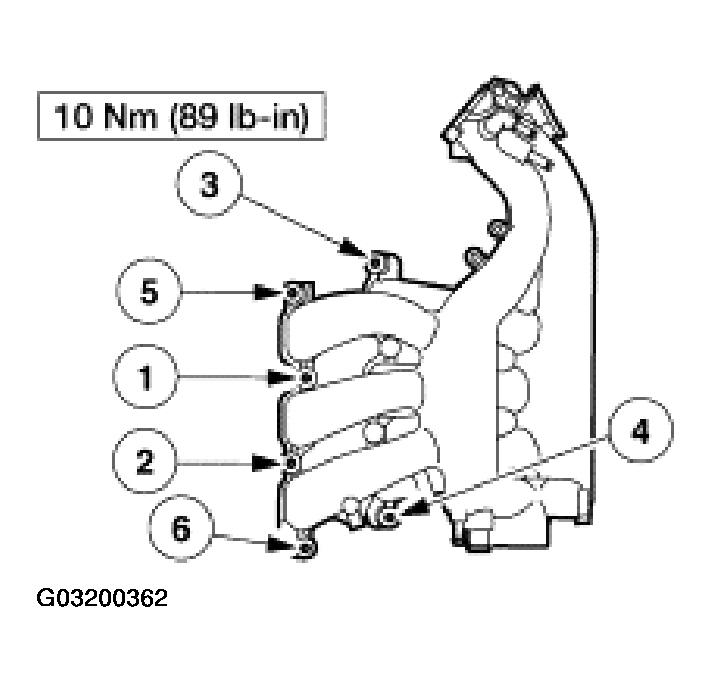

    Fig 7: Installing Fuel Pressure Sensor Shield
    G03200362Courtesy of FORD MOTOR CO.

Item 11: PCV Tube Installation Note

  1. Position the PCV tube and coolant hose to the intake manifold.

Item 7: Vacuum Hose Installation Note

  1. Clip the vacuum hoses into the mounting bracket.

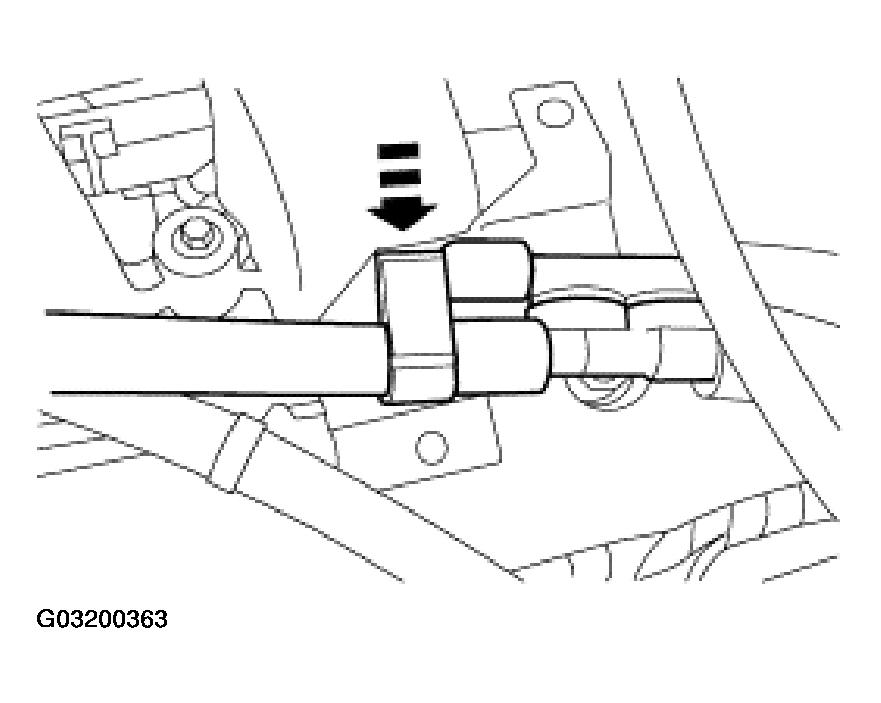

    Fig 8: Installing Vacuum Hoses Into Mounting Bracket
    G03200363Courtesy of FORD MOTOR CO.
