Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration and table.
  2. To install, reverse the removal procedure.

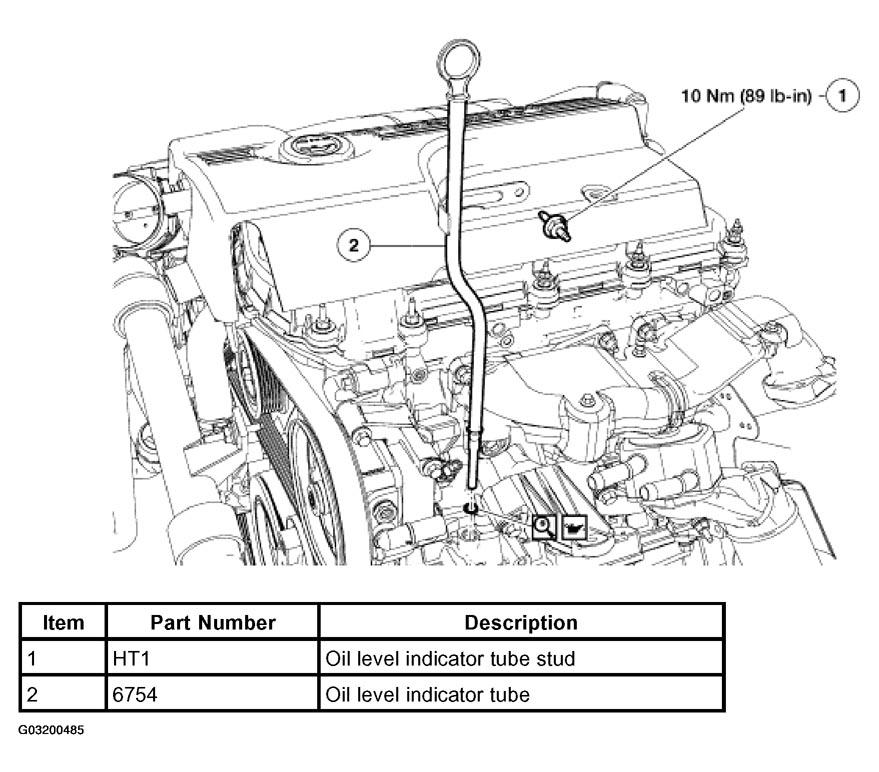

    Fig 1: Removing Oil Level Indicator And Tube
    G03200485Courtesy of FORD MOTOR CO.
