Removal and Installation

1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
2. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM .
3. Remove the components in the order indicated in the following illustration and table.
4. To install, reverse the removal procedure.

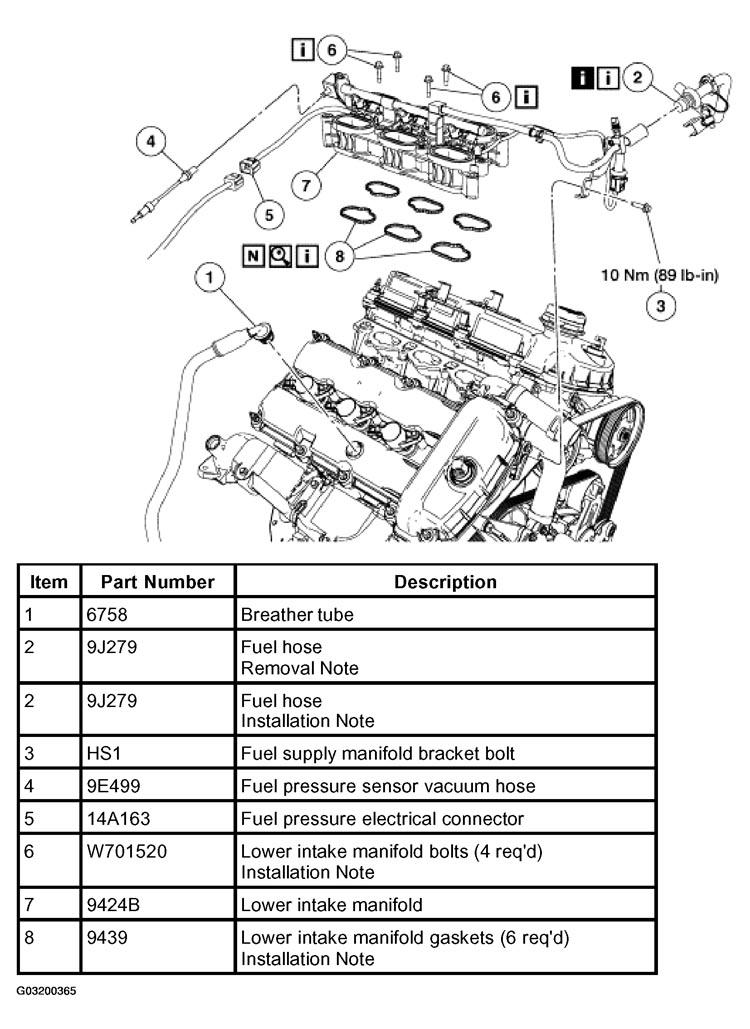

   Fig 1: Removing Upper Intake Manifold

   Courtesy of FORD MOTOR CO.

Item 2: Fuel Hose Removal Note

1. Remove the clip.

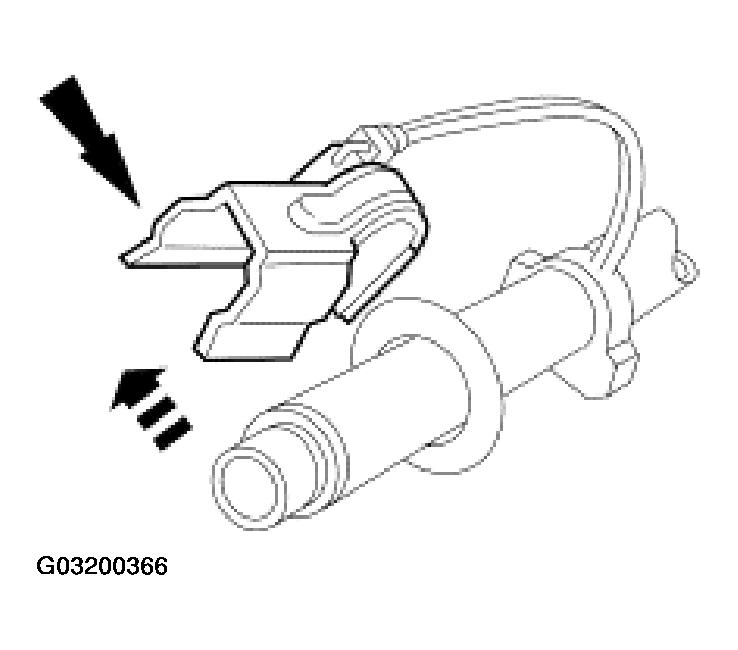

   Fig 2: Removing Clip

   Courtesy of FORD MOTOR CO.
2. Install the special tool.

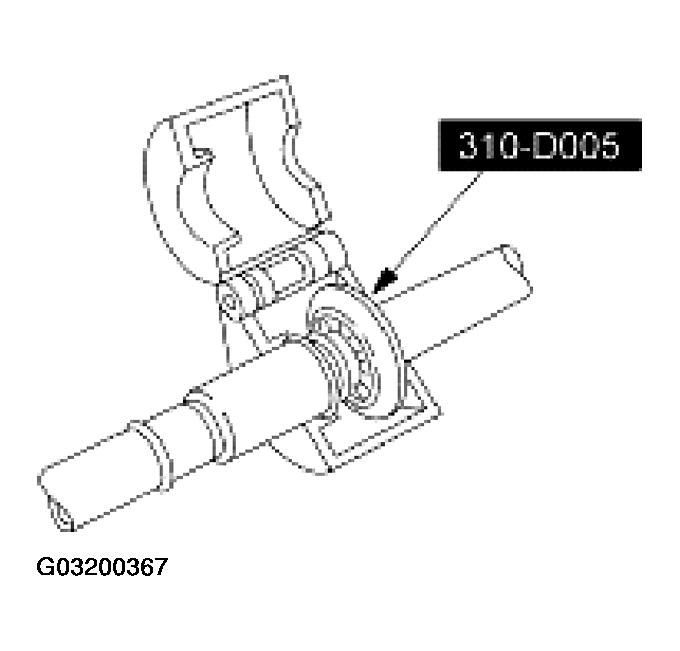

   Fig 3: Installing Special Tool

   Courtesy of FORD MOTOR CO.
3. Close the special tool and push it into the open side of the cage.

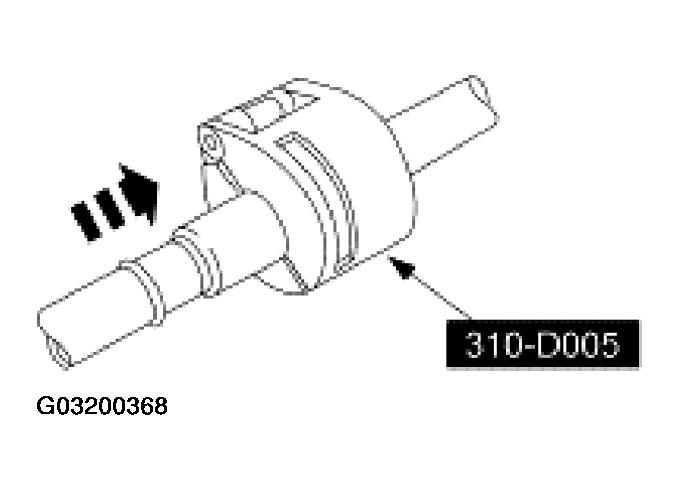

   Fig 4: Closing Special Tool

   Courtesy of FORD MOTOR CO.
4. Separate the fitting and remove the special tool.

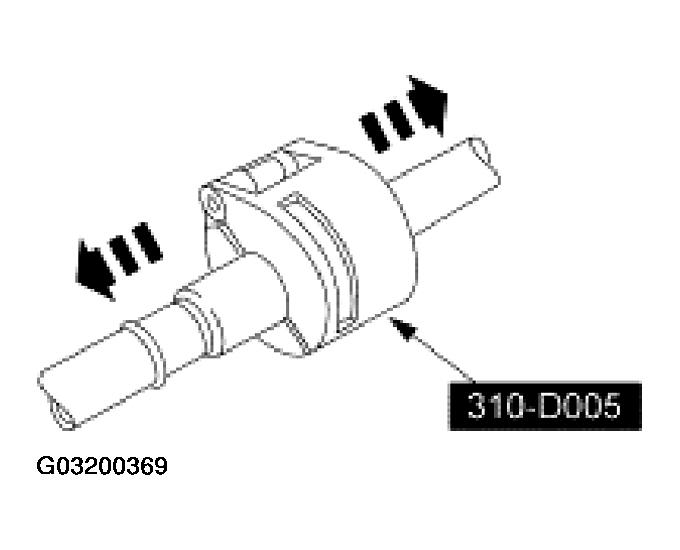

   Fig 5: Removing Special Tool

   Courtesy of FORD MOTOR CO.

Item 8: Lower Intake Manifold Gaskets Installation Note

1. Clean and inspect the lower intake manifold gaskets. Install new gaskets if necessary.

Item 6: Lower Intake Manifold Bolts Installation Note

1. Tighten the lower intake manifold bolts in the sequence shown.

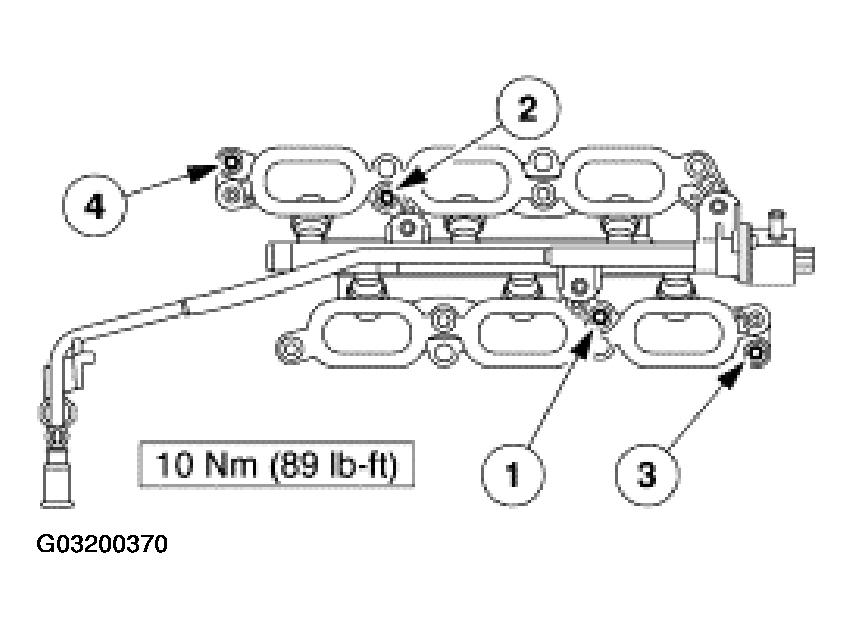

   Fig 6: Tightening Lower Intake Manifold

   Courtesy of FORD MOTOR CO.

Item 2: Fuel Hose Installation Note

1. Connect the spring lock coupling.
   • Clean and inspect both coupling ends.
   • Lubricate the O-rings with clean engine oil.
   • Connect the coupling.
   • Pull on the coupling to make sure it is fully engaged.
   • Install the clip.

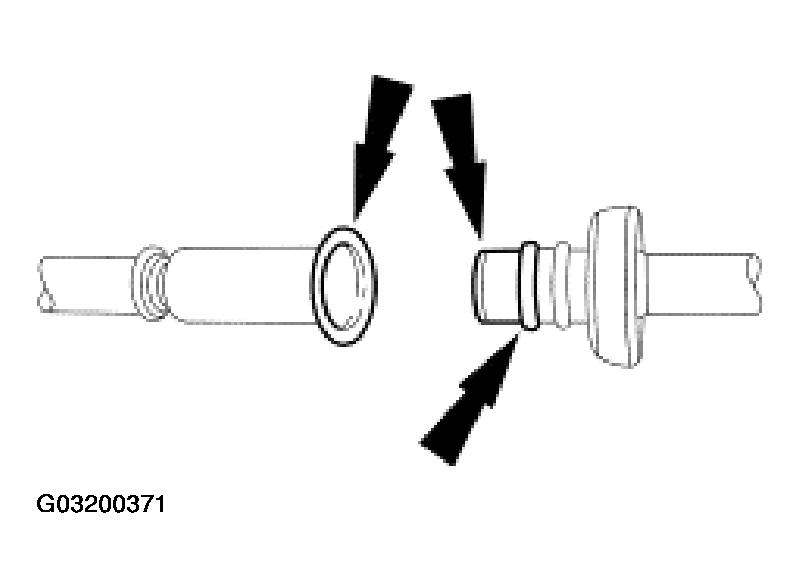

   Fig 7: Connecting Spring Lock Coupling

   Courtesy of FORD MOTOR CO.
